Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Steering Gear (4WS)

5 part groups · 1 illustrations

Illustrations

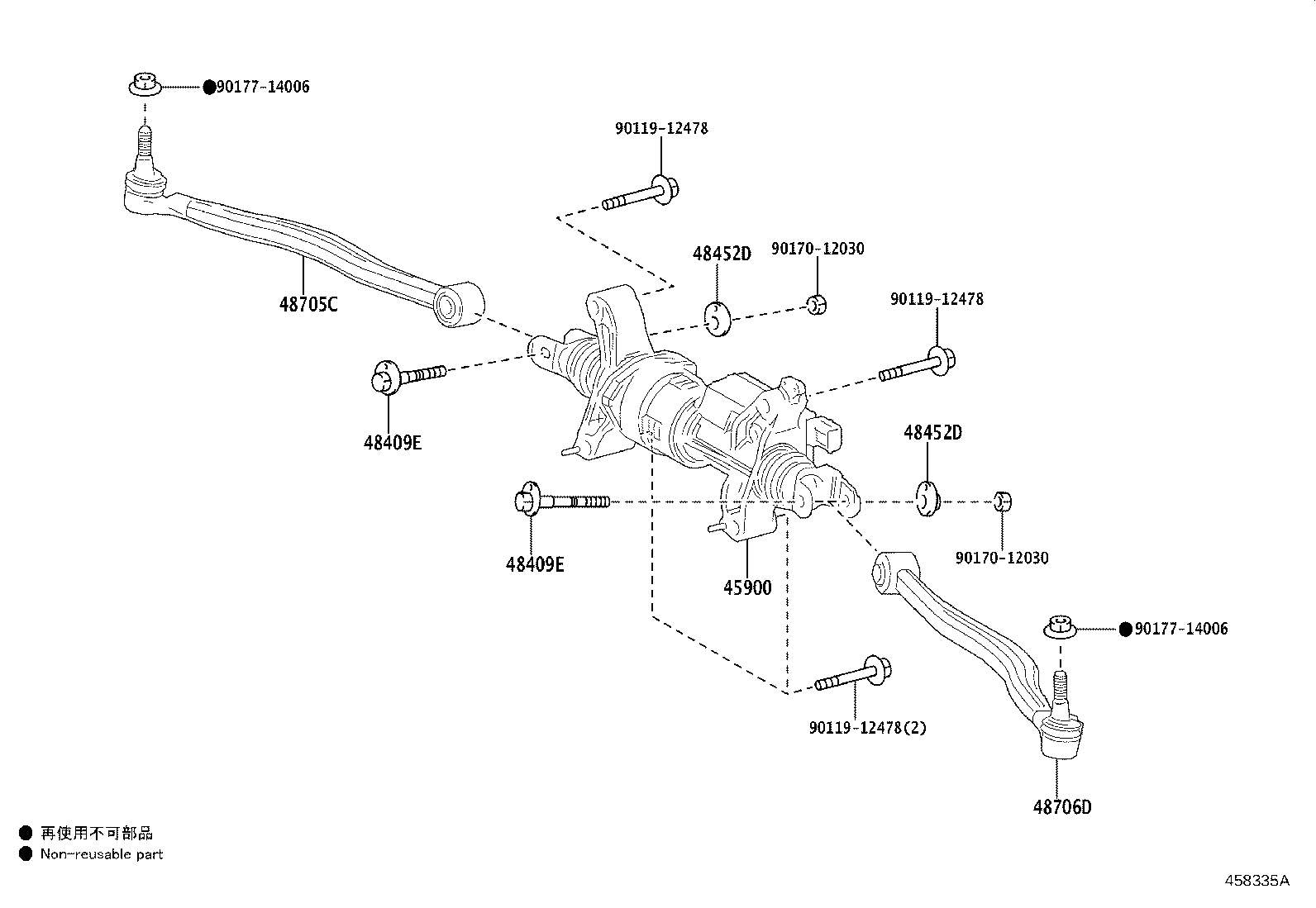

Figure 458335A 458335A 2022-09 → —

Part groups

PNCDescription
45900 Link Assy, Rear Steering
48409E Cam Sub-assy, Toe Adjust
48452D Plate, Toe Adjust
48705C Link Sub-assy Set, Toe Control, RH
48706D Link Sub-assy Set, Toe Control, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
