Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 3 illustrations

Illustrations

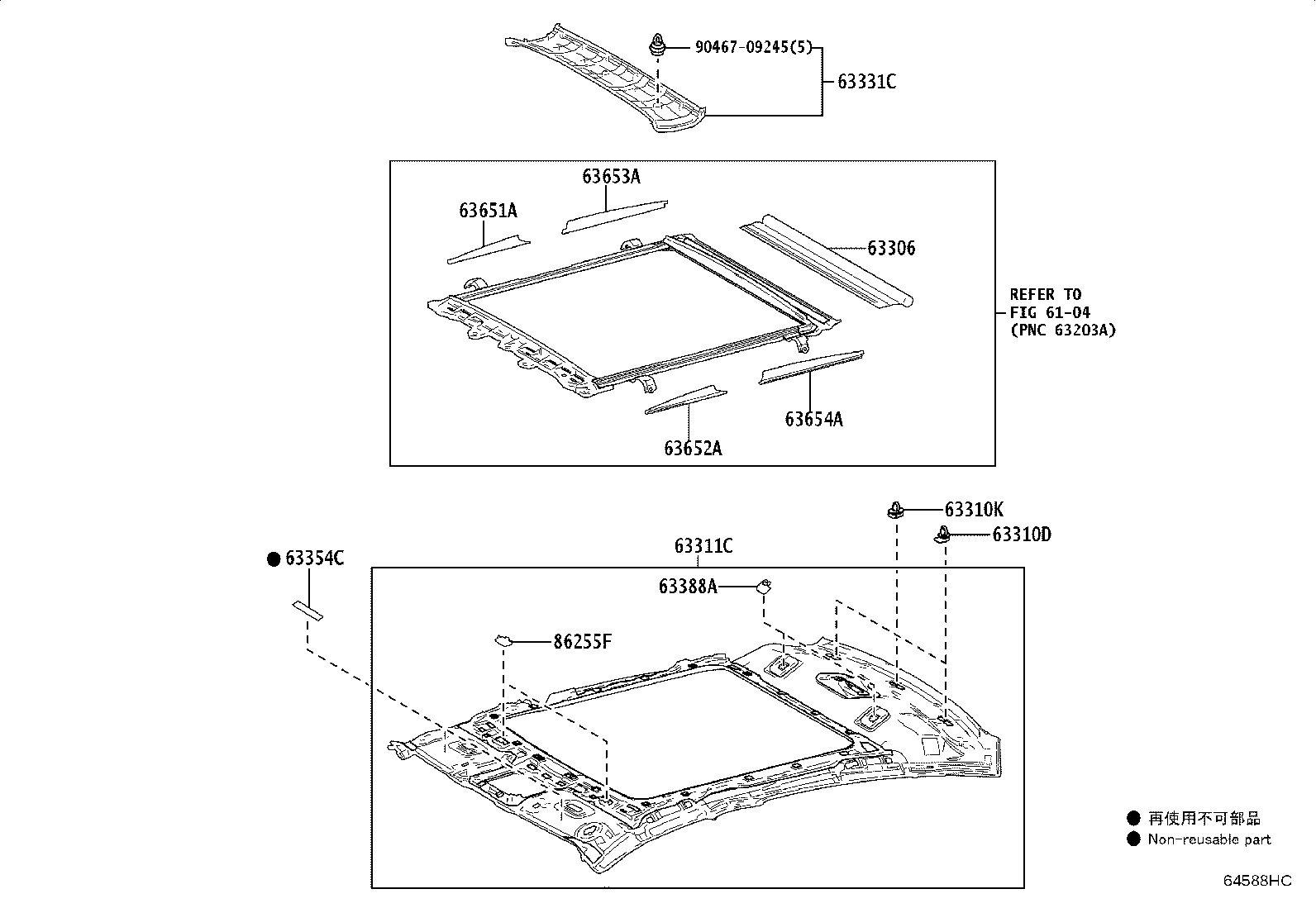

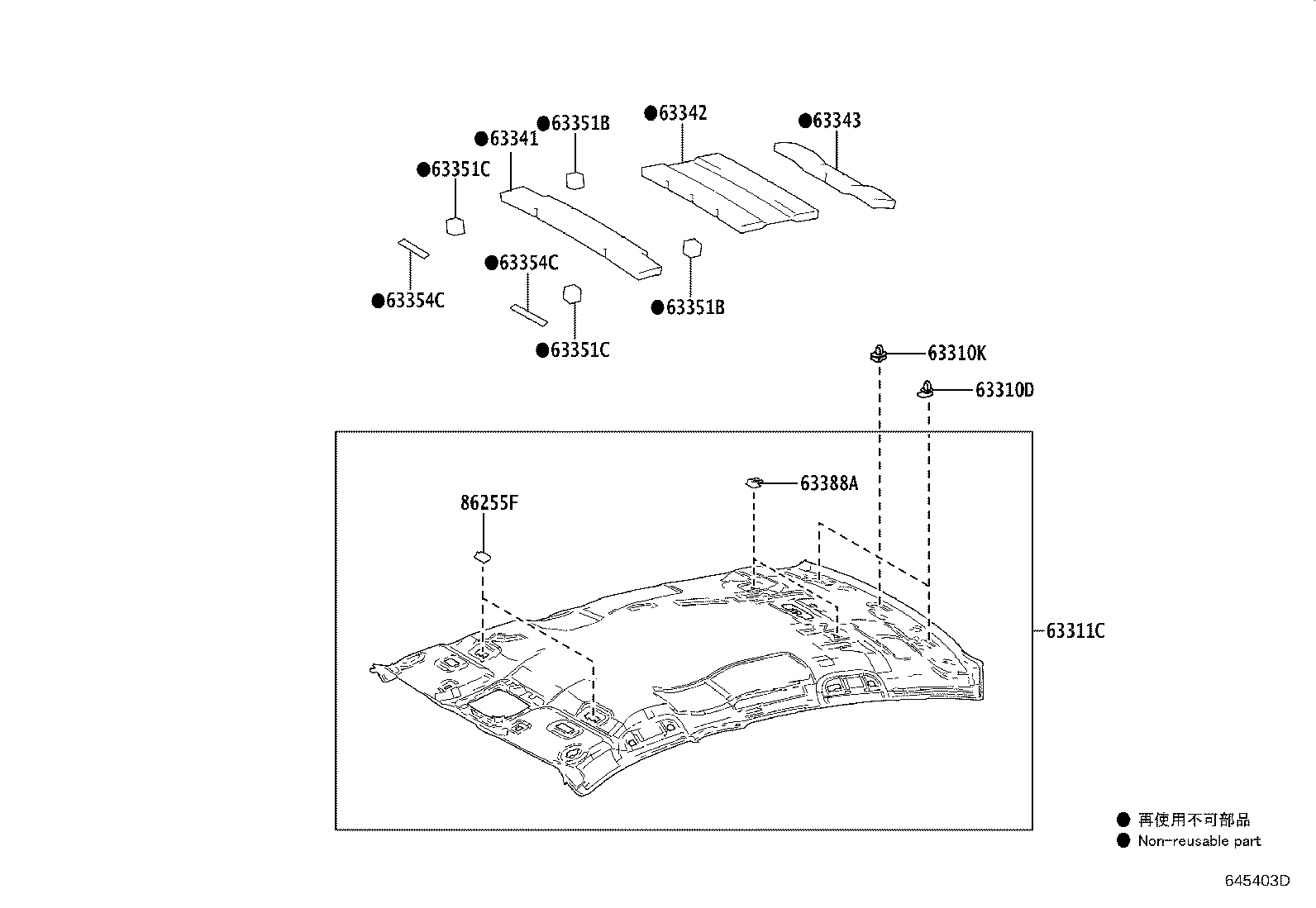

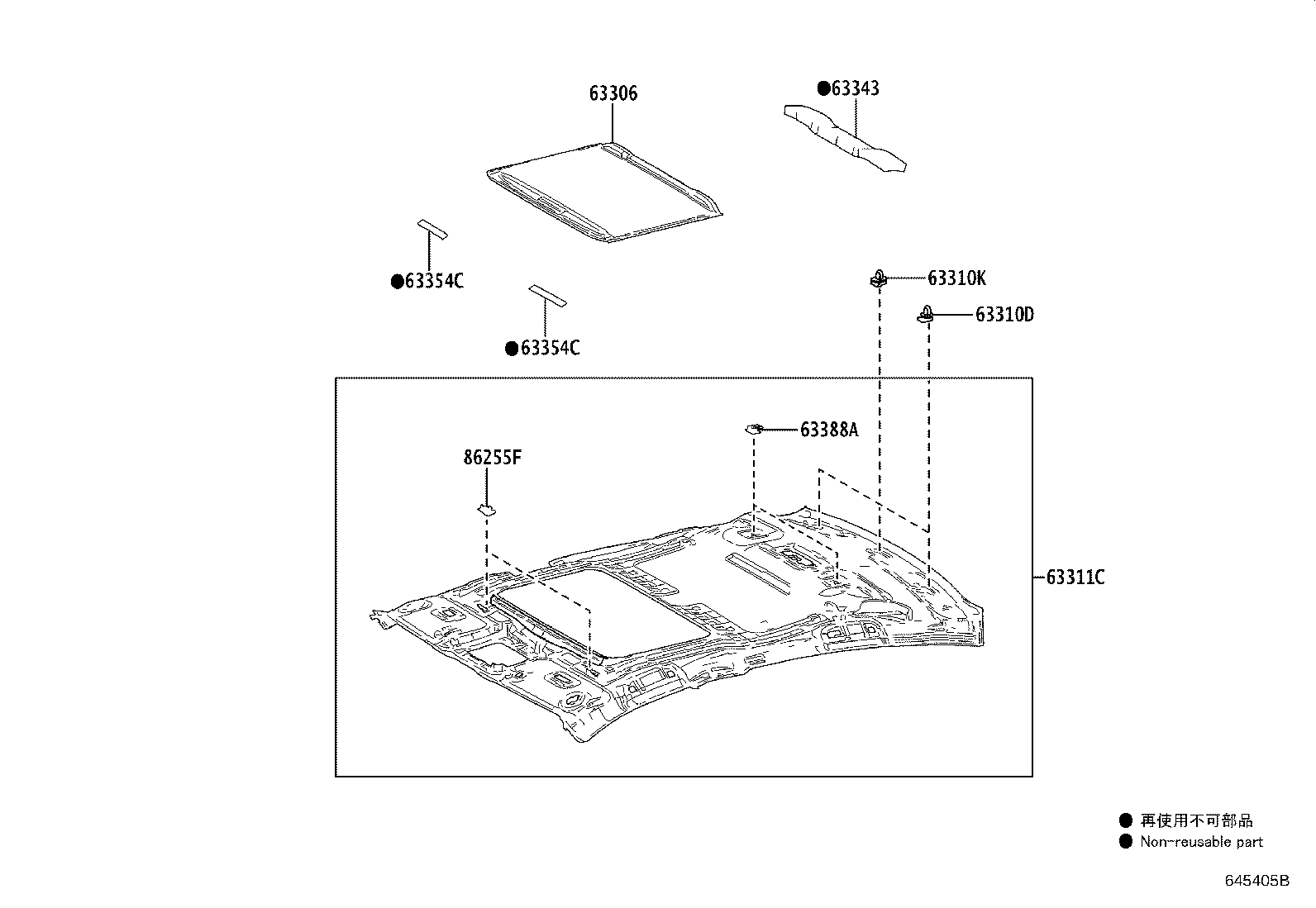

Figure 645403D 645403D 2022-09 → — Figure 645405B 645405B 2022-09 → — Figure 64588HC 64588HC 2024-04 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63310K Clip
63311C Headlining, Roof
63331C Protector, Roof Center Reinforcement
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
63354C Pad, Roof Headlining Front Side
63388A Cover, Roof Headlining Holder
63651A Garnish, Sunshade, NO.1 RH
63652A Garnish, Sunshade, NO.1 LH
63653A Garnish, Sunshade, NO.2 RH
63654A Garnish, Sunshade, NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
