Toyota Crown Crossover
2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan
Supported model
Data version 2022-07

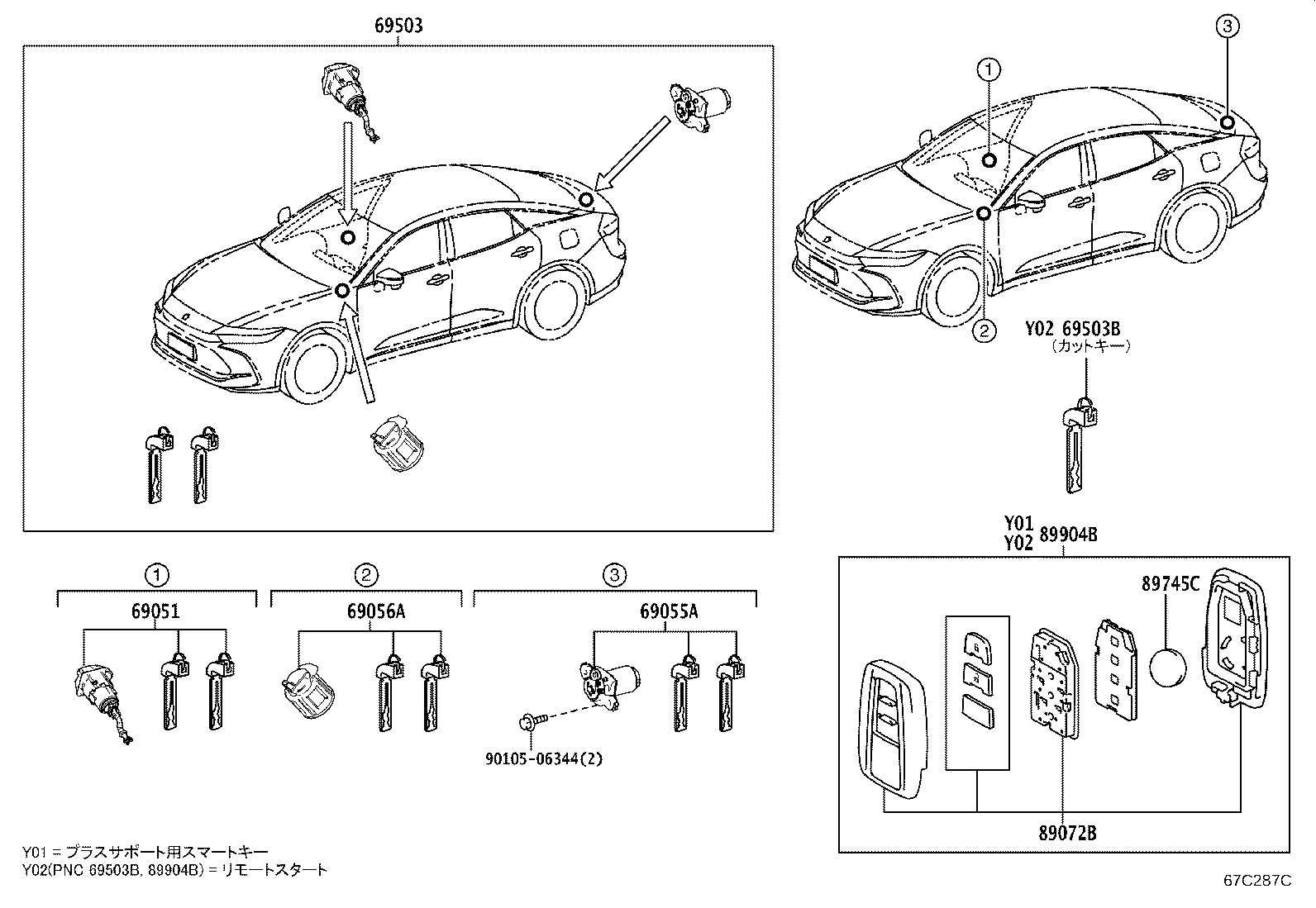

Lock Cylinder Set
8 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89745C | Battery, Transmitter |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
