Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

7 part groups · 2 illustrations

Illustrations

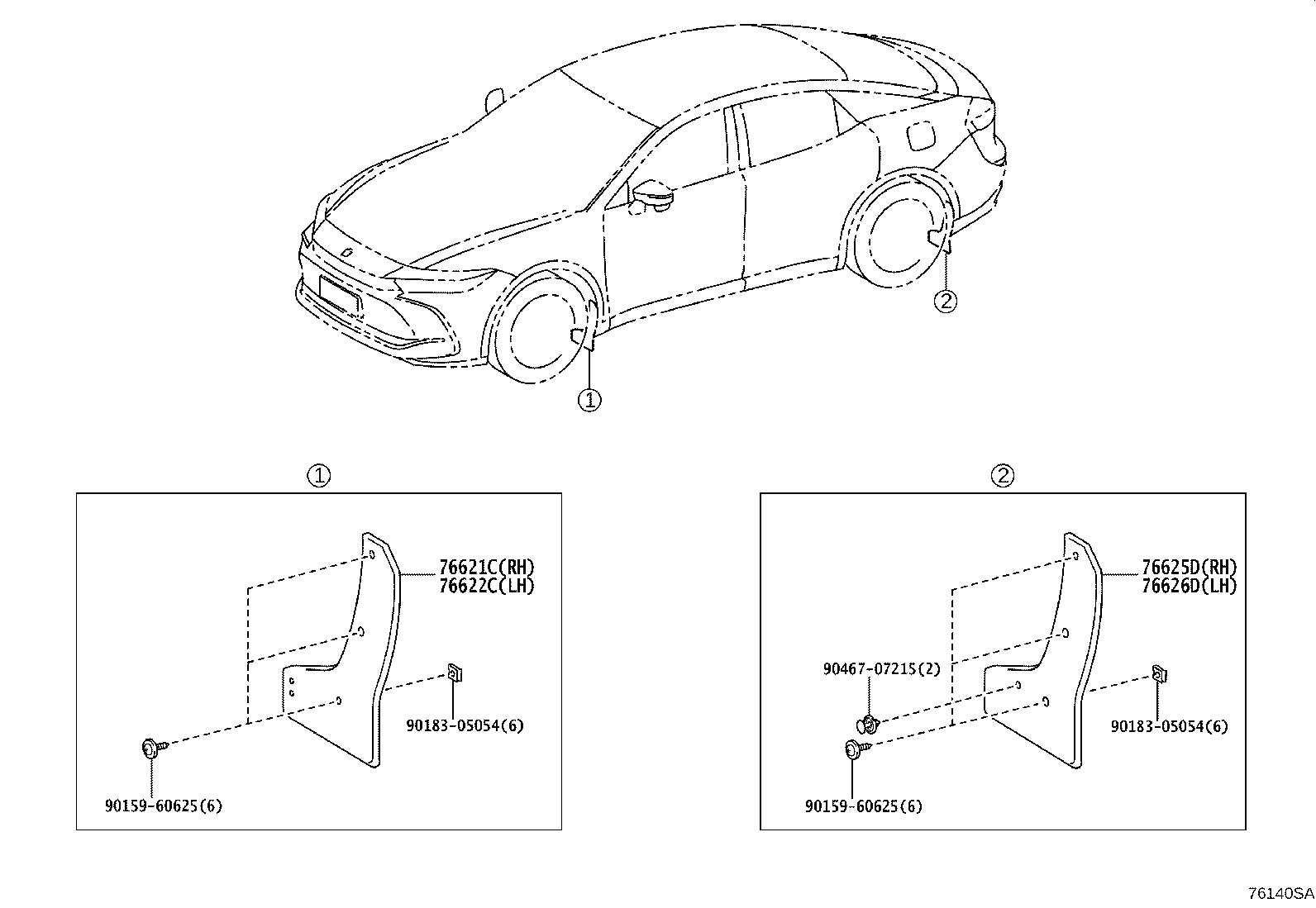

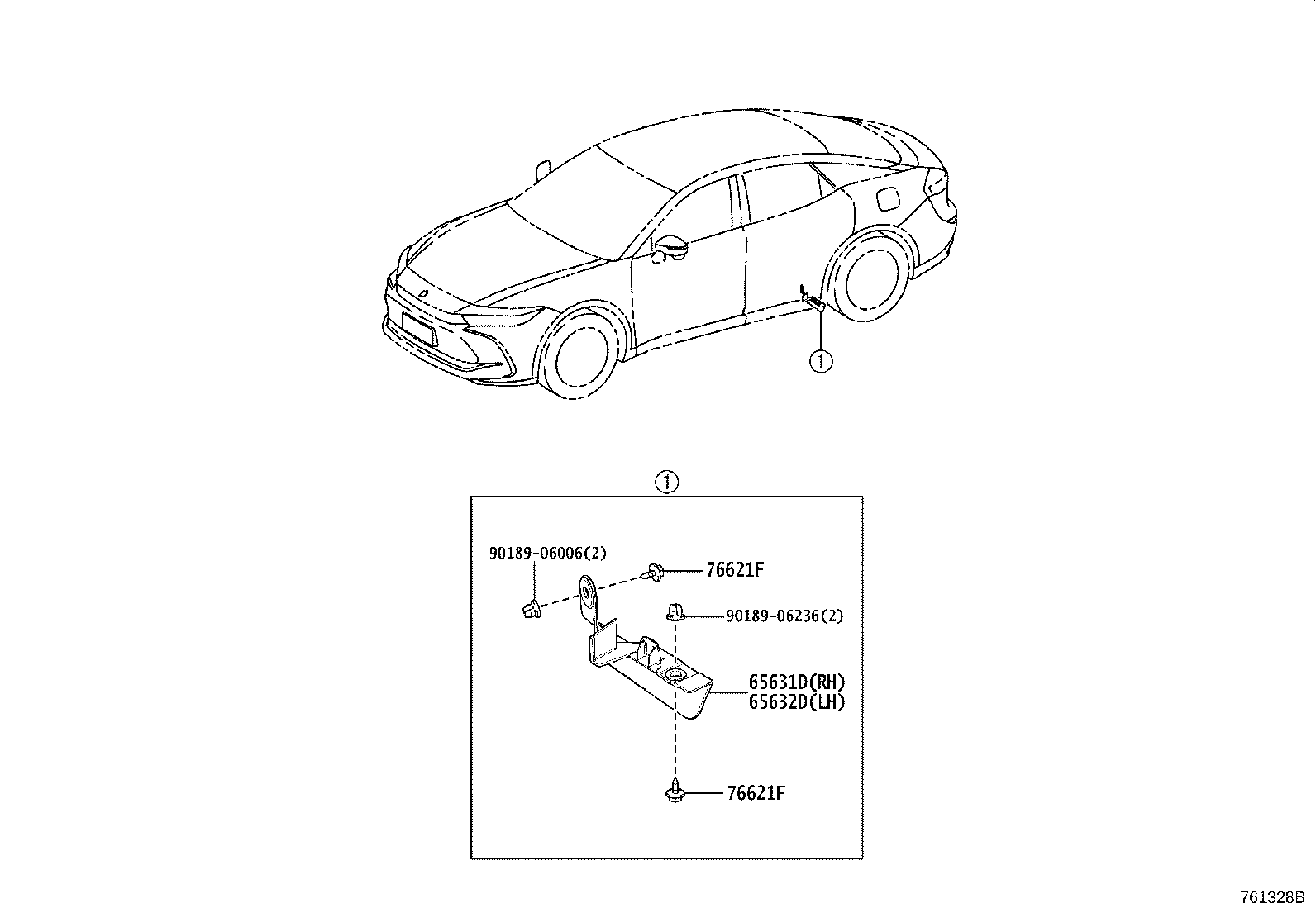

Figure 761328B 761328B 2022-09 → — Figure 76140SA 76140SA 2024-04 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76621C Mudguad, Front Fender, RH
76621F Screw, NO.1
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
