Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

3 part groups · 1 illustrations

Illustrations

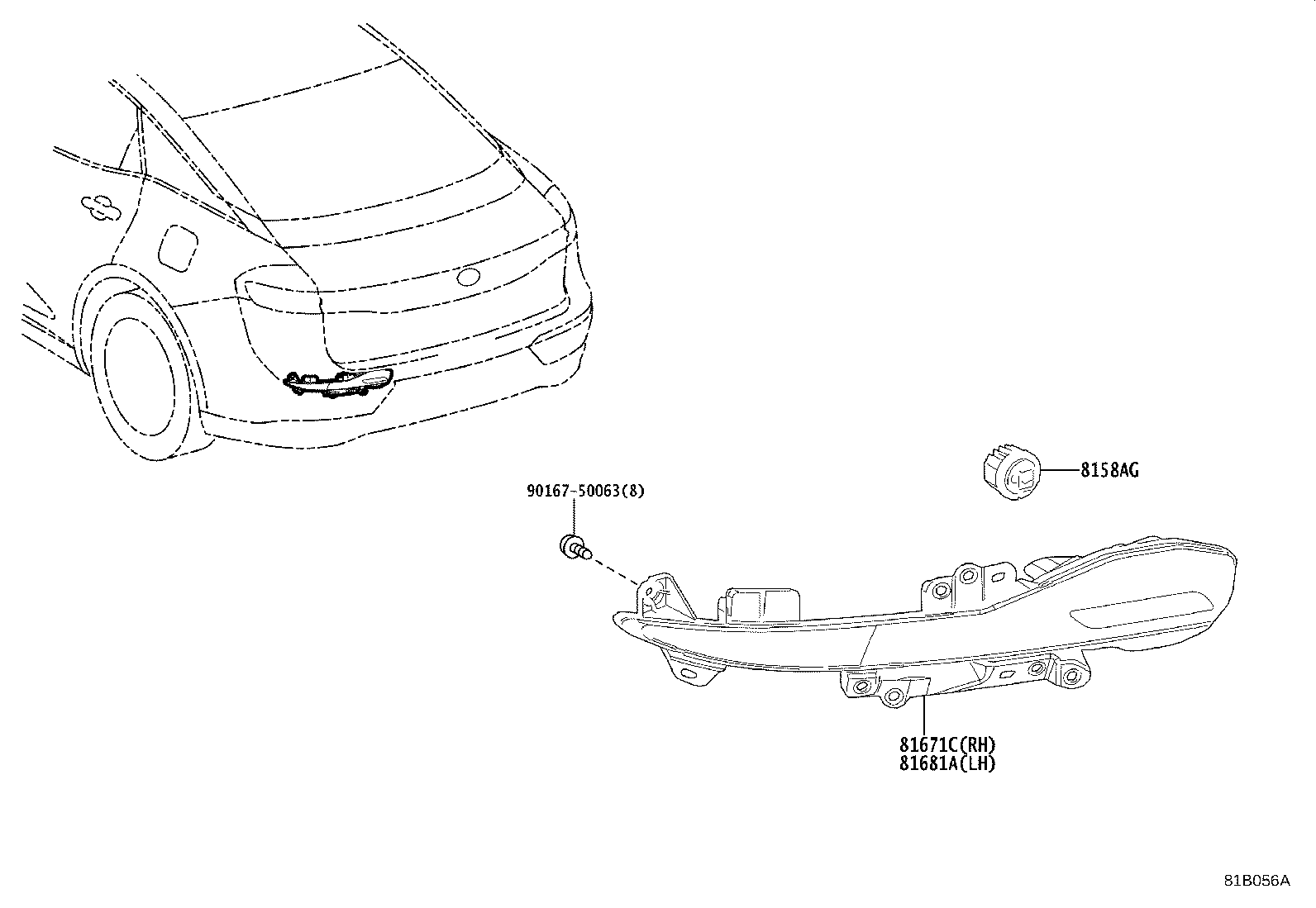

Figure 81B056A

81B056A 2022-09 → —

Part groups

PNC	Description
8158AG	Led, Back-up Lamp
81671C	Lens & Body, Back-up Lamp, RH
81681A	Lens & Body, Back-up Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
