Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

15 part groups · 2 illustrations

Illustrations

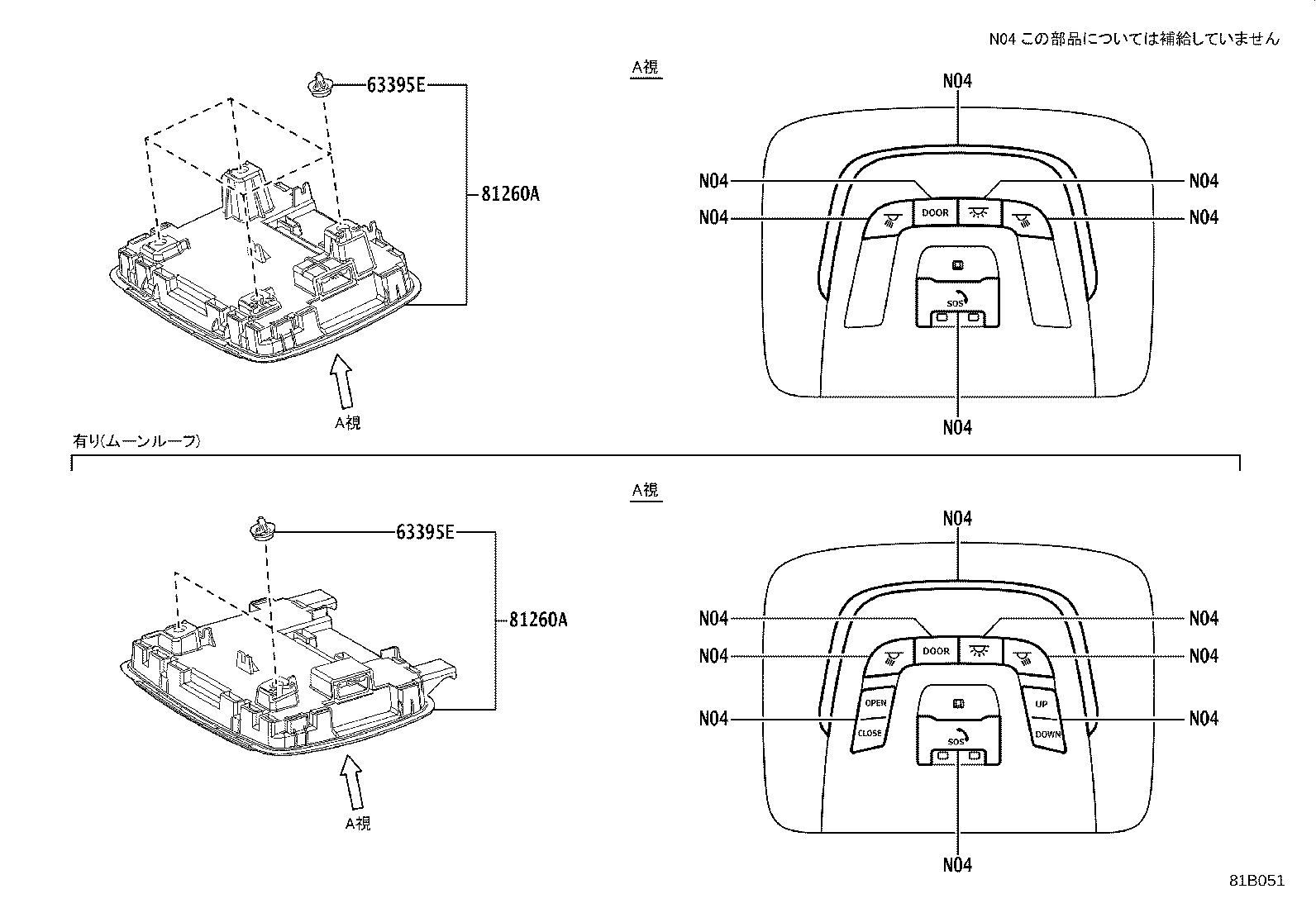

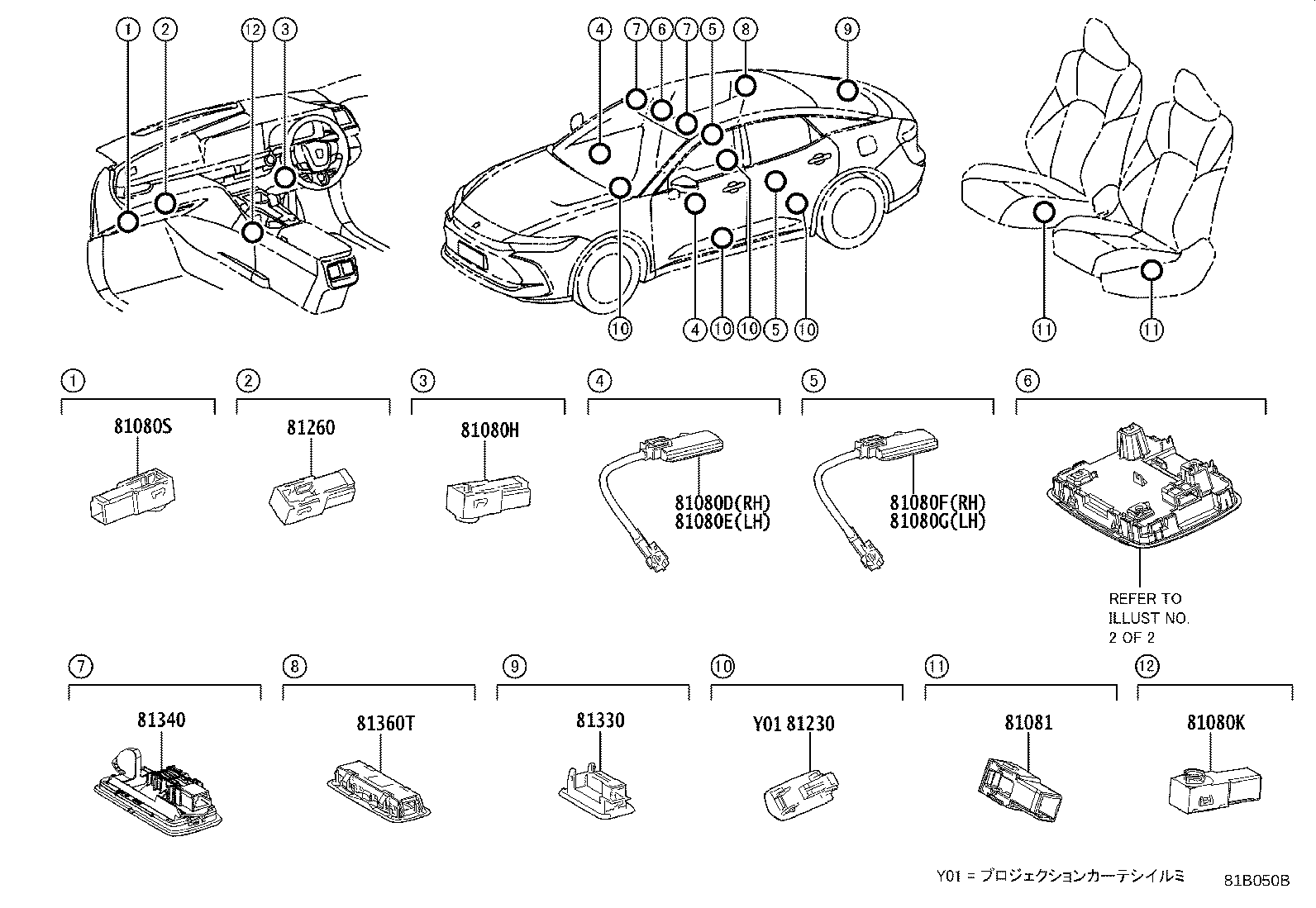

Figure 81B050B 81B050B 2022-09 → — Figure 81B051 81B051 2022-09 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080K Lamp Assy, Console Box Illumination
81080S Lamp Assy, Interior Illumination, NO.1 LH
81081 Lamp Sub-assy, Interior Illumination
81230 Lamp Assy, Courtesy
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
