Toyota Crown Crossover
2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan
Supported model
Data version 2022-07
Switch & Relay & Computer
139 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28371B | Relay, Igr |
| 28371L | Relay, Igp |
| 28800R | Relay, Battery Fan |
| 28850C | Sensor Assy, Battery State |
| 28859A | Holder, Battery Current Sensor |
| 28911 | Bracket, Integration Control Supply, NO.1 |
| 28911A | Bracket, Integration Control Supply, NO.2 |
| 28912 | Supply, Integration Control |
| 35300G | Relay, Oil Pump |
| 81713 | Holder, Fusee |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82600L | Luggage Room Fuse |
| 82613A | Block, Fuse Base |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620F | Block Assy, Fusible Link |
| 82644 | Computer, Semiconductor Power Integration |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82663D | Cover, Relay Block, Lower, NO.5 |
| 82672K | Cover, Power Distribution Box |
| 82715W | Bracket, Wiring Harness Clamp |
| 82715X | Bracket, Wiring Harness Clamp, NO.2 |

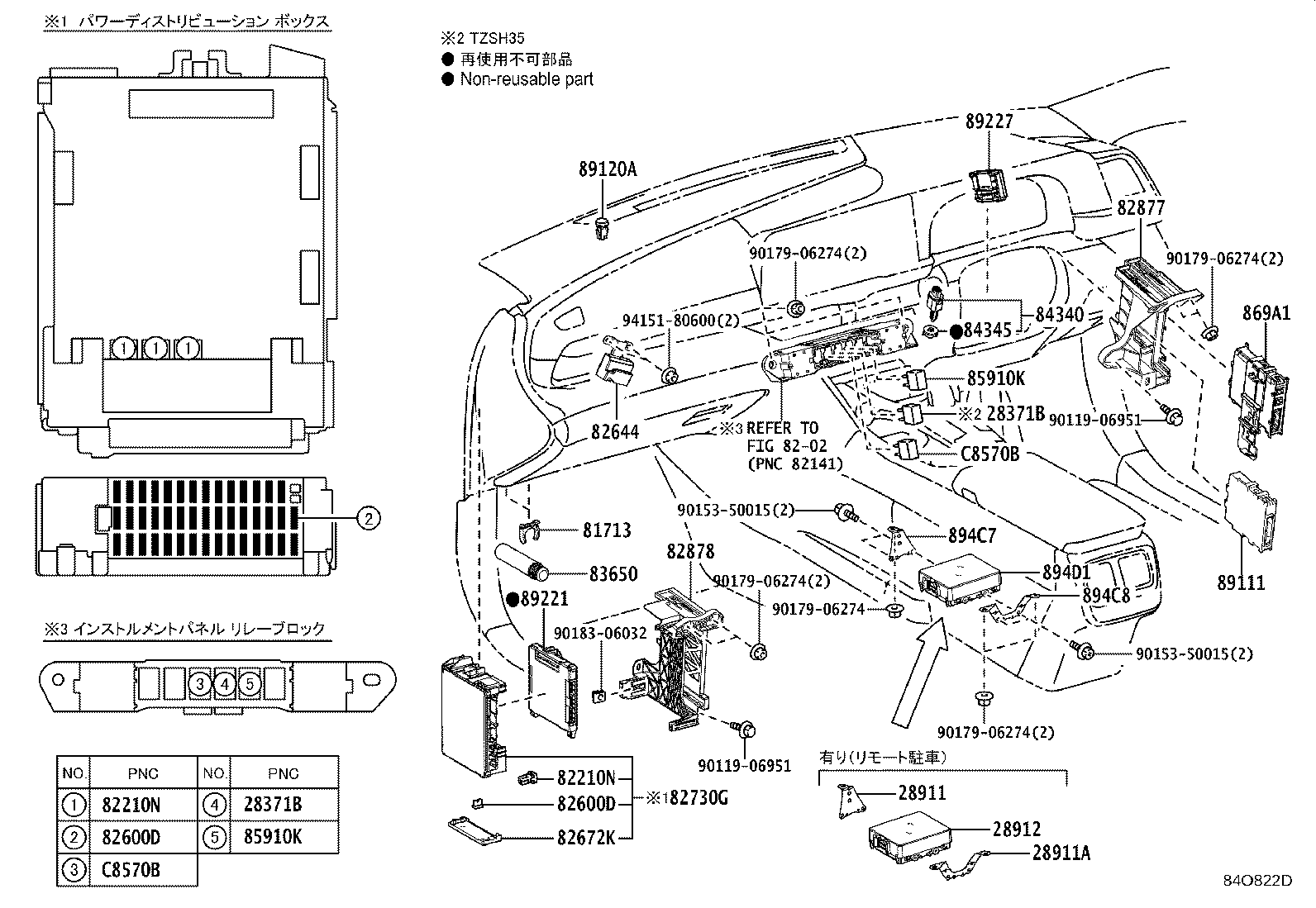

| 82730G | Box Assy, Power Distribution |

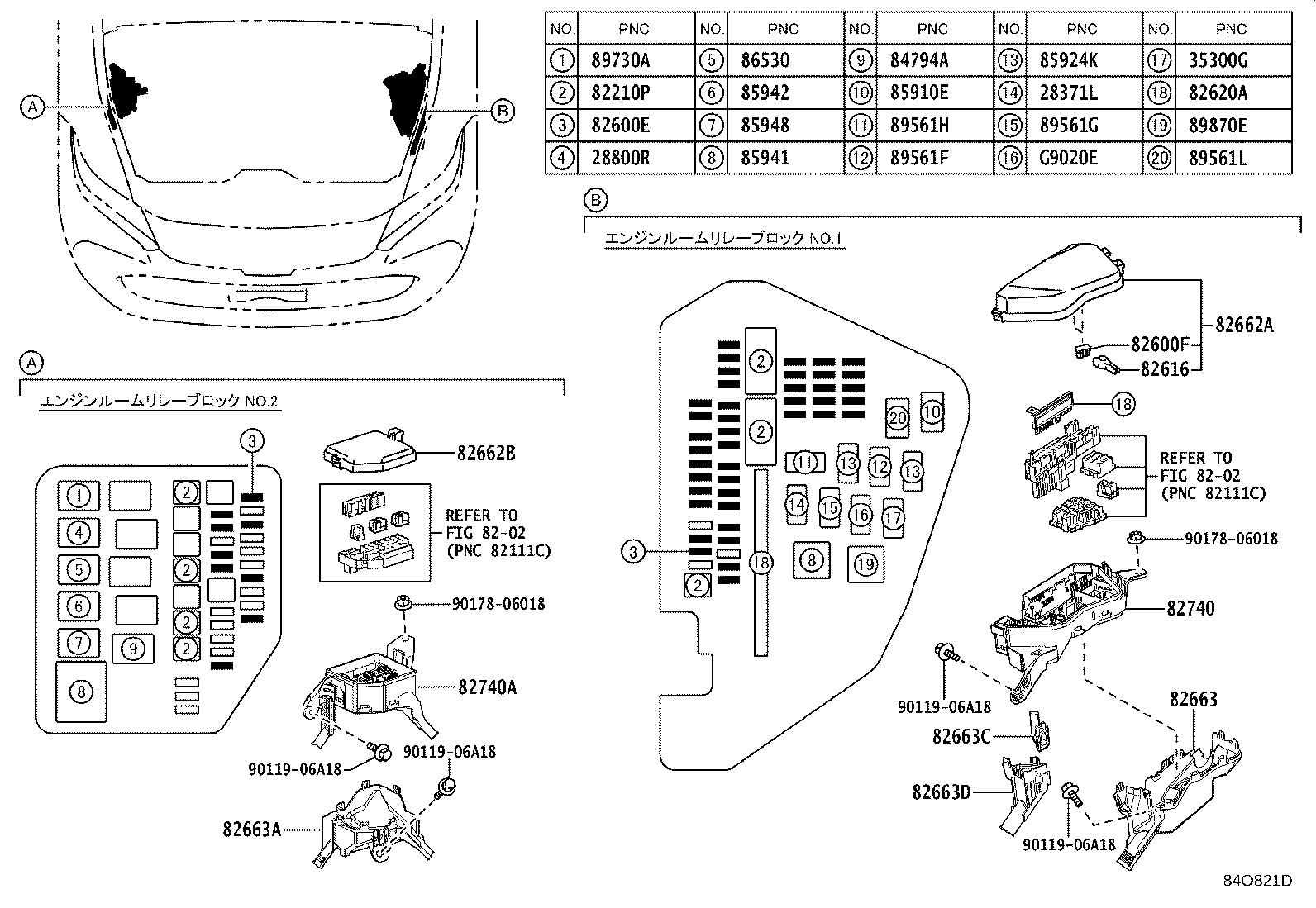

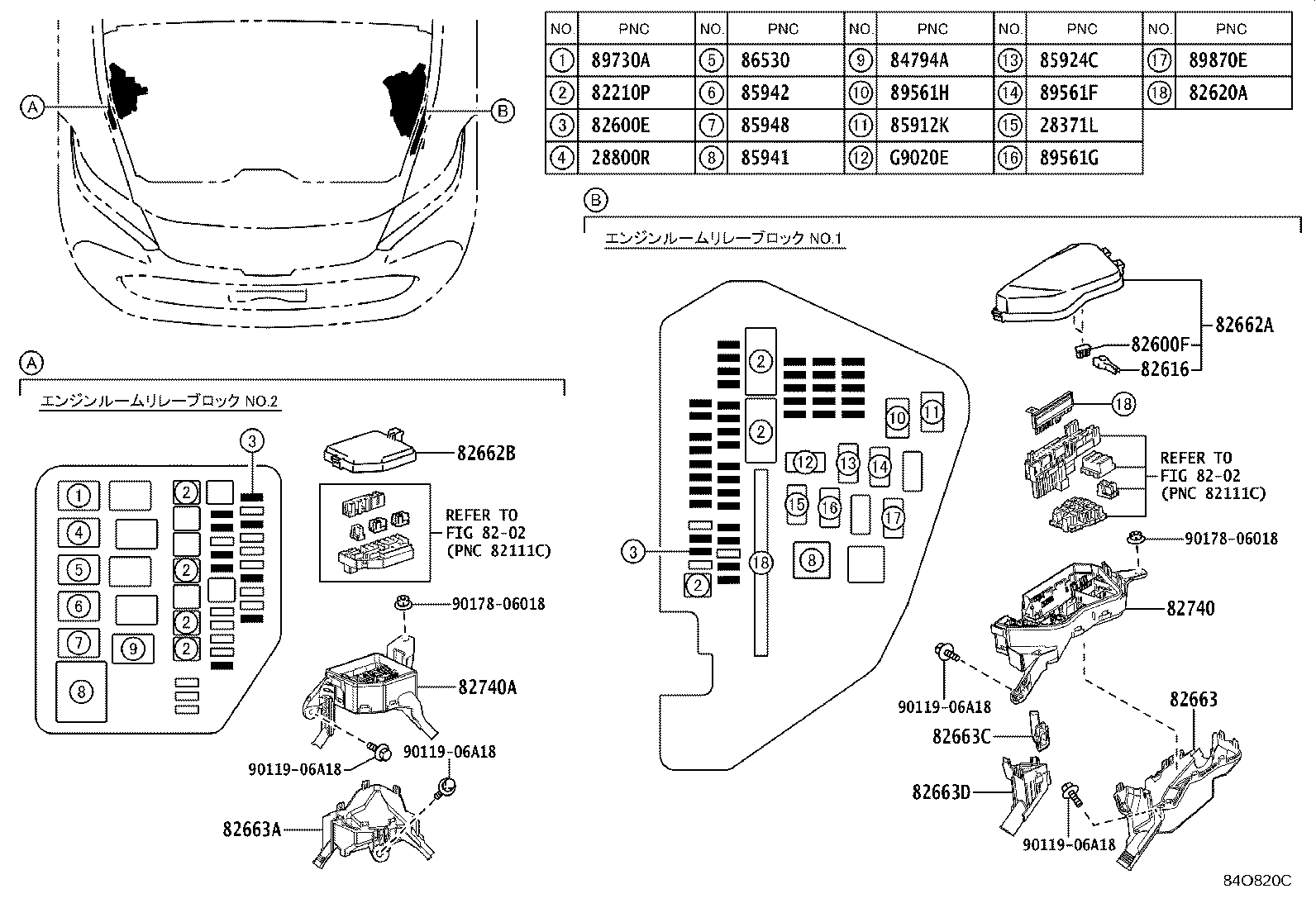

| 82740 | Block Assy, Engine Room Relay |
| 82740A | Block Assy, Engine Room Relay, NO.2 |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83650 | Fusee |
| 84040 | Master Switch Assy,Multiplex Network |
| 84152 | Switch, Headlamp Leveling |
| 84153 | Switch, Auto High Beam |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

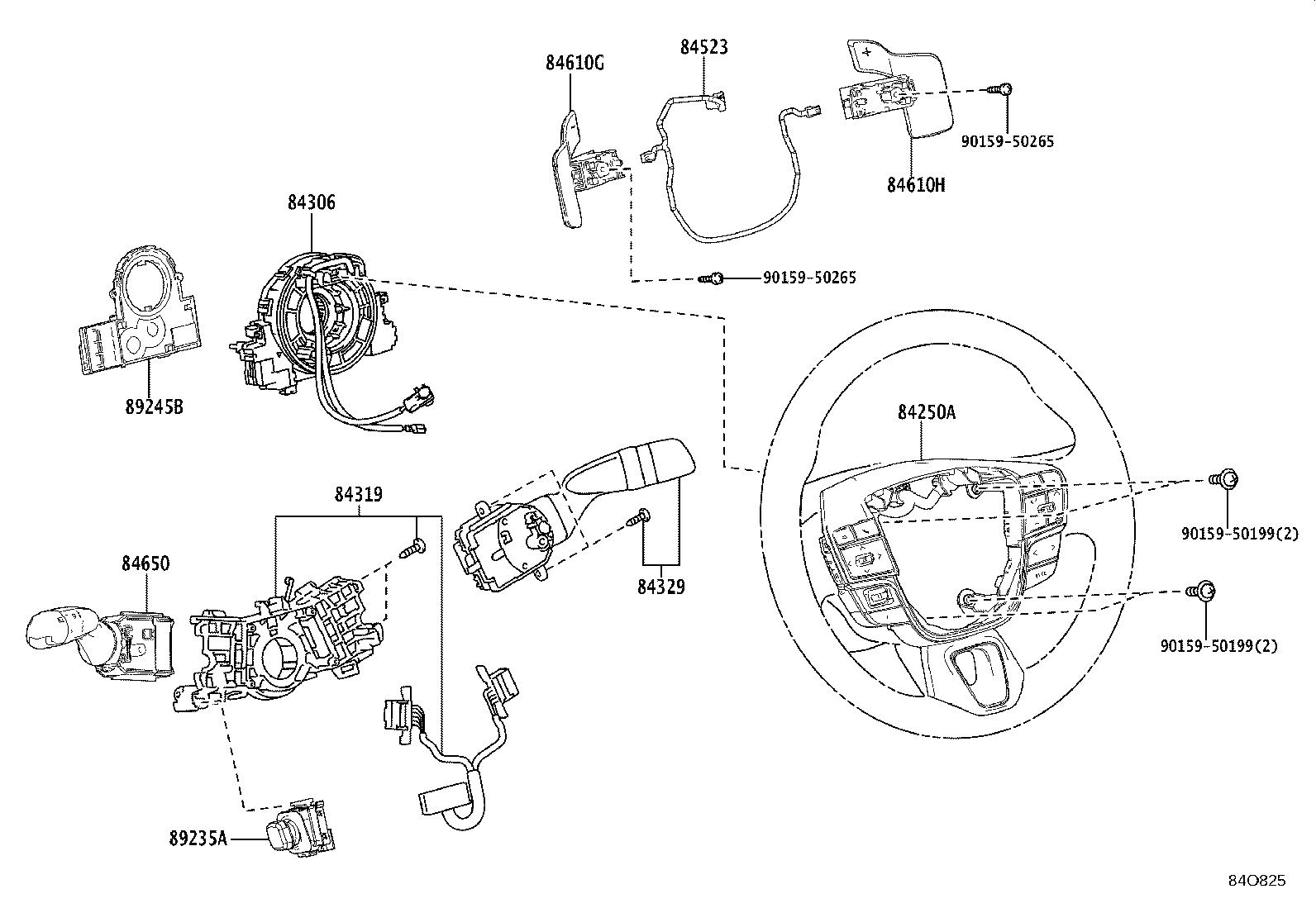

| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84319 | Housing, Steering Wheel Switch |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84390B | Switch Assy, Electric Parking Brake |
| 84485C | Switch, Power Outlet |
| 84523 | Wire, Switch NO.1 |
| 84610G | Switch Assy, Transmission Shift, NO.1 |
| 84610H | Switch Assy, Transmission Shift, NO.2 |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84794 | Switch, FR Wiper Deicer |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |

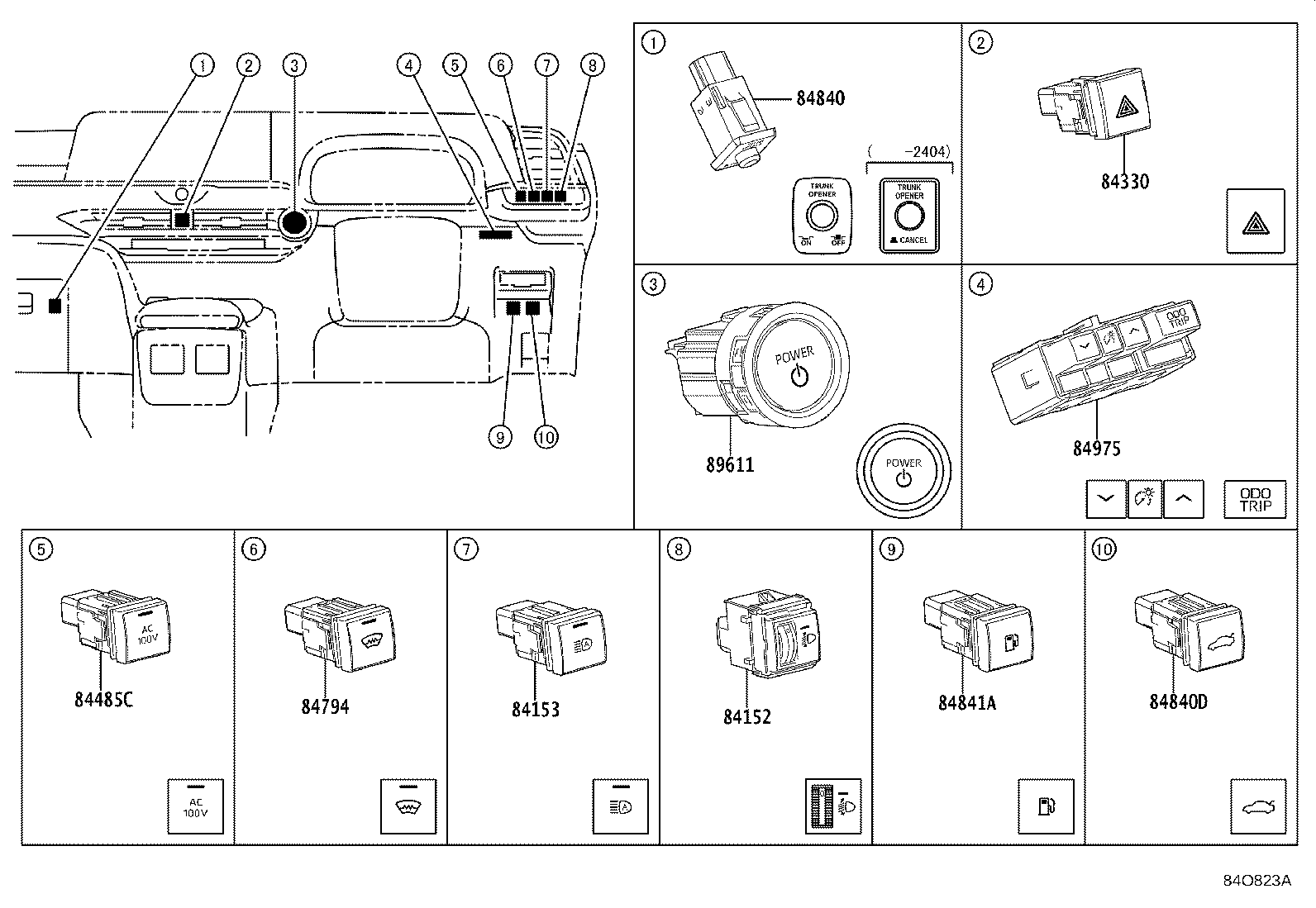

| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840D | Switch Assy, Luggage Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

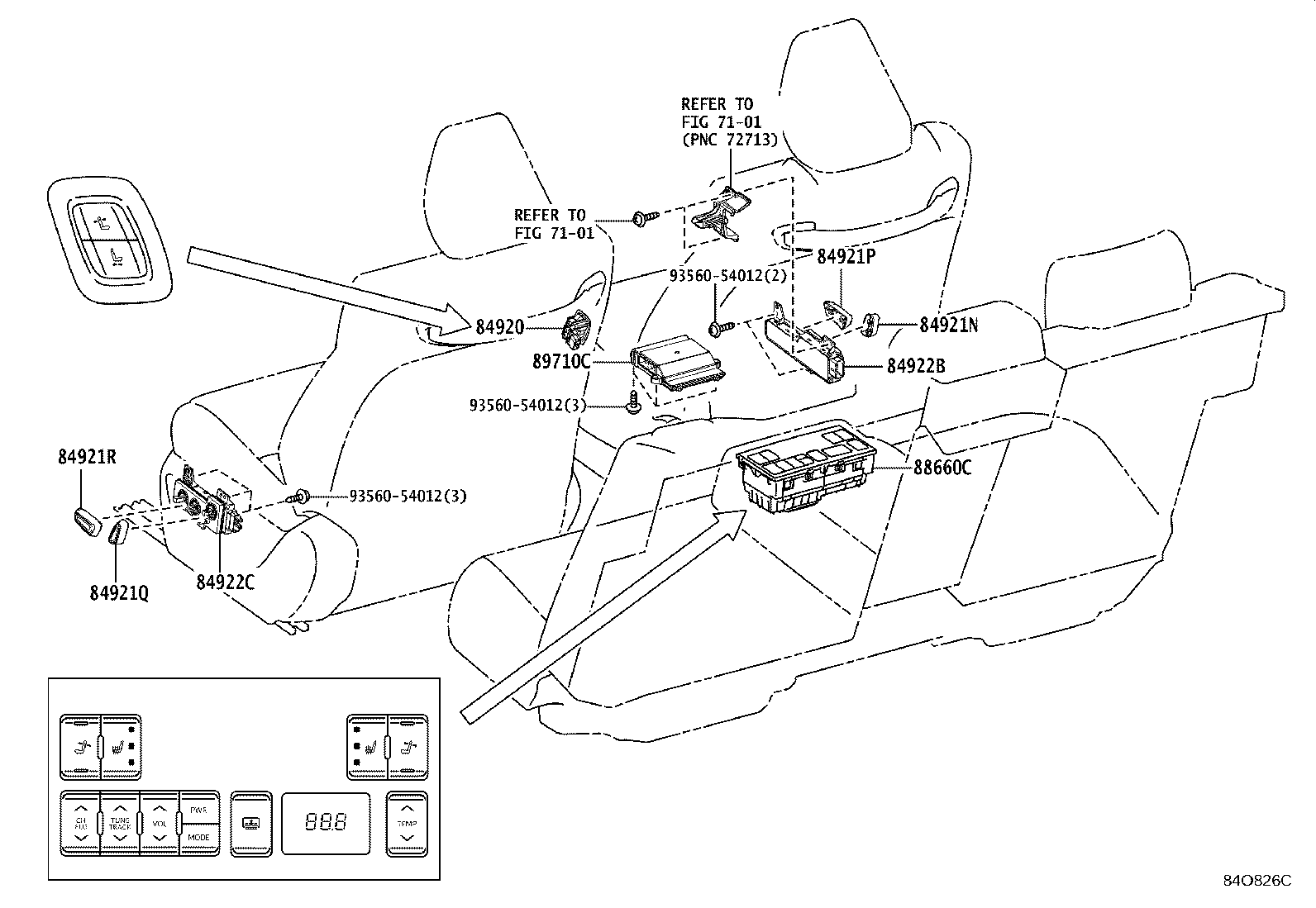

| 84920 | Switch Assy, Power Seat |
| 84921N | Knob, Power Seat Switch, RH (FOR RECLINING) |
| 84921P | Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL) |
| 84921Q | Knob, Power Seat Switch, LH (FOR RECLINING) |
| 84921R | Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84931B | Switch, Door Control |
| 84945A | Switch, Luggage Electrical Key |

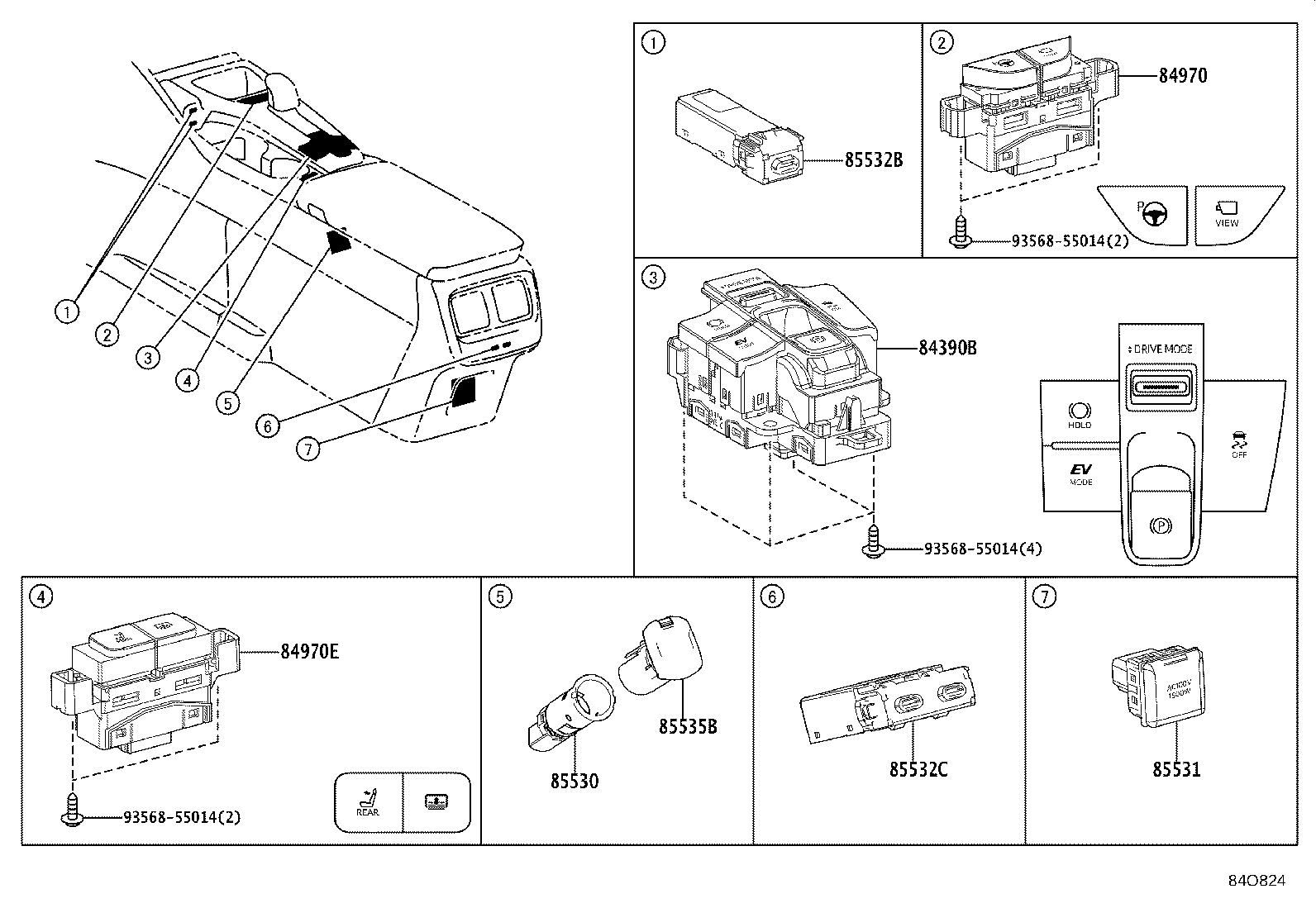

| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 84975 | Switch, Trip |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85531 | Socket, Power Outlet |
| 85531A | Socket, Power Outlet, NO.2 |
| 85532B | Socket, Usb Charger |
| 85532C | Socket, Usb Charger, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910E | Relay, Injector |
| 85910K | Relay, Rear Seat Heater |
| 85911D | Relay, Rear Sunshade |
| 85912K | Relay, Vvt |
| 85924C | Relay, Igct |
| 85924K | Relay, Igct, NO.2 |
| 85941 | Relay, Windshield Washer |
| 85942 | Relay, Headlamp Cleaner Control |
| 85948 | Relay, Windshield Wiper |
| 86210D | Fuse, High Voltage |
| 86247B | Bracket, Voltage Inverter |
| 86247C | Bracket, Voltage Inverter, NO.2 |
| 86247D | Bracket, Voltage Inverter, NO.3 |

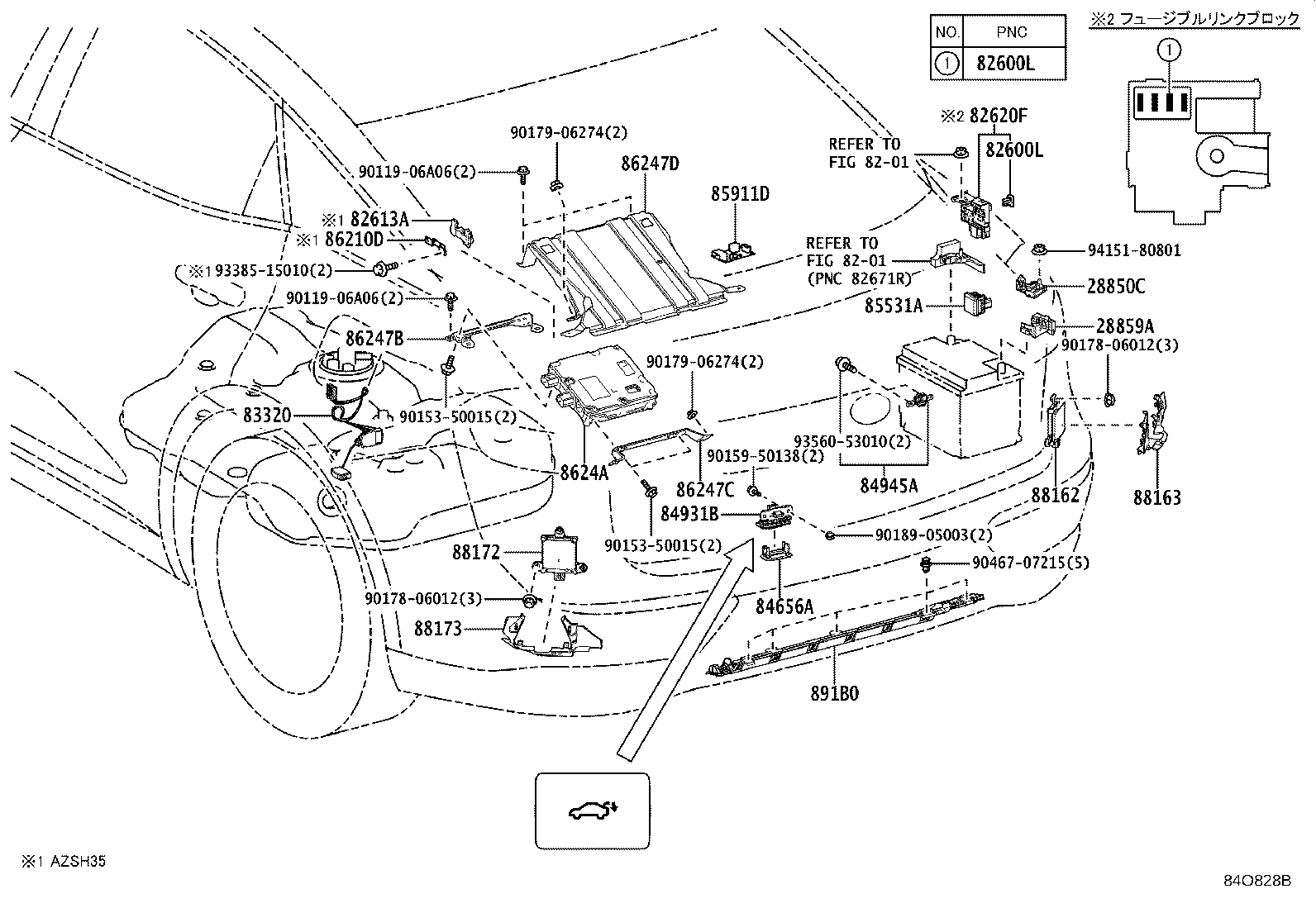

| 8624A | Inverter, Voltage |
| 86530 | Relay Assy, Horn |
| 869A1 | Computer, Intelligent Transport Systems Communication |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88163 | Cover, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 88173 | Cover, Blind Spot Monitor, LH |
| 88660C | Switch Assy, Cooler Control |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 891B0 | Sensor Assy, Kick Door Control |
| 89221 | Computer, Multiplex Network Body |

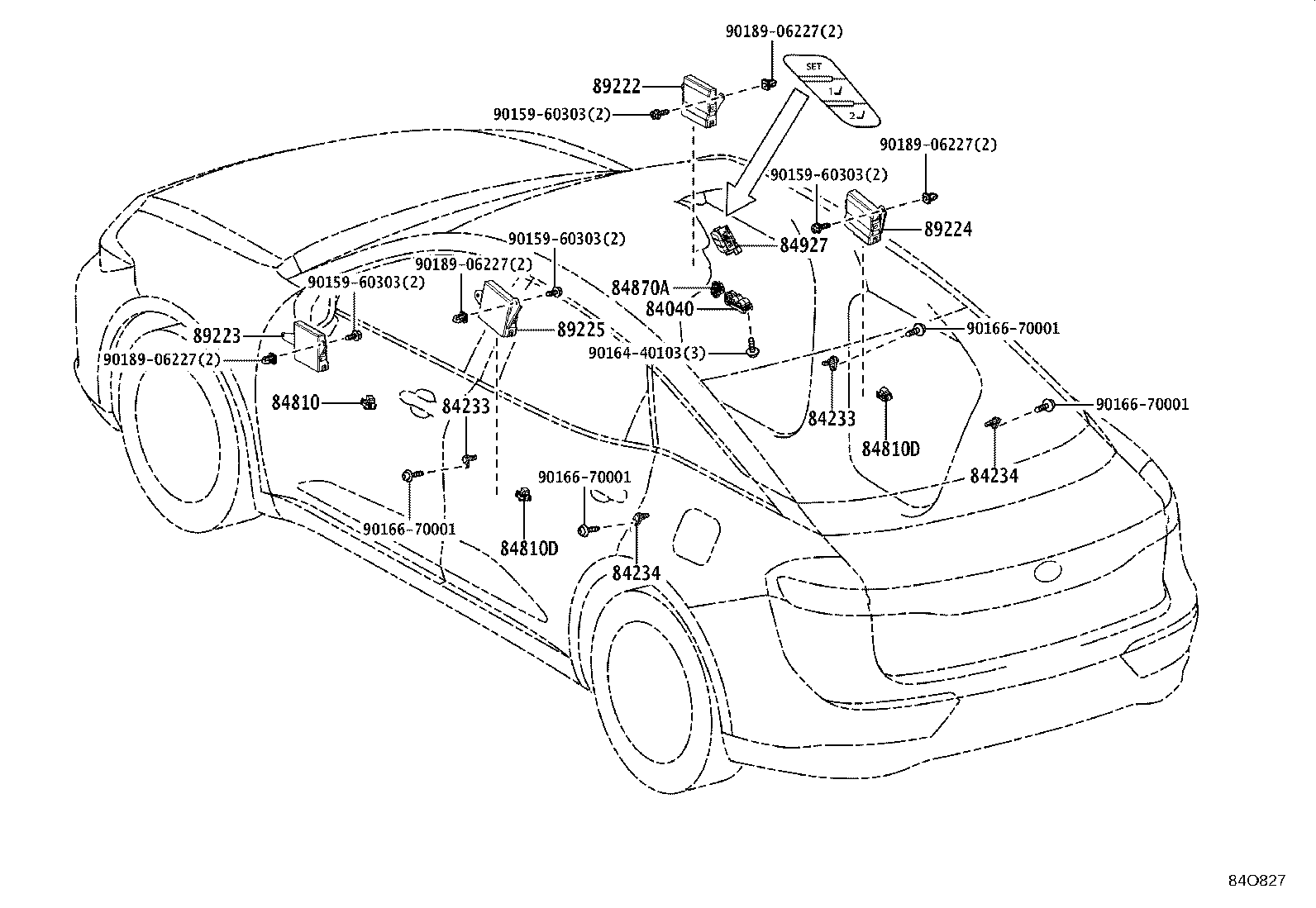

| 89222 | Computer, Multiplex Network Door, Front RH |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89225 | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89422A | Sensor, Water Temperature |
| 89429F | Sensor, Temperature |

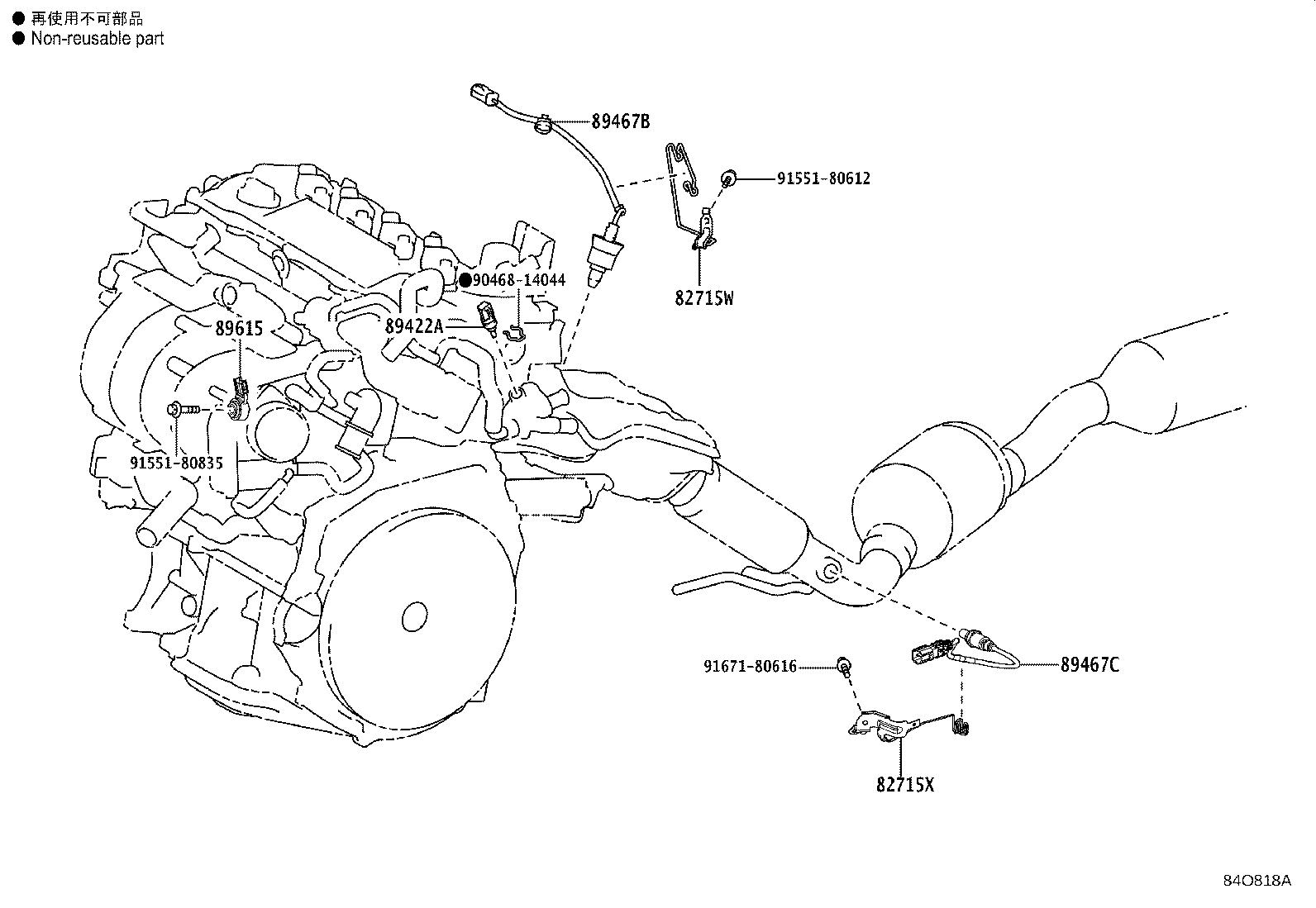

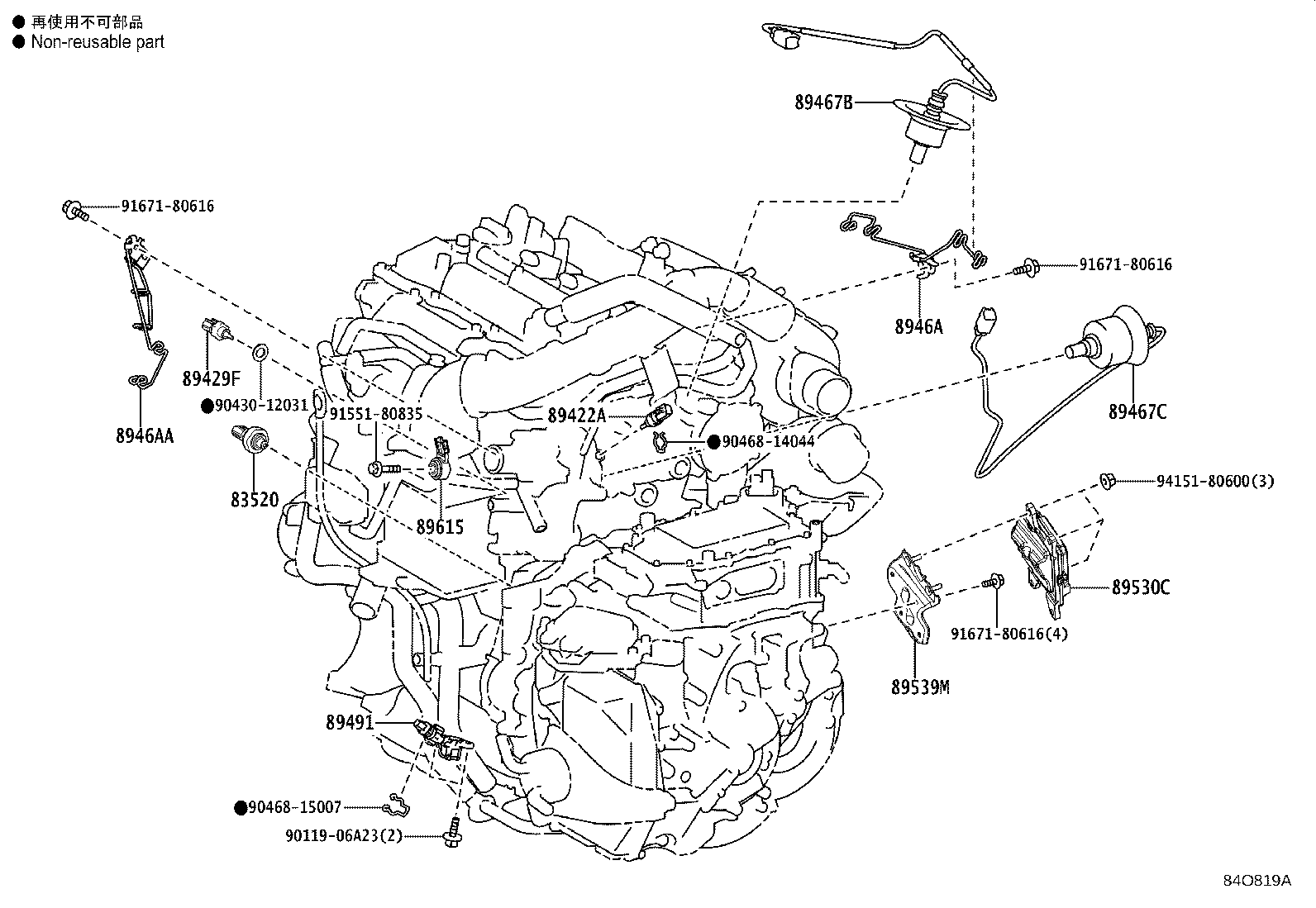

| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 8946A | Bracket, Exhaust Sensor Clamp |
| 8946AA | Bracket, Exhaust Sensor Clamp, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 894C7 | Bracket, Shift Control Computer, NO.1 |
| 894C8 | Bracket, Shift Control Computer, NO.2 |
| 894D1 | Supply, Shift Control |
| 89530C | Computer Assy, Transmission Control |
| 89539M | Bracket, Transmission Control Computer, NO.1 |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89561H | Relay, Electronic Fuel Injection Main, NO.3 |
| 89561L | Relay, Electronic Fuel Injection Main, NO.4 |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89710C | Computer Assy, Position Control, RH |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89870E | Relay, Electronic Driver Unit |
| C8570B | Relay Assy, Drive Control, NO.1 |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
