Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 2 illustrations

Illustrations

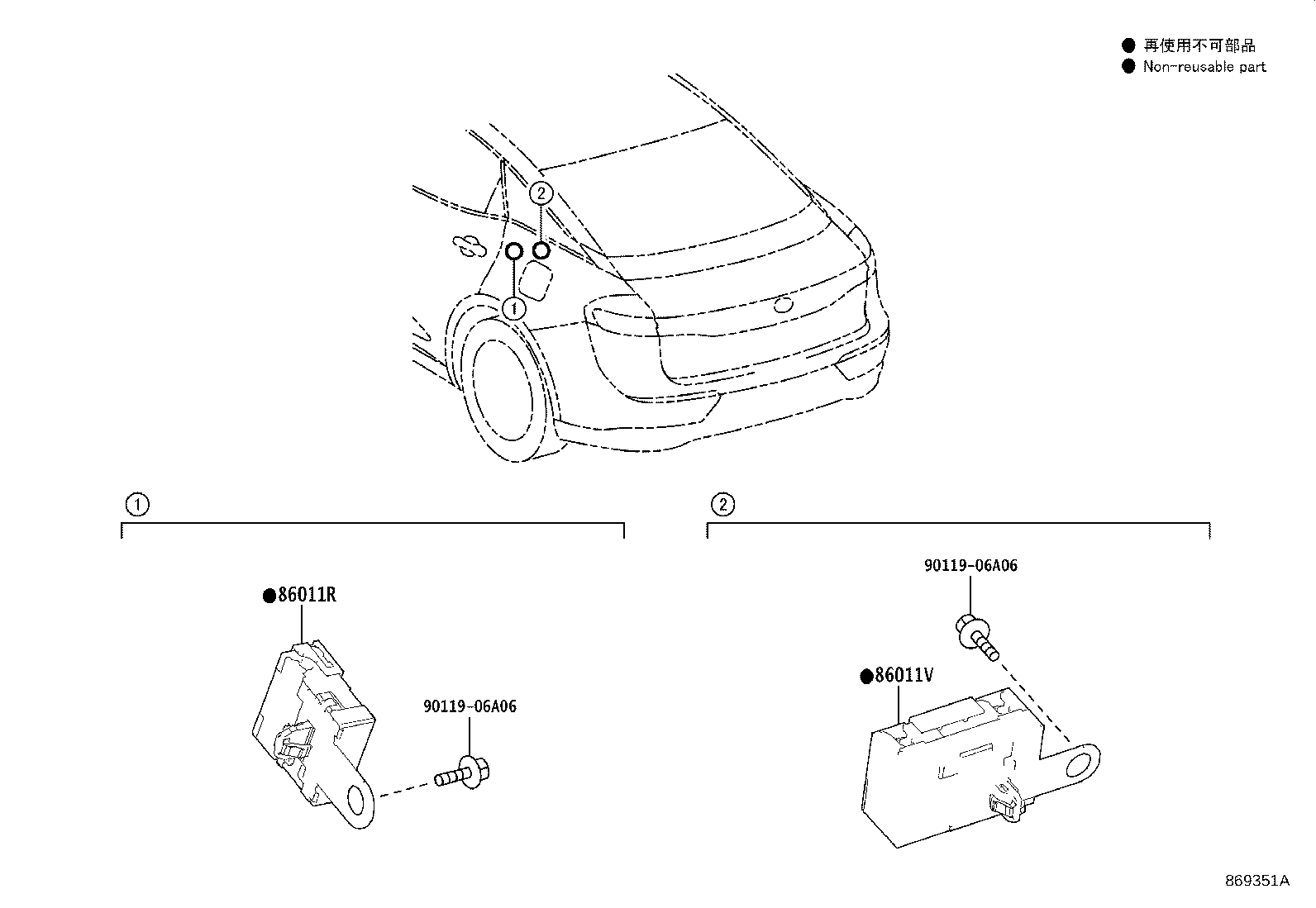

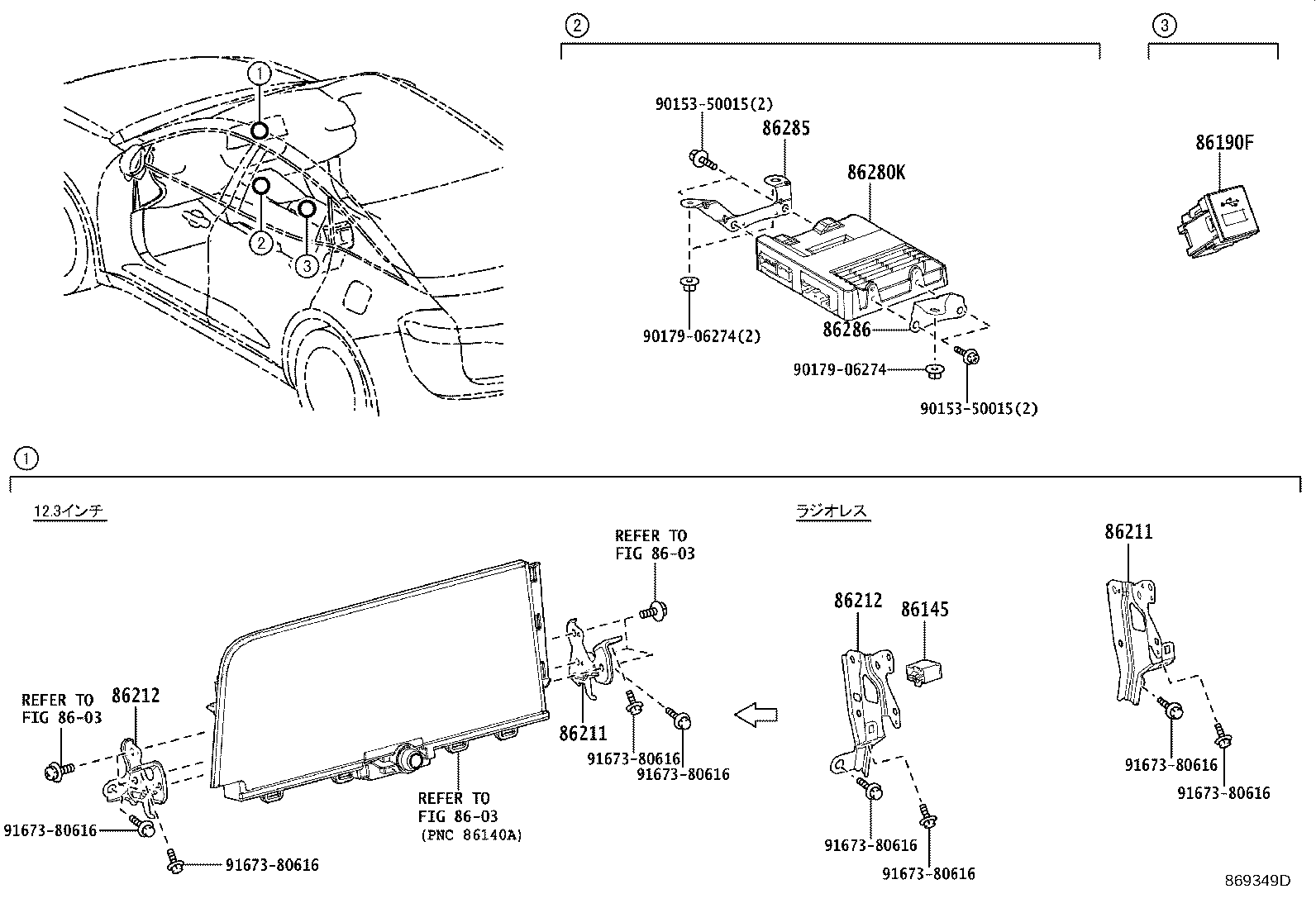

Figure 869349D 869349D 2022-09 → — Figure 869351A 869351A 2022-09 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86145 Connector, Antenna Male
86190F Adapter Assy, Stereo Jack
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280K Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
