Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 1 illustrations

Illustrations

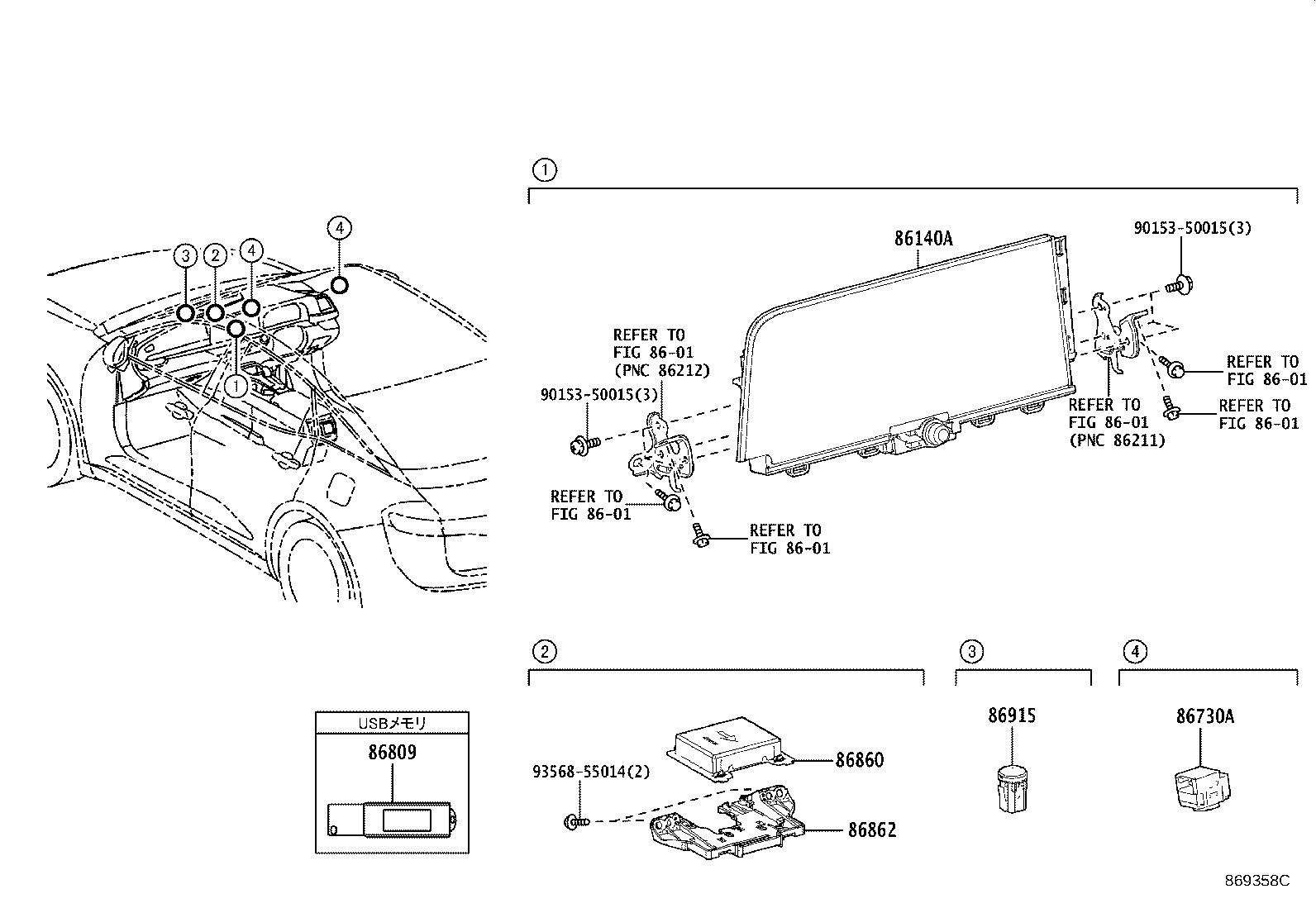

Figure 869358C 869358C 2022-09 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86730A Microphone Assy, Telephone
86809 Usb Set, Usb Memory Navigation Data
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
