Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

14 part groups · 1 illustrations

Illustrations

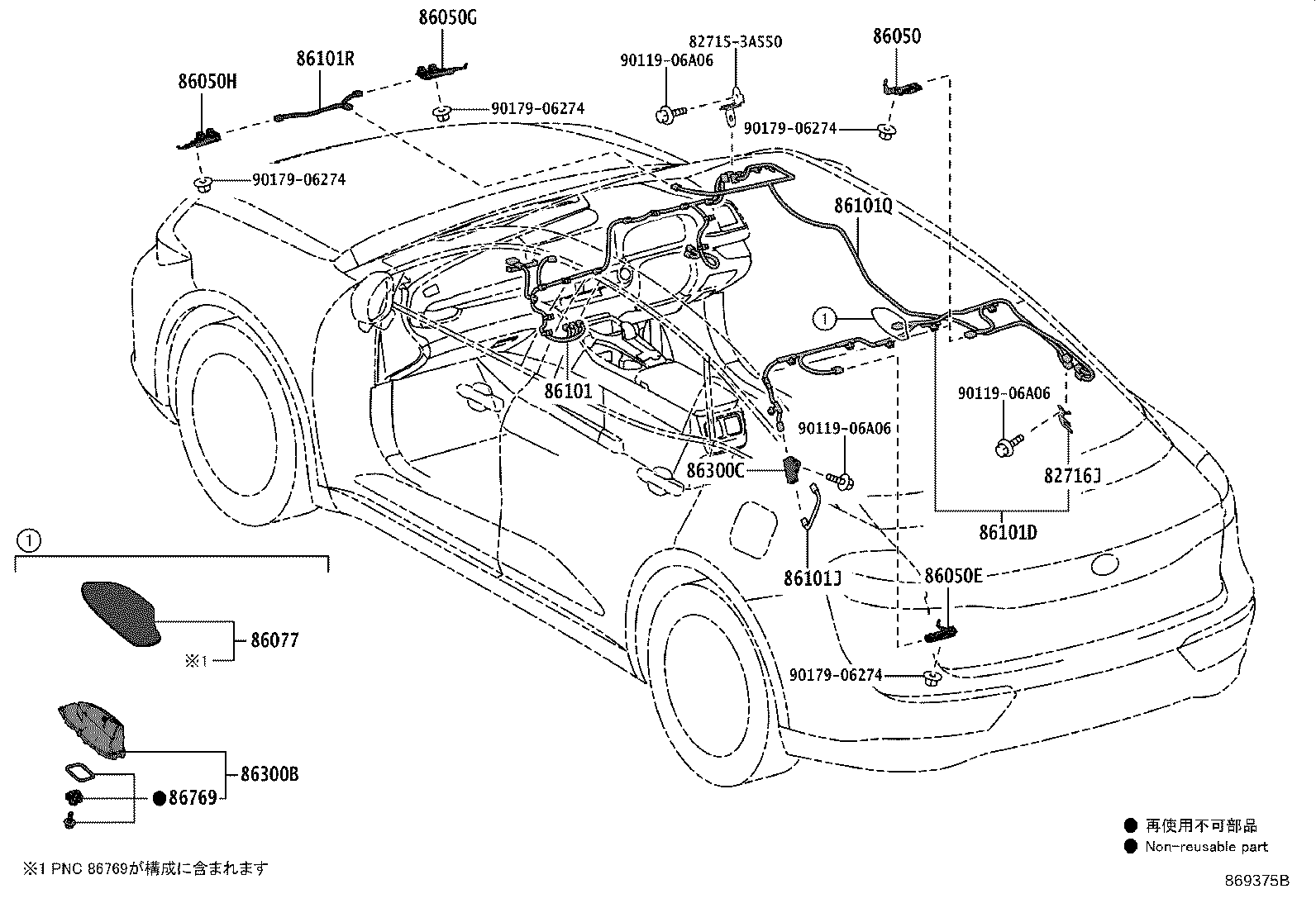

Figure 869375B 869375B 2022-09 → —

Part groups

PNCDescription
82716J Bracket, Wiring Harness Clamp
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86050G Antenna Assy, Television, NO.1 RH
86050H Antenna Assy, Television, NO.1 LH
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
