Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

15 part groups · 2 illustrations

Illustrations

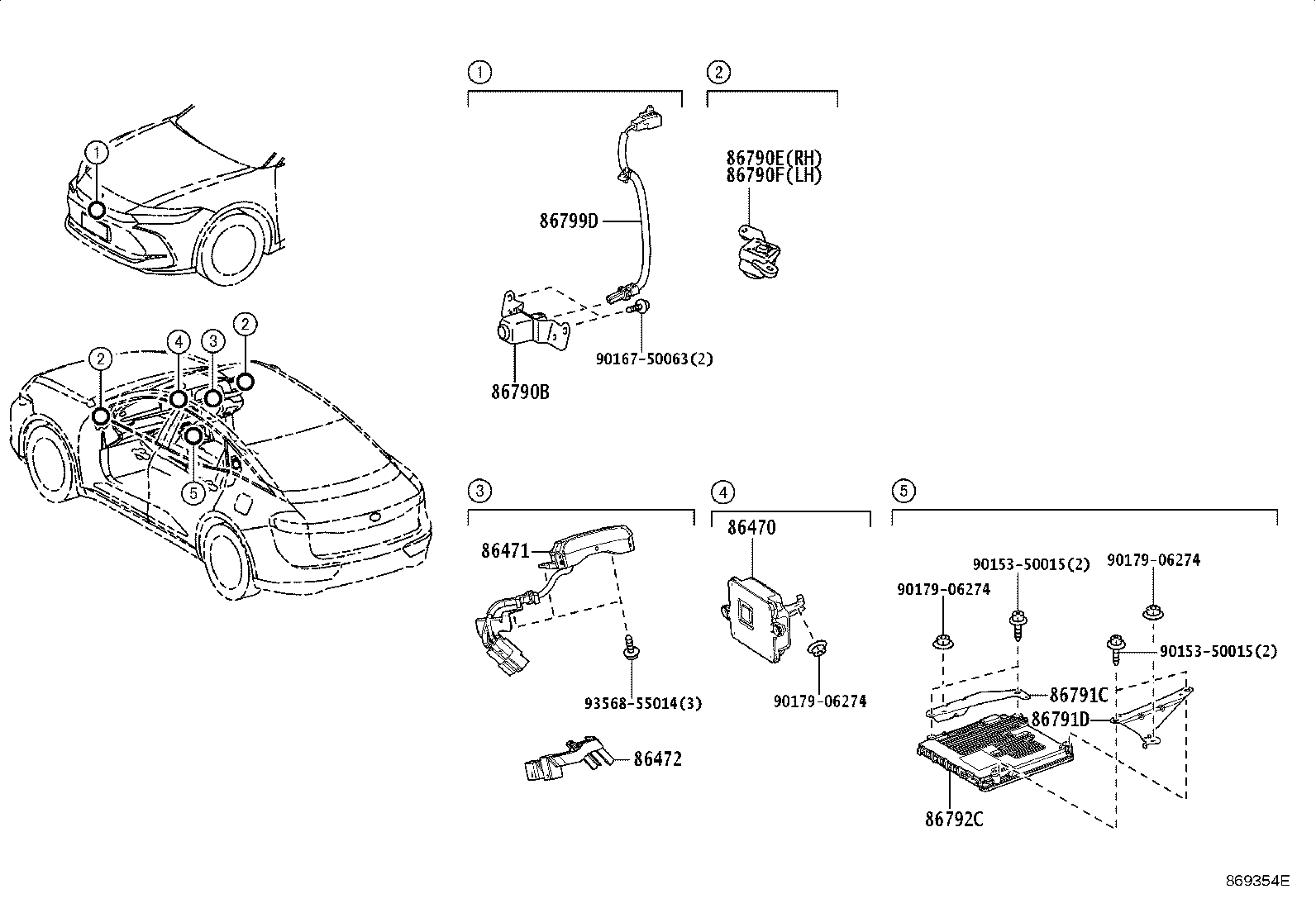

Figure 869354E 869354E 2022-09 → — Figure 86A2I0 86A2I0 2022-09 → —

Part groups

PNCDescription
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86472 Bracket, Driver Monitor
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86790J Camera Assy, Television, Rear NO.2
86791C Bracket, Computer Parking Assist, NO.1
86791D Bracket, Computer Parking Assist, NO.2
86792C Computer, Parking Assist
86799D Wire, Television Camera, Front
86799E Wire, Television Camera, Rear
867A0 Camera Assy, Television & Inner Rear View Mirror
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
