Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

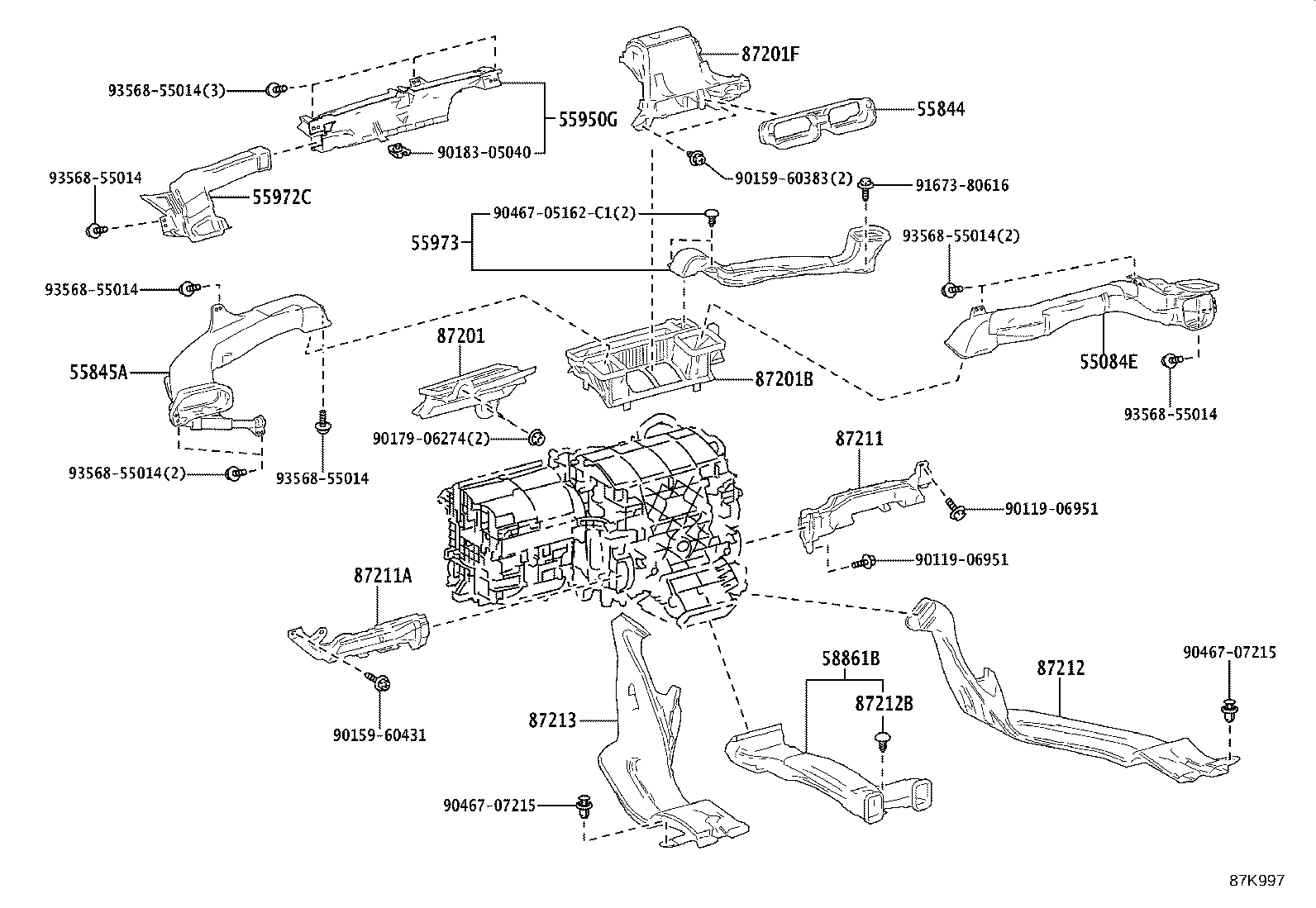

Figure 87K996 87K996 2022-09 → — Figure 87K997 87K997 2022-09 → — Figure 87K998A 87K998A 2022-09 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55972C Duct, Side Defroster Nozzle, NO.2
55973 Duct, Side Defroster Nozzle, NO.3
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87213 Duct, Air, Rear NO.2
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
