Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

13 part groups · 2 illustrations

Illustrations

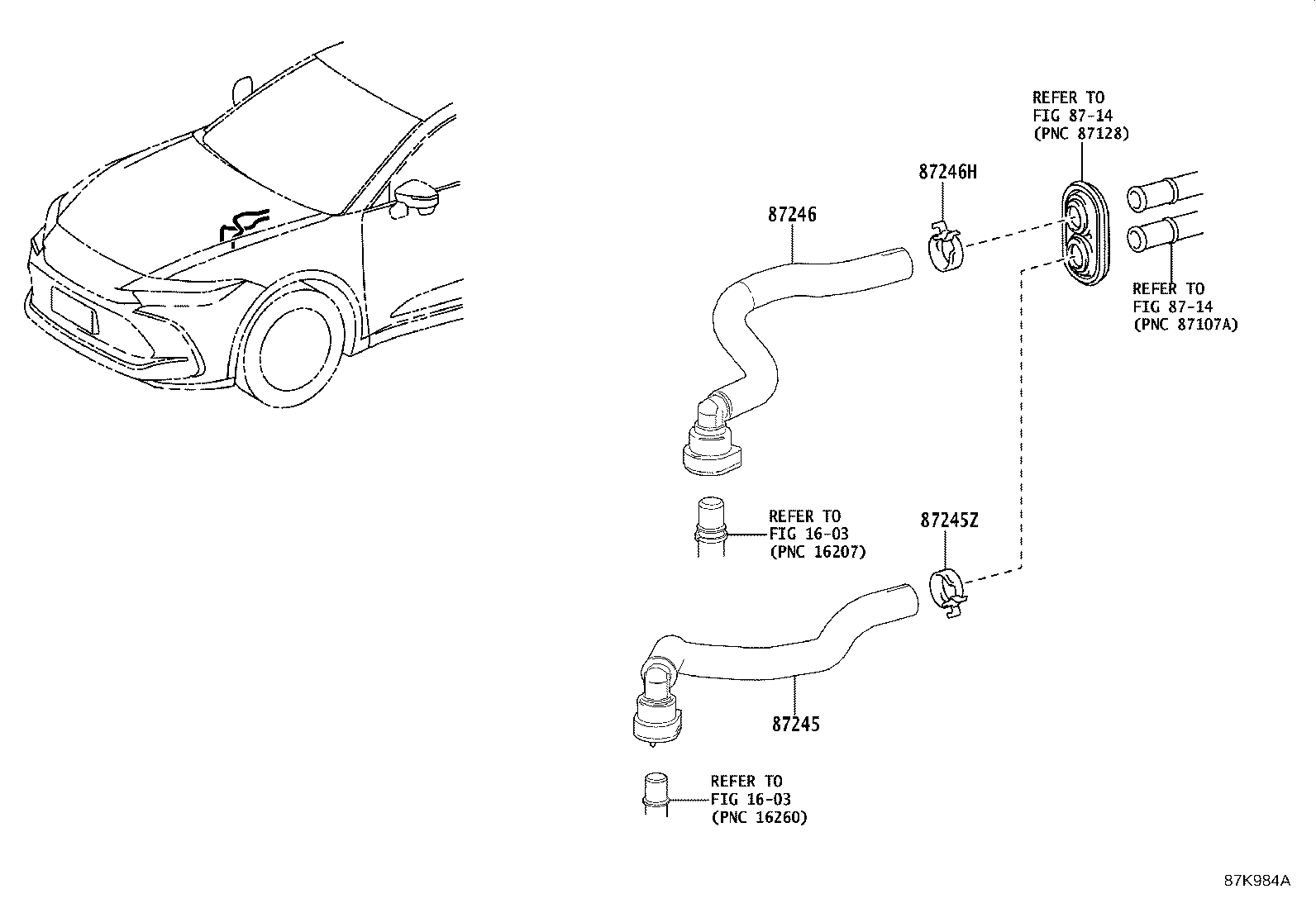

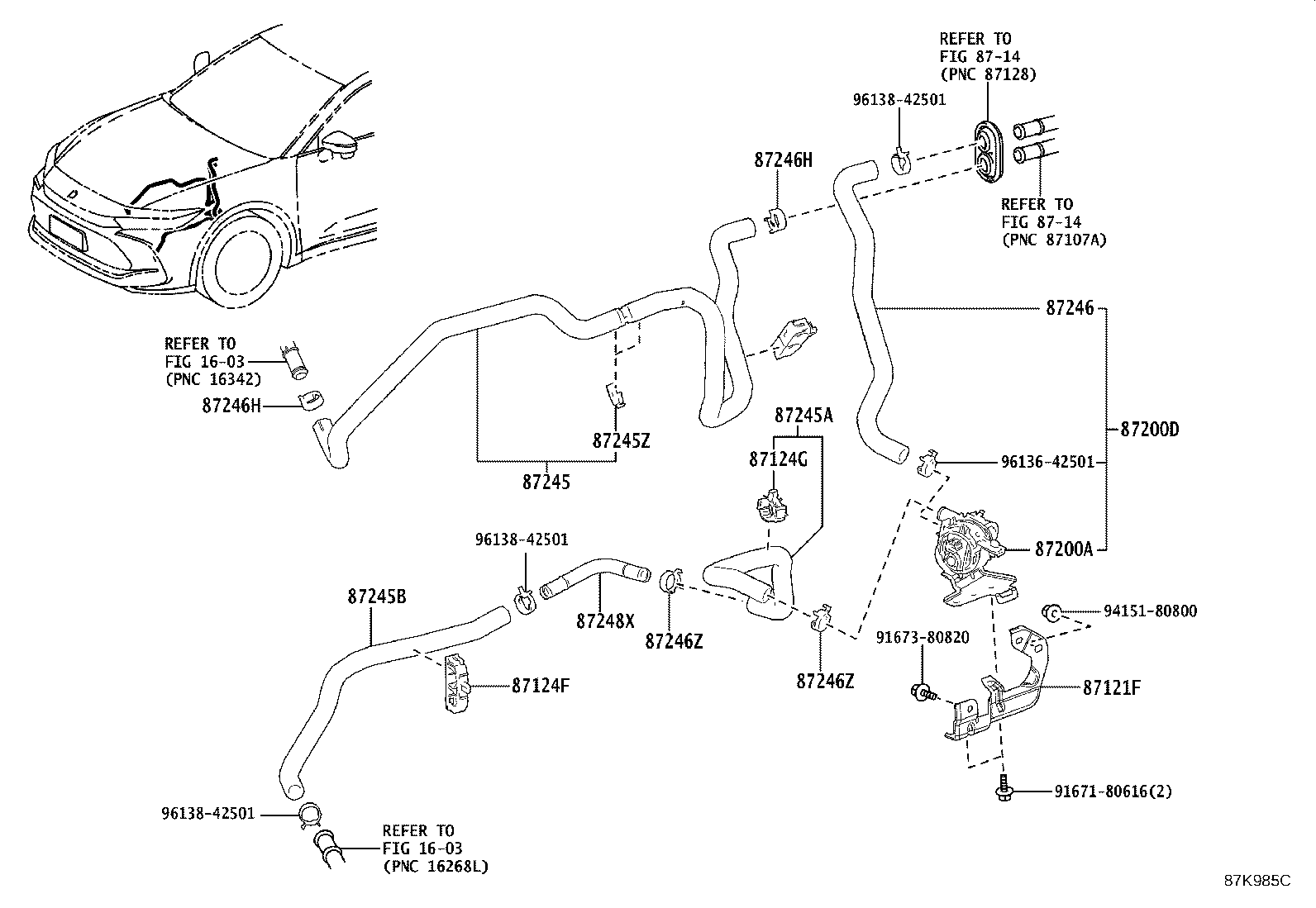

Figure 87K984A 87K984A 2022-09 → — Figure 87K985C 87K985C 2022-09 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87200A Pump Assy, Water(FOR HEATER)
87200D Accessory Assy, Heater
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87246Z Clip
87248X Pipe, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
