Toyota Crown Crossover

2022-07 → present · chassis AZSH35,TZSH35 · catalogue 3311F0 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

3 part groups · 1 illustrations

Illustrations

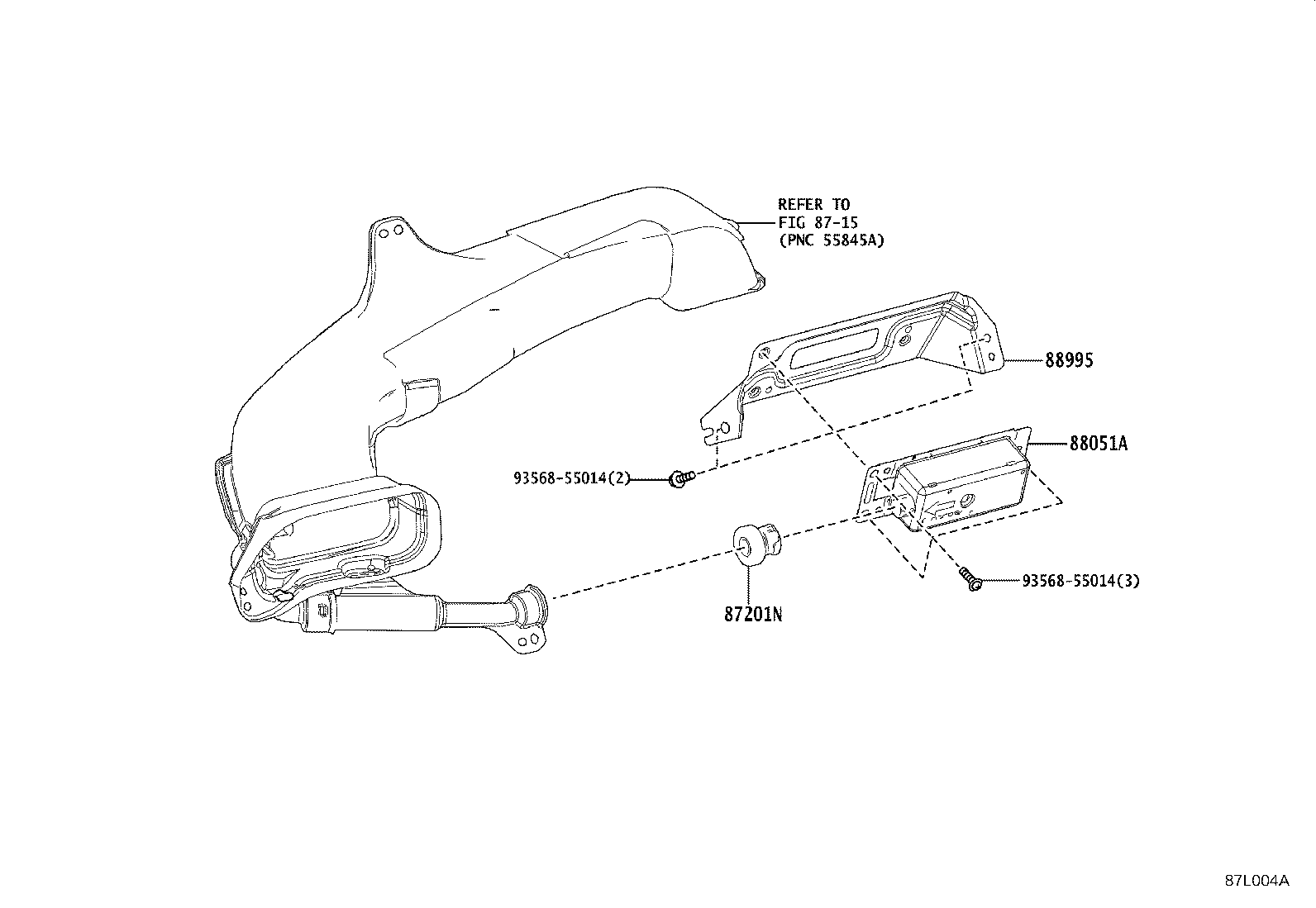

Figure 87L004A 87L004A 2022-09 → —

Part groups

PNCDescription
87201N Duct Sub-assy, Air
88051A Generator Sub-assy,Ion
88995 Bracket,Ion Generator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
