Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

30 part groups · 3 illustrations

Illustrations

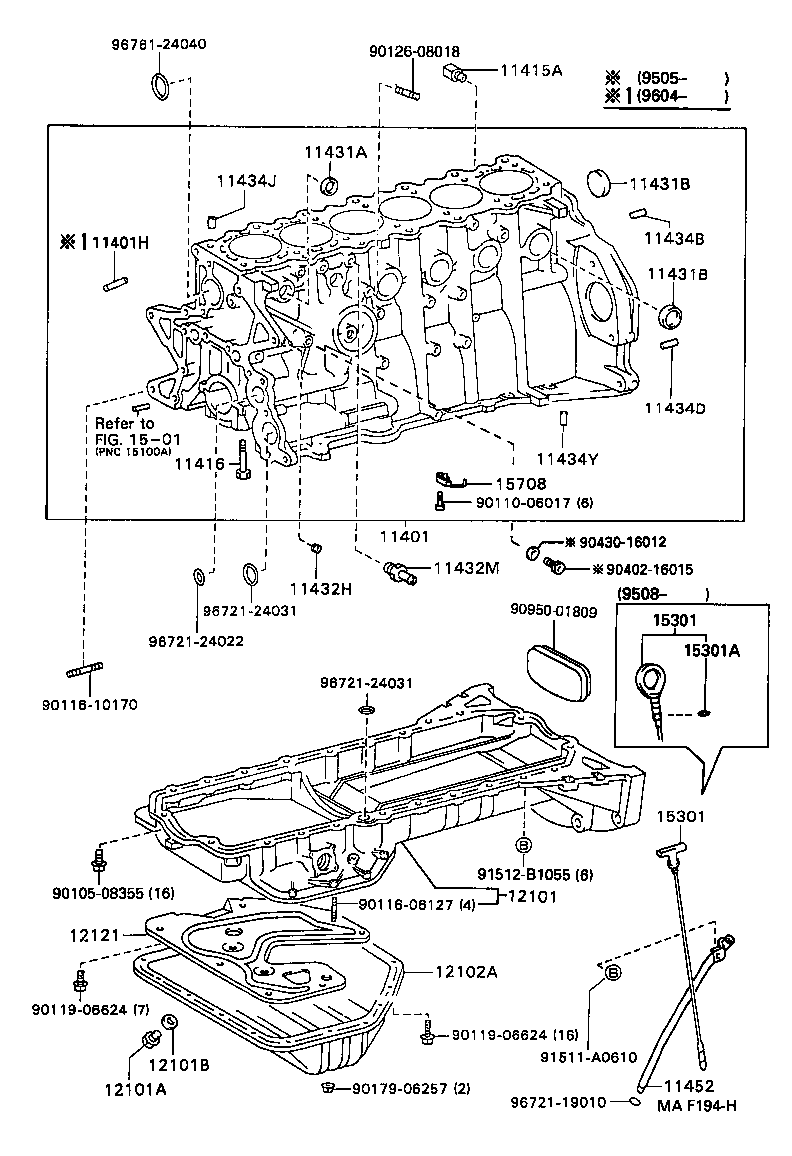

Figure MAK327C MAK327C 1991-10 → 1997-08 Figure MAF194H MAF194H 1991-10 → 1997-08 Figure MAG097B MAG097B 1992-10 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401H Union(FOR CYLINDER BLOCK LLC DRAIN)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432C Plug, W/Head Taper Screw, NO.3
11432H Plug, W/Head Taper Screw, NO.5
11432M Union(FOR CYLINDER BLOCK)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434X Pin, Ring(FOR CHAIN CACE)
11434Y Pin, Straight(FOR OIL PAN)
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11492C Plate, Water Seal
11581 Bolt, Crankshaft Bearing Cap, NO.1
11582 Bolt, Crankshaft Bearing Cap, NO.2
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
