Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

5 part groups · 3 illustrations

Illustrations

Figure MAF038C

MAF038C 1991-10 → 1997-08

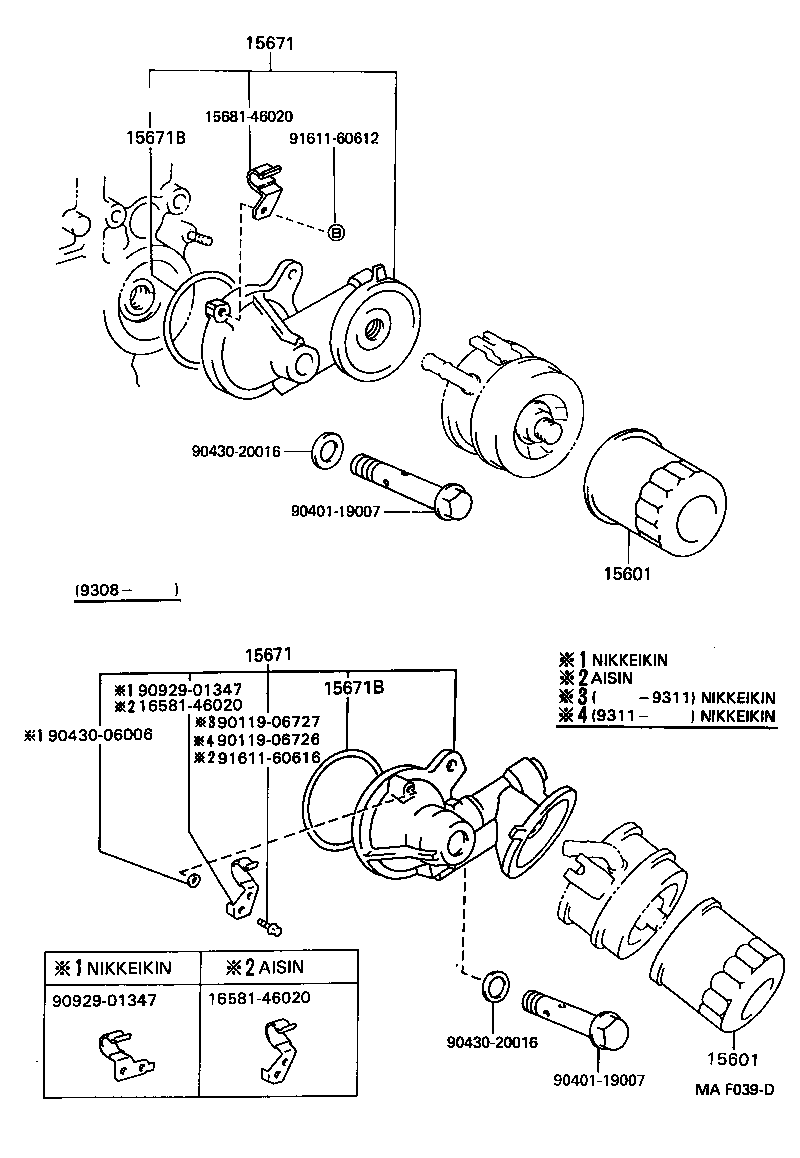

Figure MAF039D

MAF039D 1991-10 → 1997-08

Figure MAE488

MAE488 1992-10 → —

Part groups

PNC	Description
15601	Filter Sub-assy, Oil
15609	Bracket Sub-assy, Oil Filter
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket
15691	Gasket, Oil Filter

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
