Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01
Water Pump

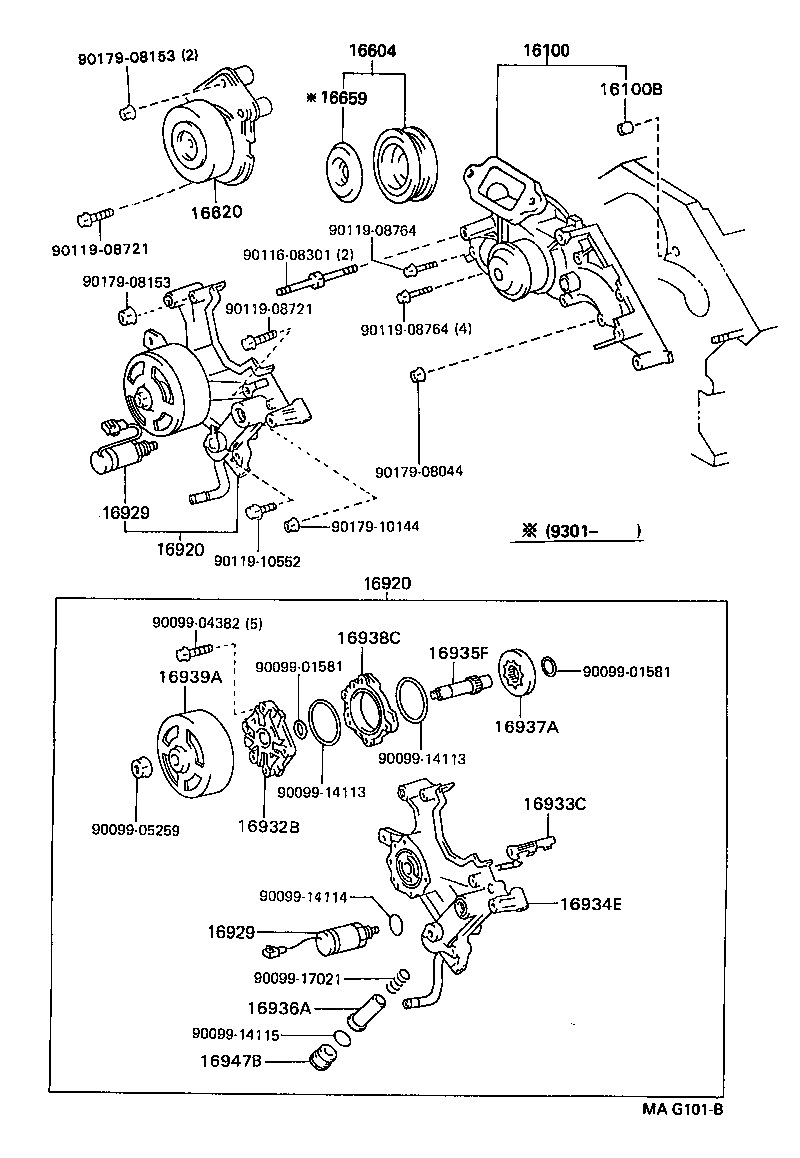

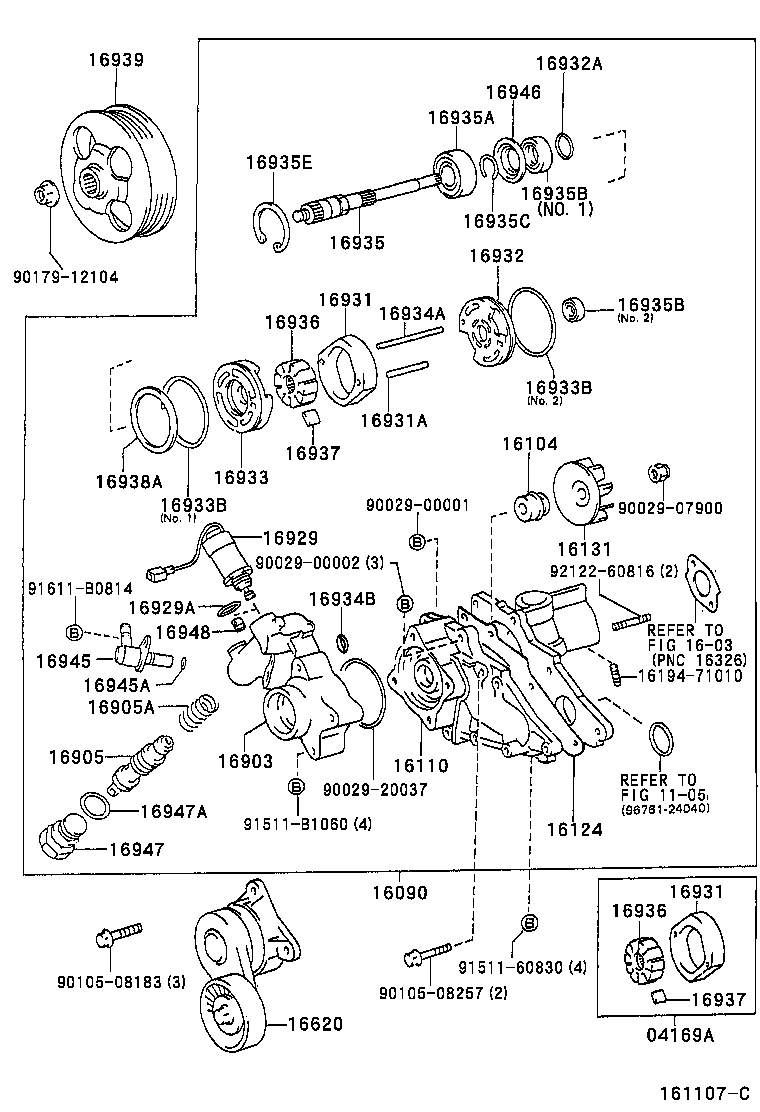

52 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04169A | Rotor Kit, Vane Pump |
| 16090 | Pump Assy, Hydraulic Motor Vane W/O Pulley |
| 16100 | Pump Assy, Engine Water |
| 16100B | Pin, Ring(FOR WATER PUMP SET) |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16124 | Gasket, Water Pump Cover |
| 16131 | Rotor, Water Pump |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16210 | Coupling Assy, Fluid |
| 16371 | Pulley, Fan |
| 16604 | Pulley Sub-assy, Idler, NO.2 |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16659 | Plate, Idler Pulley Cover, NO.2 |
| 16903 | Housing Sub-assy, Hydraulic Motor Pump, Front |
| 16905 | Body Sub-assy, Hydraulic Motor Pump Spool Valve |
| 16905A | Spring, Compression |
| 16920 | Pump Assy, Hydraulic Motor Vane |
| 16929 | Valve, Hydraulic Motor Control |
| 16929A | Ring, O(FOR HYDRAULIC MOTOR CONTROL VALVE) |
| 16931 | Ring, Hydraulic Motor Vane Pump Cam |
| 16931A | Pin, Straight |
| 16932 | Plate, Thrust |
| 16932A | Ring, O(FOR THRUST PLATE) |
| 16932B | Cover Sub-assy, Hydraulic Motor Gear |
| 16933 | Plate, Pressure |
| 16933B | Ring, O(FOR PRESSURE PLATE) |
| 16933C | Plate, Connector Holder |
| 16934A | Pin, Straight |
| 16934B | Ring, O(FOR HIDRAULIC MOTOR PUMP FRONT HOUSING) |
| 16934E | Housing Sub-assy, Hydraulic Motor Gear |
| 16935 | Shaft, Hydraulic Motor Vane Pump Draive |
| 16935A | Bearing, Radial Ball(FOR HYD MOTOR VANE PUMP DRIVE SHAFT) |
| 16935B | Seal, Oil(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) |
| 16935C | Ring, Shaft Spring(FOR HYD MOTOR VANE PUMP DRIVE SHAFT) |
| 16935E | Ring, Snap(FOR HYDRAULIC MOTOR VANE PUMP DRIVE SHAFT) |
| 16935F | Shaft, Hydraulic Motor Gear |
| 16936 | Rotor, Hydraulic Motor Vane Pump |
| 16936A | Valve, Hydraulic Motor Gear |
| 16937 | Vane, Hydraulic Motor Vane Pump |
| 16937A | Gear Set,Oil Pump |
| 16938A | Washer Wave(FOR HYDRAULIC MOTOR VANE PUMP PULLEY SEAT) |
| 16938C | Casing, Hydraulic Motor Gear |
| 16939 | Pulley, Hydraulic Motor Vane Pump |
| 16939A | Pulley, Hydraulic Motor Gear |
| 16945 | Union, Hydraulic Motor Vane Pump Suction Port |
| 16945A | Ring, O(FOR SUCTION PORT UNION) |
| 16946 | Retainer, Oil Seal |
| 16947 | Plug, Hydraulic Motor Vane Pump Screw |
| 16947A | Ring, O(FOR SCREW PLUG) |
| 16947B | Plug, End |
| 16948 | Filter, Hydraulic Motor Vane Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
