Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01

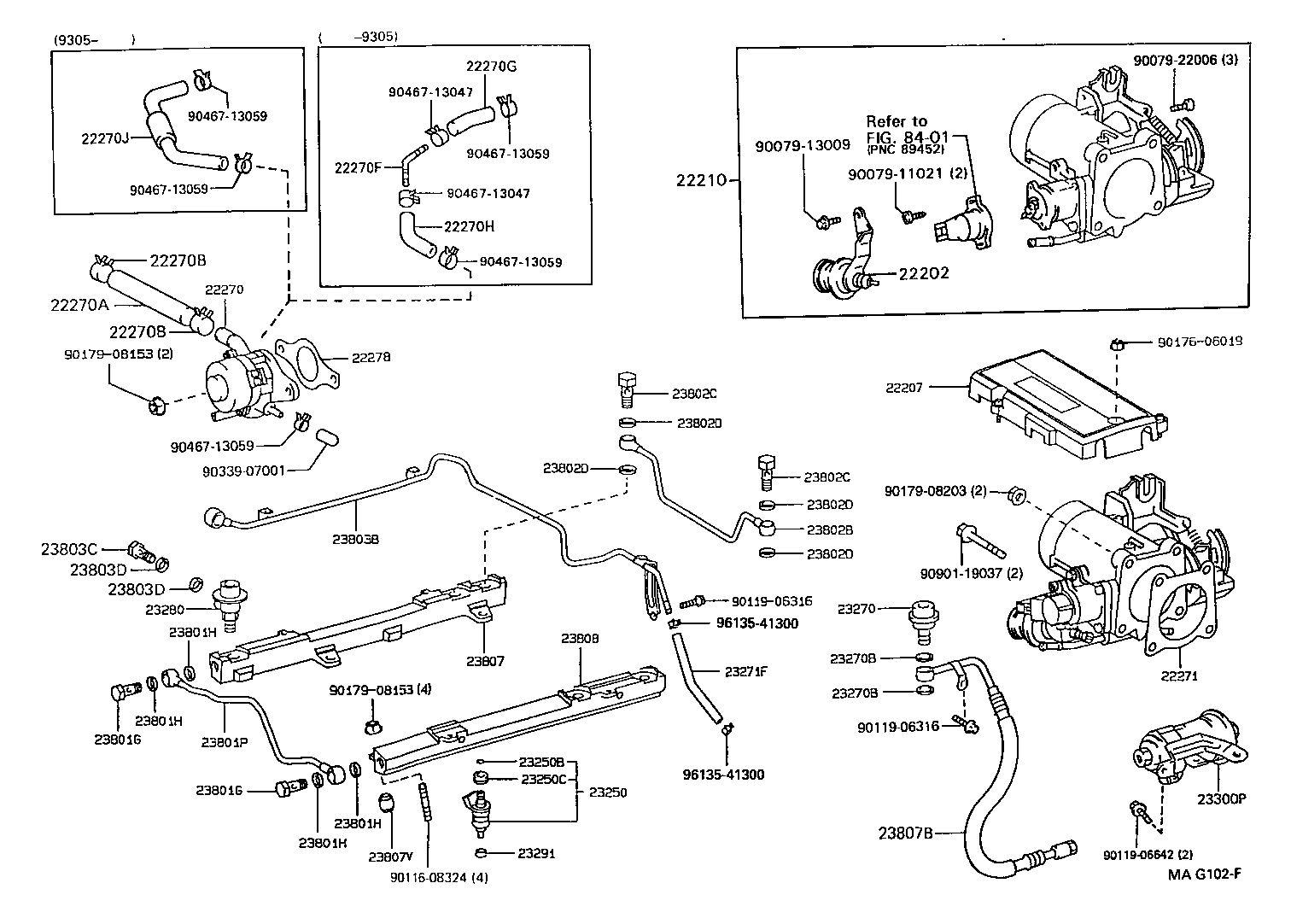

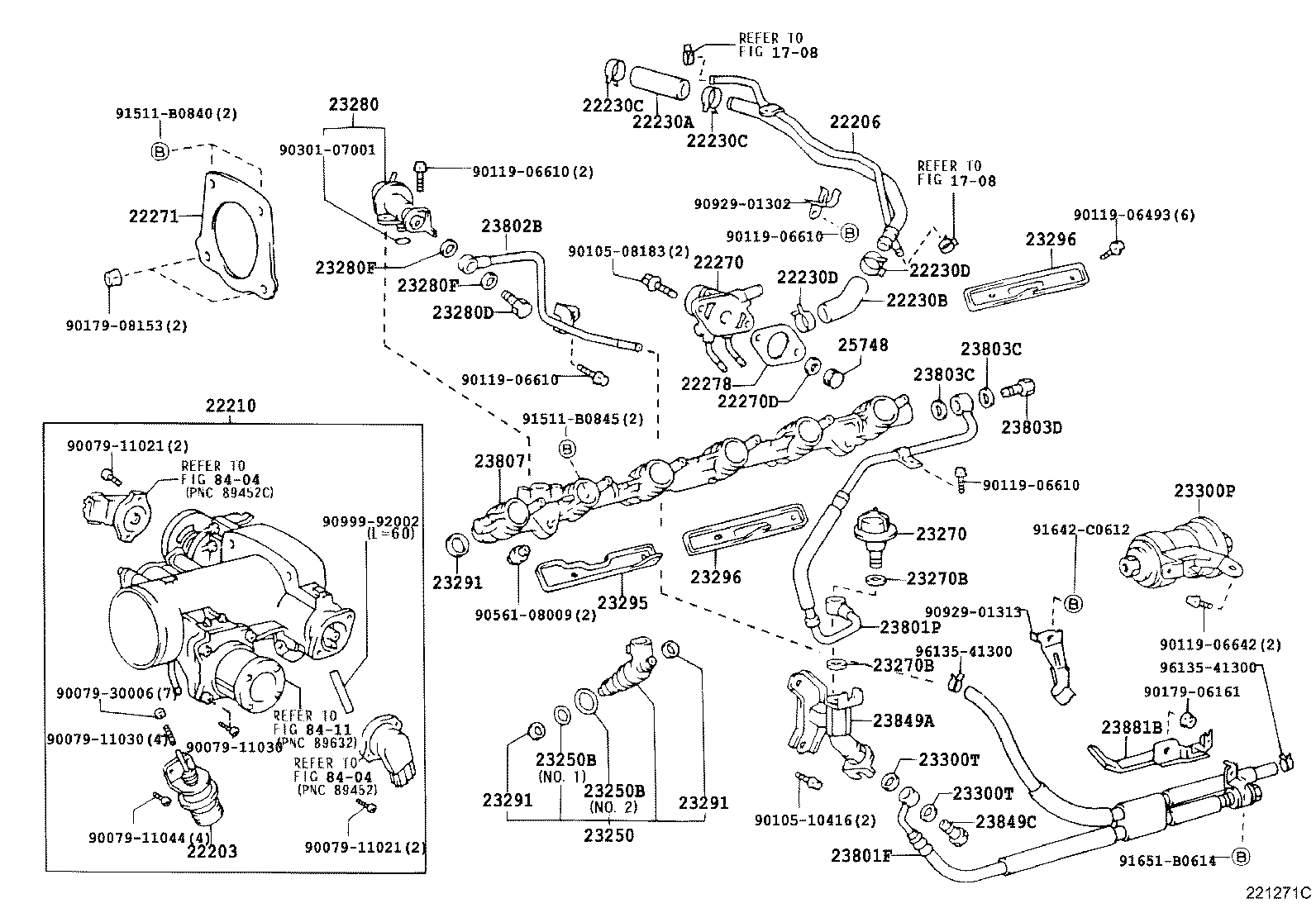

Fuel Injection System
61 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 22202 | Dash Pot Sub-assy |
| 22203 | Dash Pot Sub-assy(FOR THROTTLE BODY) |
| 22206 | Pipe Sub-assy, Idle Speed Control |
| 22207 | Cover Sub-assy, Throttle Body |
| 22210 | Body Assy, Throttle |
| 22230A | Hose, Auxiliary Air Valve, NO.1 |
| 22230B | Hose, Auxiliary Air Valve, NO.2 |
| 22230C | Clip, Auxiliary Air Valve Hose, NO.1 |
| 22230D | Clip, Auxiliary Air Valve Hose, NO.2 |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22270A | Hose, Air, NO.1(FOR IDLE SPEED CONTROL VALVE) |
| 22270B | Clip(FOR AIR HOSE) |
| 22270D | Washer, Seal(FOR IDLE SPEED CONTROL VALVE) |
| 22270F | Pipe, Water, NO.1(FOR IDLE SPEED CONTROL VALVE) |
| 22270G | Hose, Water, NO.1(FOR IDLE SPEED CONTROL VALVE) |
| 22270H | Hose, Water, NO.2(FOR IDLE SPEED CONTROL VALVE) |
| 22270J | Hose, Water, NO.3(FOR IDEL SPEED CONTROL VALVE) |
| 22271 | Gasket, Throttle Body |
| 22278 | Gasket, Idle Speed Control Valve |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23239 | Hose |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23271F | Hose, Fuel |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280D | Bolt, Union(FOR FUEL PIPE OR HOSE SET) |
| 23280F | Gasket(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23295 | Holder, Injector, NO.1 |
| 23296 | Holder, Injector, NO.2 |
| 23300P | Filter, Fuel(FOR EFI) |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23801F | Hose, Fuel, NO.1 |
| 23801G | Bolt, Union(FOR FUEL PIPE) |
| 23801H | Gasket(FOR FUEL PIPE) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802B | Pipe Sub-assy, Fuel, NO.2 |
| 23802C | Bolt, Union(FOR FUEL PIPE NO.2) |
| 23802D | Gasket(FOR FUEL PIPE NO.2) |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23803C | Gasket(NOZZLE LEKAGE PIPE NO.3) |
| 23803D | Bolt, Union(FOR NOZZLE LEKAGE PIPE NO.3) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807B | Hose, Fuel Delivery Pipe |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23808 | Pipe Sub-assy, Fuel Delivery, NO.2 |
| 23849A | Support, Fuel Pipe |
| 23849C | Bolt, Union(FOR FUEL PIPE SUPPORT) |
| 23881B | Bracket, Fuel Hose |
| 25748 | Valve, Check(FOR IDLE SPEED CONTROL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
