Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01

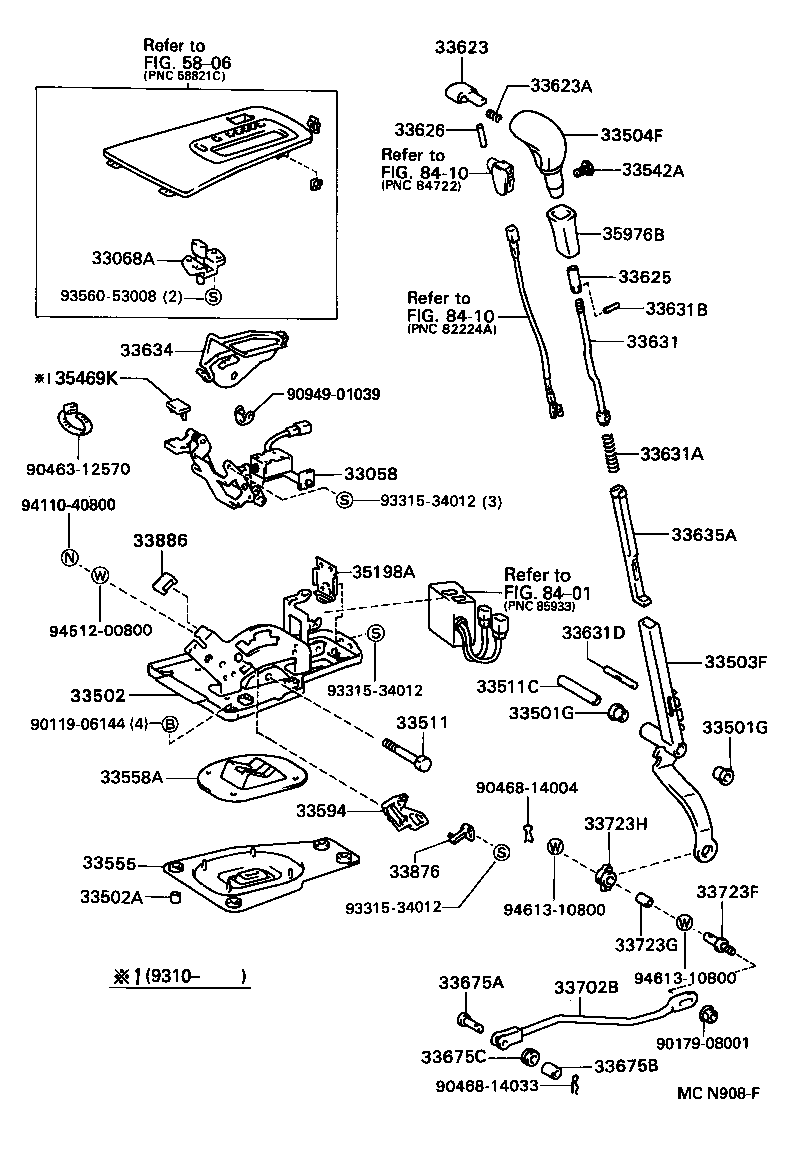

Shift Lever & Retainer
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33058 | Bracket Sub-assy, Shift Lock Solenoid |
| 33068A | Button Sub-assy, Shift Lock Release(FOR FLOOR SHIFT) |
| 33501G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33502 | Plate Sub-assy, Shift Lever |
| 33502A | Collar (FOR FLOOR SHIFT SETTING) |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511C | Collar (FOR CONTROL SHAFT) |
| 33542A | Screw, W/Washer(FOR SPRING BACK SHIFT LEVER KNOB) |
| 33555 | Boot, Shift Lever |
| 33558A | Seal, Shift Lever Boot Dust, NO.1 |
| 33594 | Plate, Shift Lock (FOR FLOOR SHIFT) |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33626 | Stopper, Shift Lever Button |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631B | Pin, Slotted Spring (FOR DETENT ROD) |
| 33631C | Ring, E (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33631E | Roller (FOR DETENT ROD) |
| 33634 | Protector, Wire |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33675C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723G | Bush (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33723H | Grommet (FOR FLOOR SHIFT CONTROL SHAFT) |
| 33876 | Guide, Shift Lock Plate |
| 33886 | Stopper, Shift Lever |
| 35198A | Bracket, Wire Harness Clamp, NO.4 |
| 35469K | Spacer, Floor Shift Lever Shift Lock Release Button |
| 35976B | Cover, Shift Lever Knob (FOR FLOOR SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
