Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

30 part groups · 3 illustrations

Illustrations

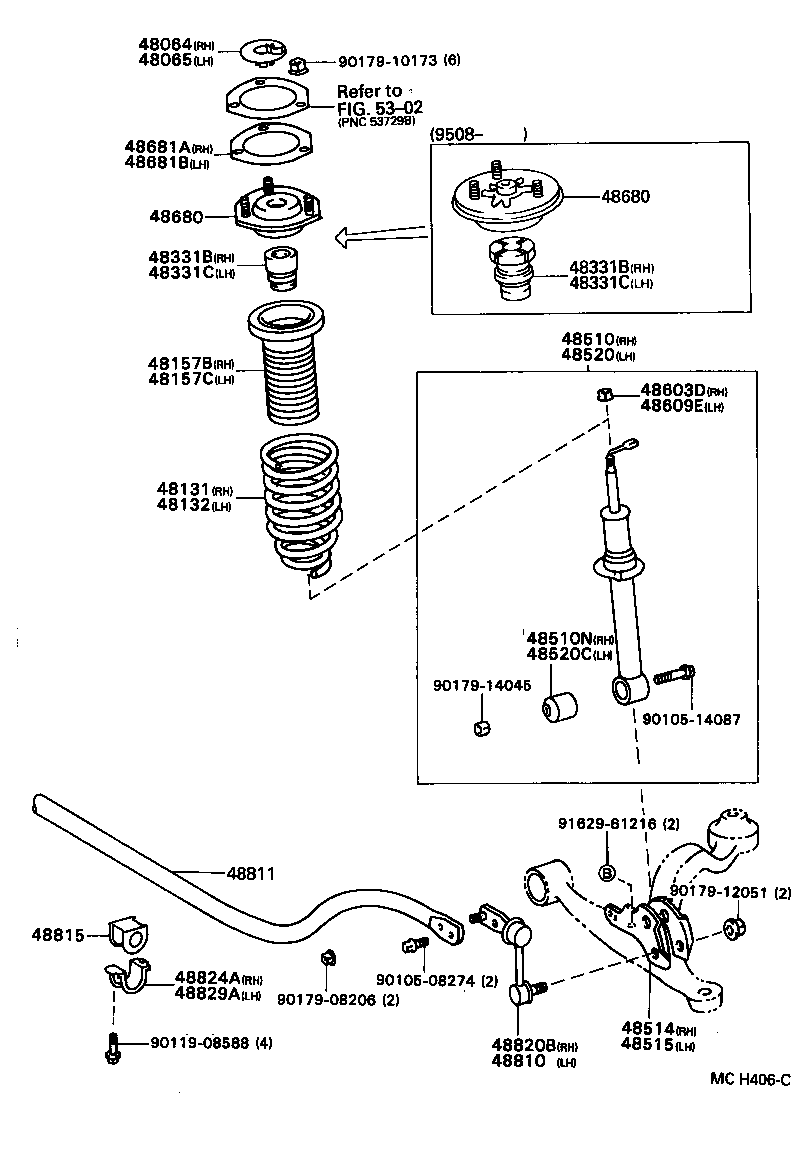

Figure 482530 482530 1991-10 → — Figure MCH406C MCH406C 1991-10 → — Figure MCN879D MCN879D 1992-10 → —

Part groups

PNCDescription
48010 Cylinder Assy, Pneumatic, Front RH W/Shock Absorber
48020 Cylinder Assy, Pneumatic, Front LH W/Shock Absorber
48064 Cover Sub-assy, Front Suspension Support, RH
48065 Cover Sub-assy, Front Suspension Support, LH
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48514 Bracket, Front Shock Absorber, Lower RH
48515 Bracket, Front Shock Absorber, Lower LH
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48580B Cap Assy, Front Shock Absorber, RH
48590A Cap Assy, Front Shock Absorber, LH
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680 Support Assy, Front Suspension
48681A Gasket, Front Suspension Support, RH
48681B Gasket, Front Suspension Support, LH
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820 Link Assy, Front Stabilizer
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
