Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

34 part groups · 4 illustrations

Illustrations

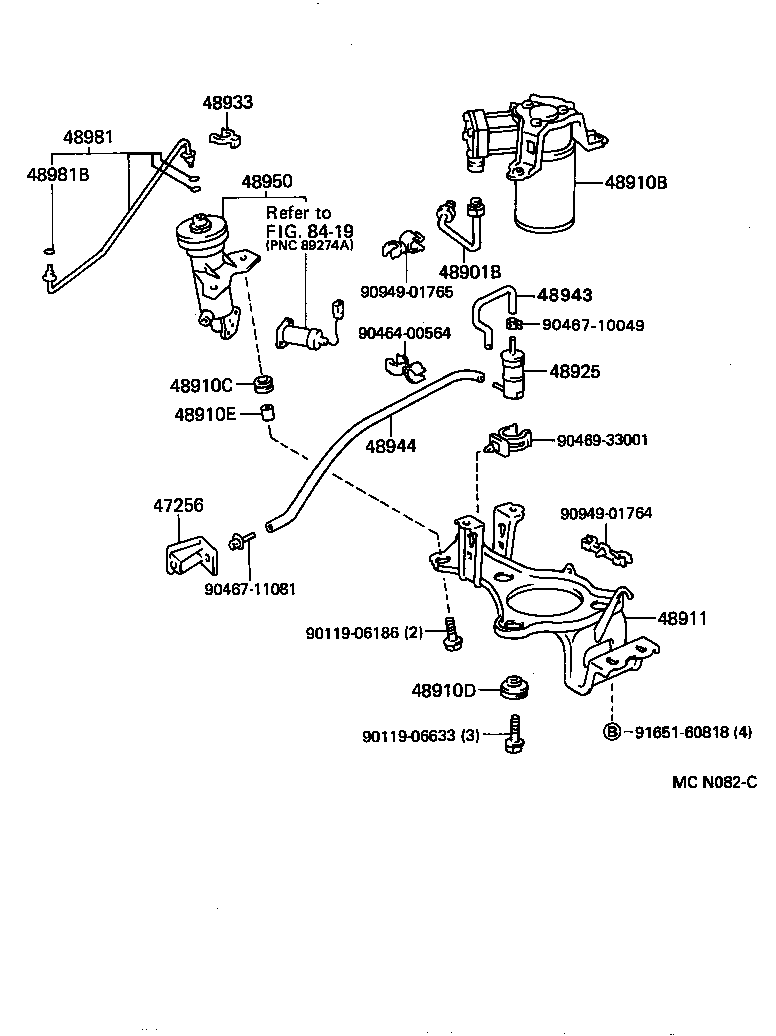

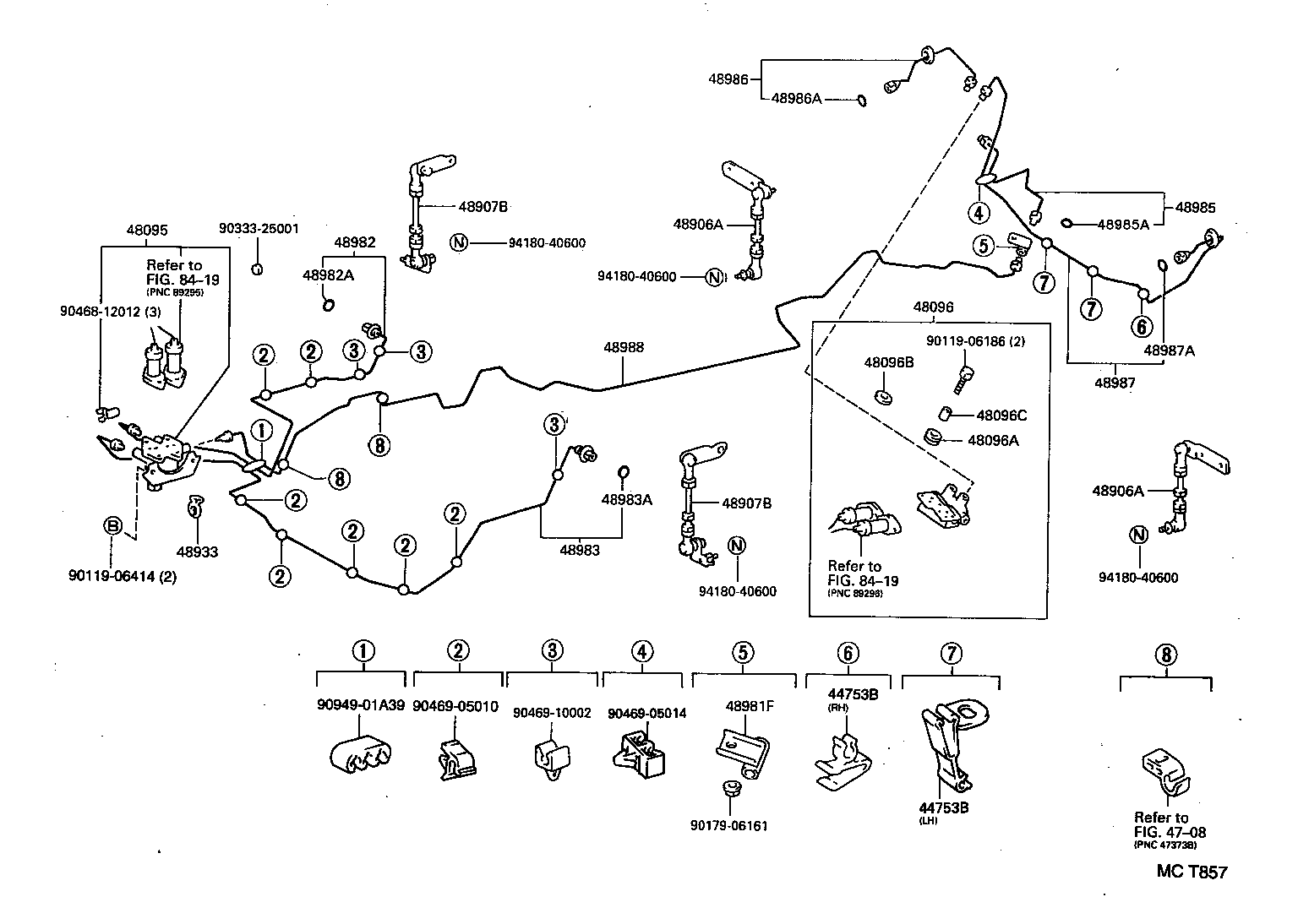

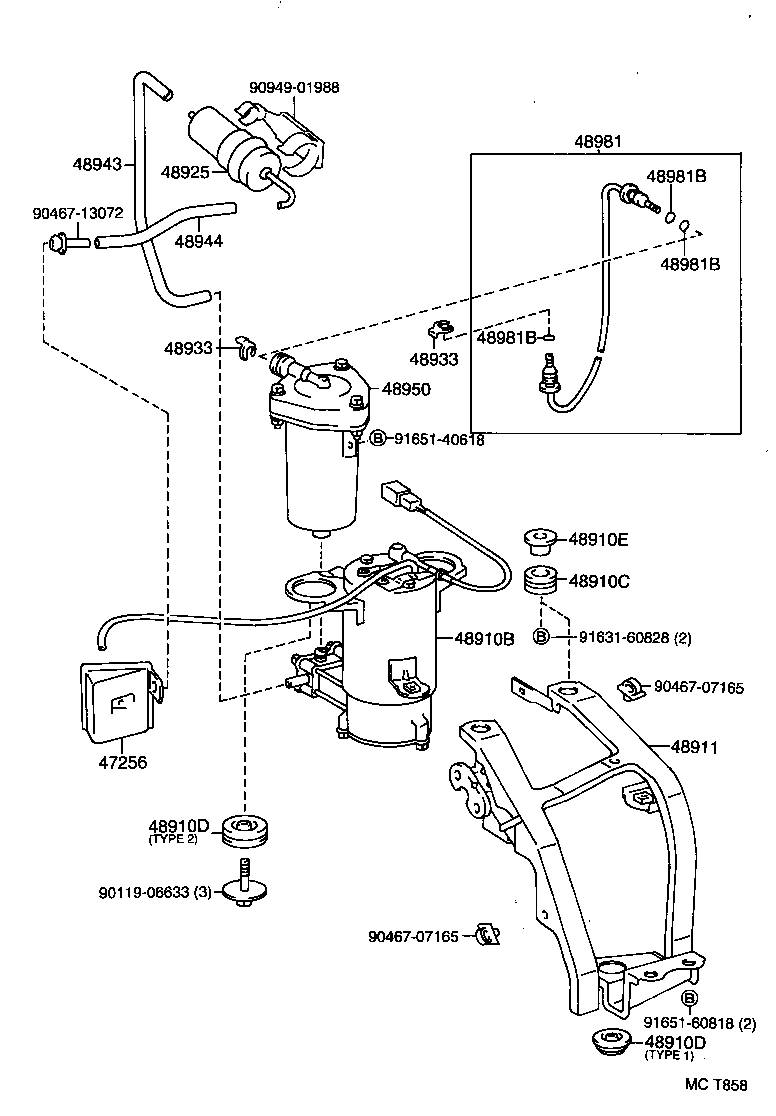

Figure MCM448D MCM448D 1992-10 → 1995-08 Figure MCT857 MCT857 1995-08 → — Figure MCN082C MCN082C 1992-10 → 1995-08 Figure MCT858 MCT858 1995-08 → —

Part groups

PNCDescription
44753B Clamp, Height Control Tube, NO.1
47256 Grommet, Cap
48095 Valve Sub-assy, Height Control, NO.1
48096 Valve Sub-assy, Height Control, NO.2
48096A Bush, NO.2(FOR HEIGHT CONTROL VALVE)
48096B Cushion, NO.2(FOR HEIGHT CONTROL VALVE)
48096C Spacer, NO.2(FOR HEIGHT CONTROL VALVE)
48901B Hose, Flexible(FOR HEIGHT CONTROL COMPRESSOR)
48906A Link Sub-assy, Height Control Sensor, Rear
48907B Link Sub-assy, Height Control Sensor, Front
48910B Compressor Assy, Height Control
48910C Bush, NO.1(FOR HEIGHT CONTROL COMPRESSOR)
48910D Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR)
48910E Spacer(FOR HEIGHT CONTROL COMPRESSOR)
48911 Bracket, Height Control Compressor
48925 Filter, Height Control
48933 Holder, Air Connector Clip
48943 Hose, Height Control, NO.1
48944 Hose, Height Control, NO.2
48950 Dryer Assy, Height Control
48981 Tube, Height Control, NO.1
48981B Ring, O(FOR HEIGHT CONTROL TUBE NO.1)
48981F Way, NO.1(FOR HEIGHT CONTROL TUBE)
48982 Tube, Height Control, NO.2
48982A Ring, O(FOR HEIGHT CONTROL TUBE NO.2)
48983 Tube, Height Control, NO.3
48983A Ring, O(FOR HEIGHT CONTROL TUBE NO.3)
48985 Tube, Height Control, NO.5
48985A Ring, O(FOR HEIGHT CONTROL TUBE NO.5)
48986 Tube, Height Control, NO.6
48986A Ring, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987 Tube, Height Control, NO.7
48987A Ring, O(FOR HEIGHT CONTROL NO.7 TUBE)
48988 Tube, Height Control, NO.8
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
