Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01

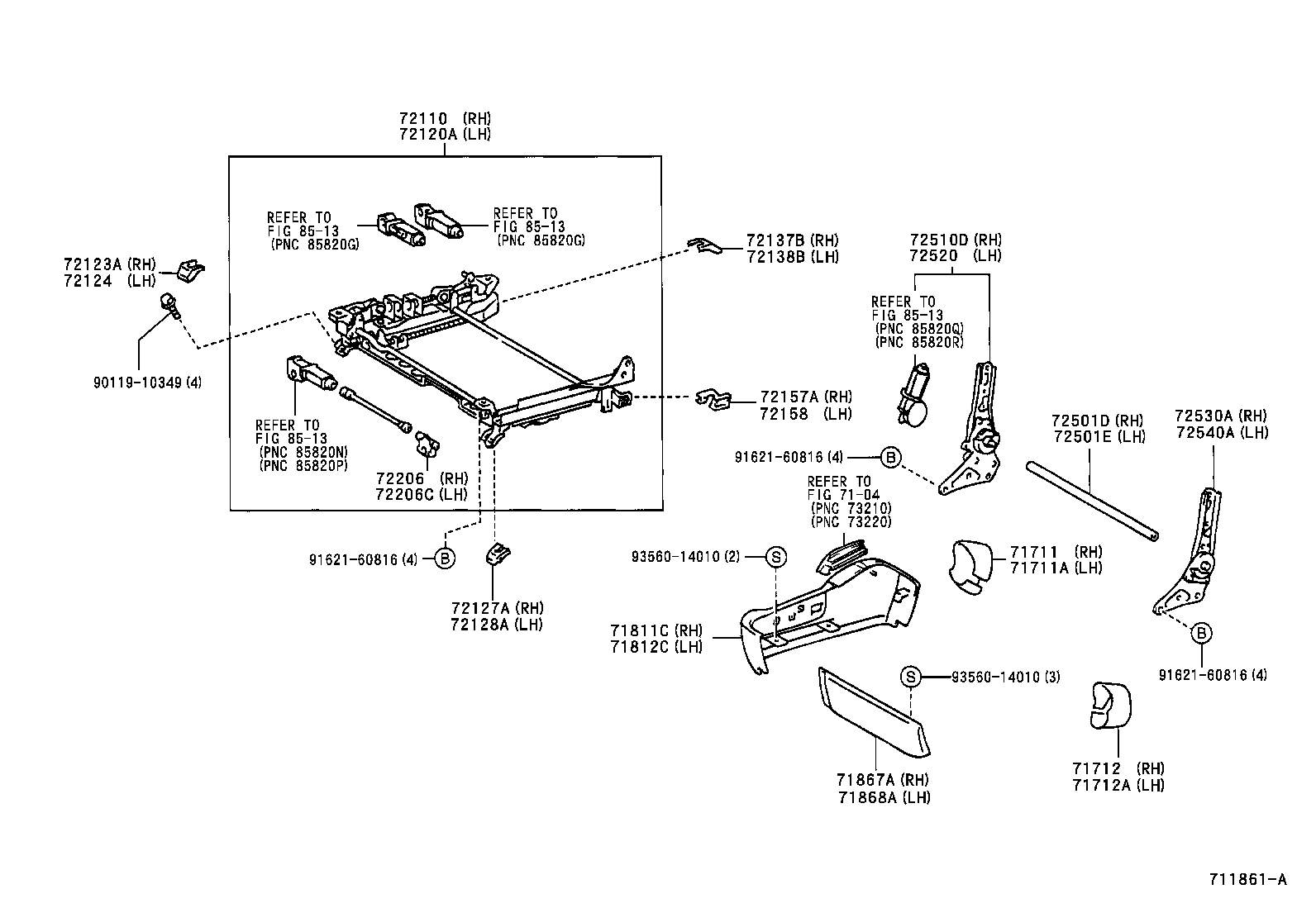

Front Seat & Seat Track
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71711 | Leather, For Seat, A RH |
| 71711A | Leather, For Seat, A LH |
| 71712 | Leather, For Seat, B RH |
| 71712A | Leather, For Seat, B LH |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71910A | Headrest Assy, Front Seat |
| 71920A | Headrest Assy, Front Seat, LH |
| 71931 | Support, Front Seat Headrest |
| 72110 | Regulator Assy, Power Seat, RH |
| 72120A | Regulator Assy, Power Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72206 | Housing Sub-assy, Power Seat, NO.2 |
| 72206C | Housing Sub-assy, Power Seat, NO.2 |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72510D | Adjuster Assy, Reclining Seat, Outer RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72530A | Adjuster Assy, Reclining Seat, Inner RH |
| 72540A | Adjuster Assy, Reclining Seat, Inner LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
