Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01

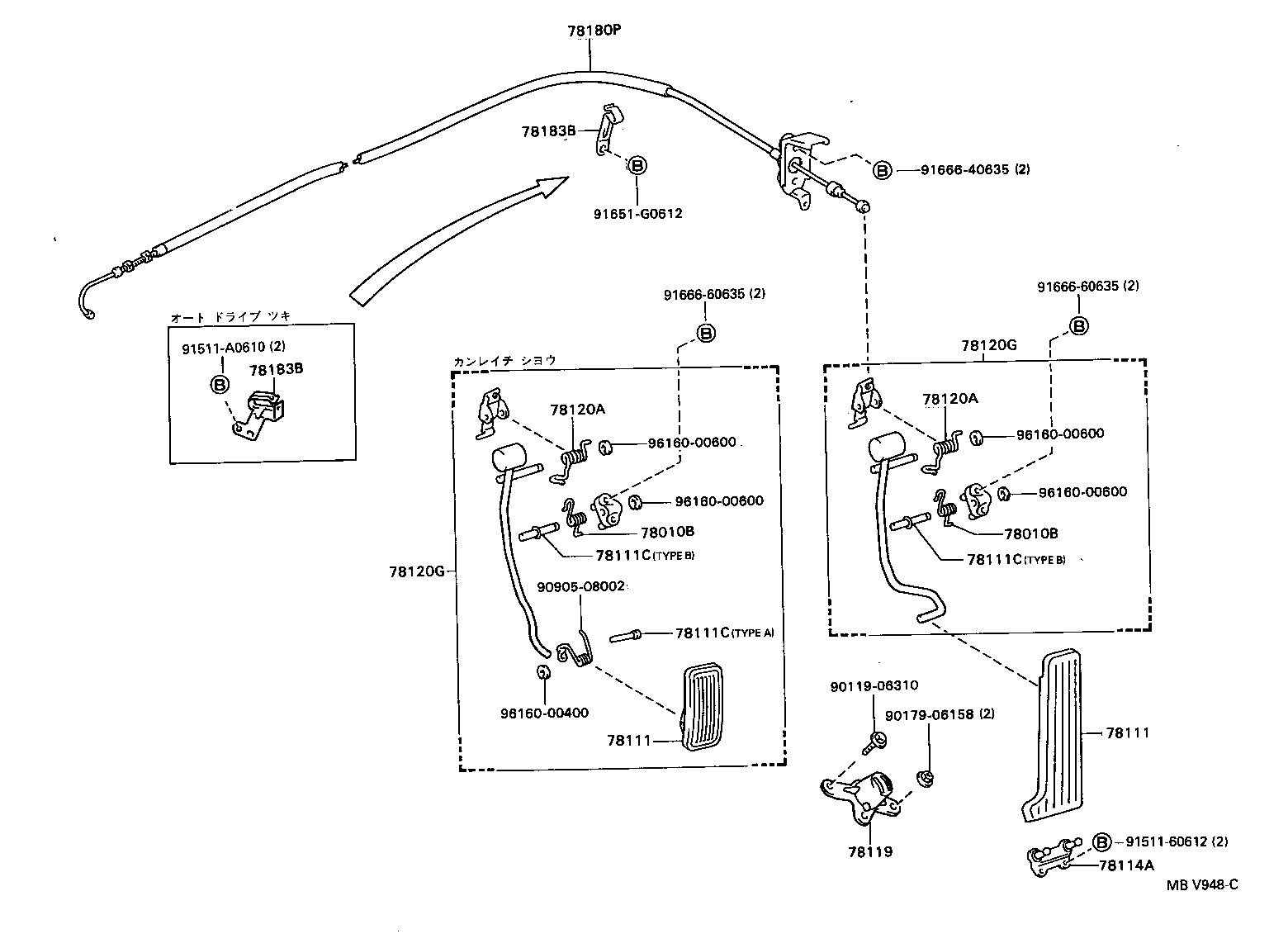

Accelerator Link
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 78010B | Spring, Torsion (FOR ACCELERATOR LINK) |
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78111 | Pedal, Accelerator |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78114A | Bracket, Accelerator Pedal Support |
| 78119 | Stopper, Accelerator Pedal Rod |
| 78120A | Spring, Compression (FOR ACCELERATOR LINK ROD) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
