Toyota Aristo
1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan
Discontinued model
Data version 1998-01
Wiring & Clamp
32 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 64166C | Cover, Upper Back Panel Hole, NO.2 |

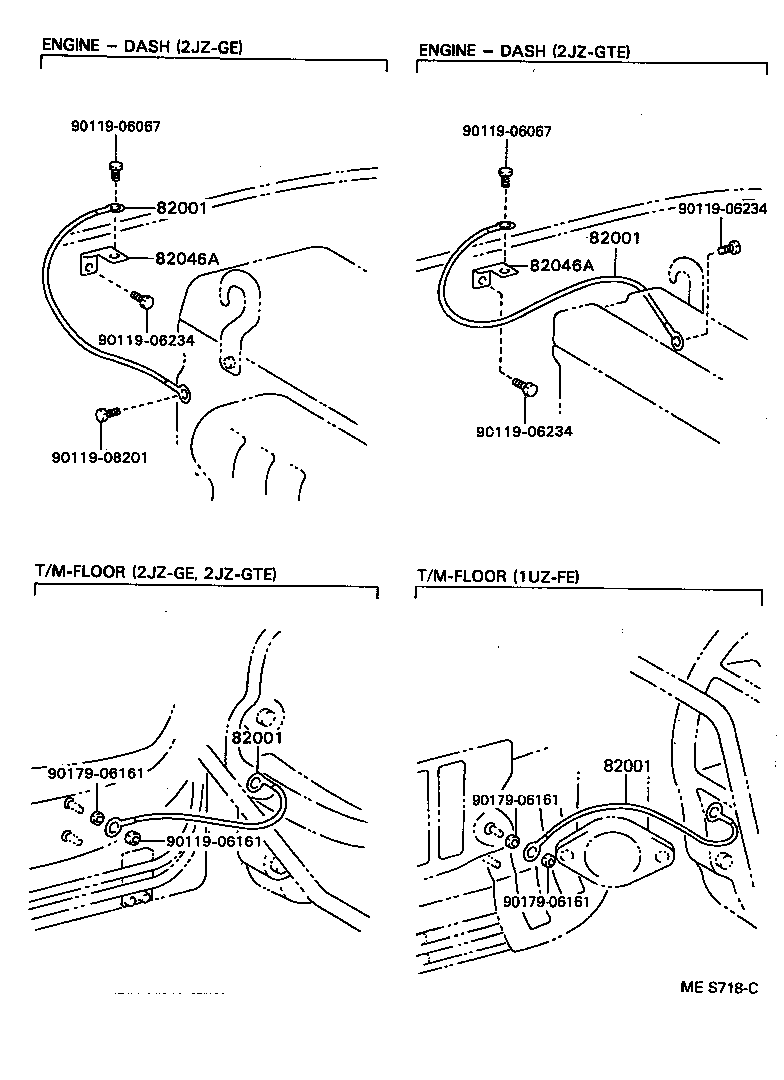

| 82001 | Cable, Bond, NO.1 |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |

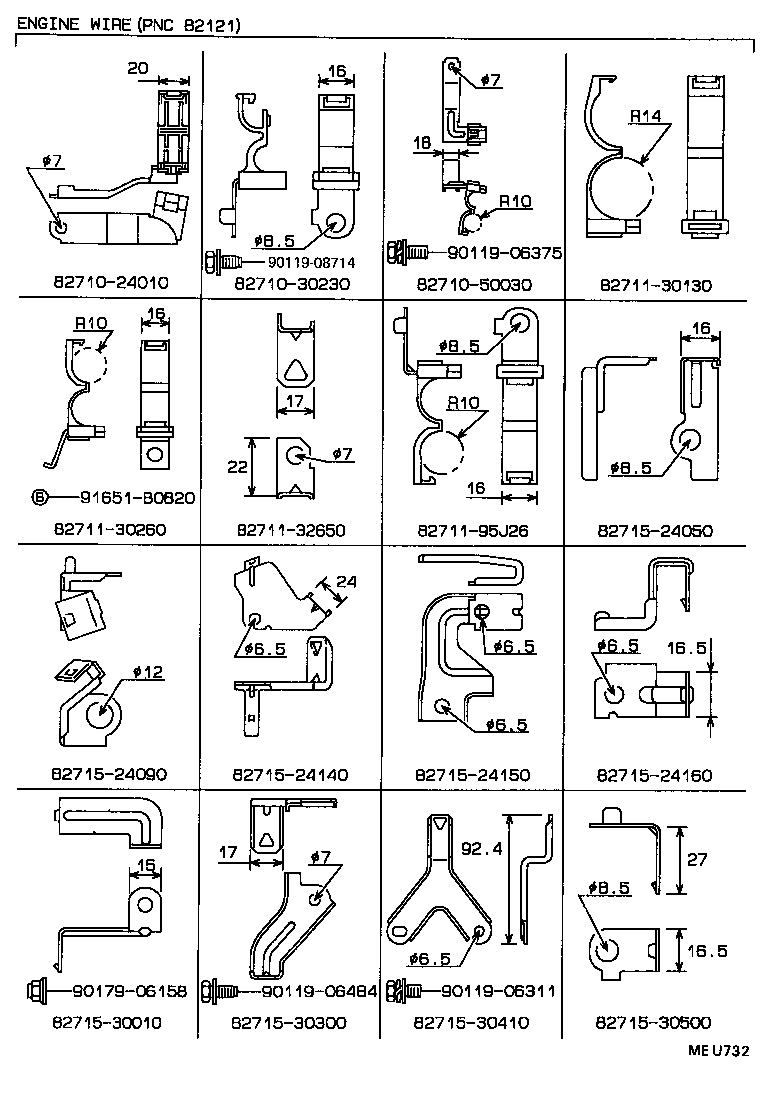

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |

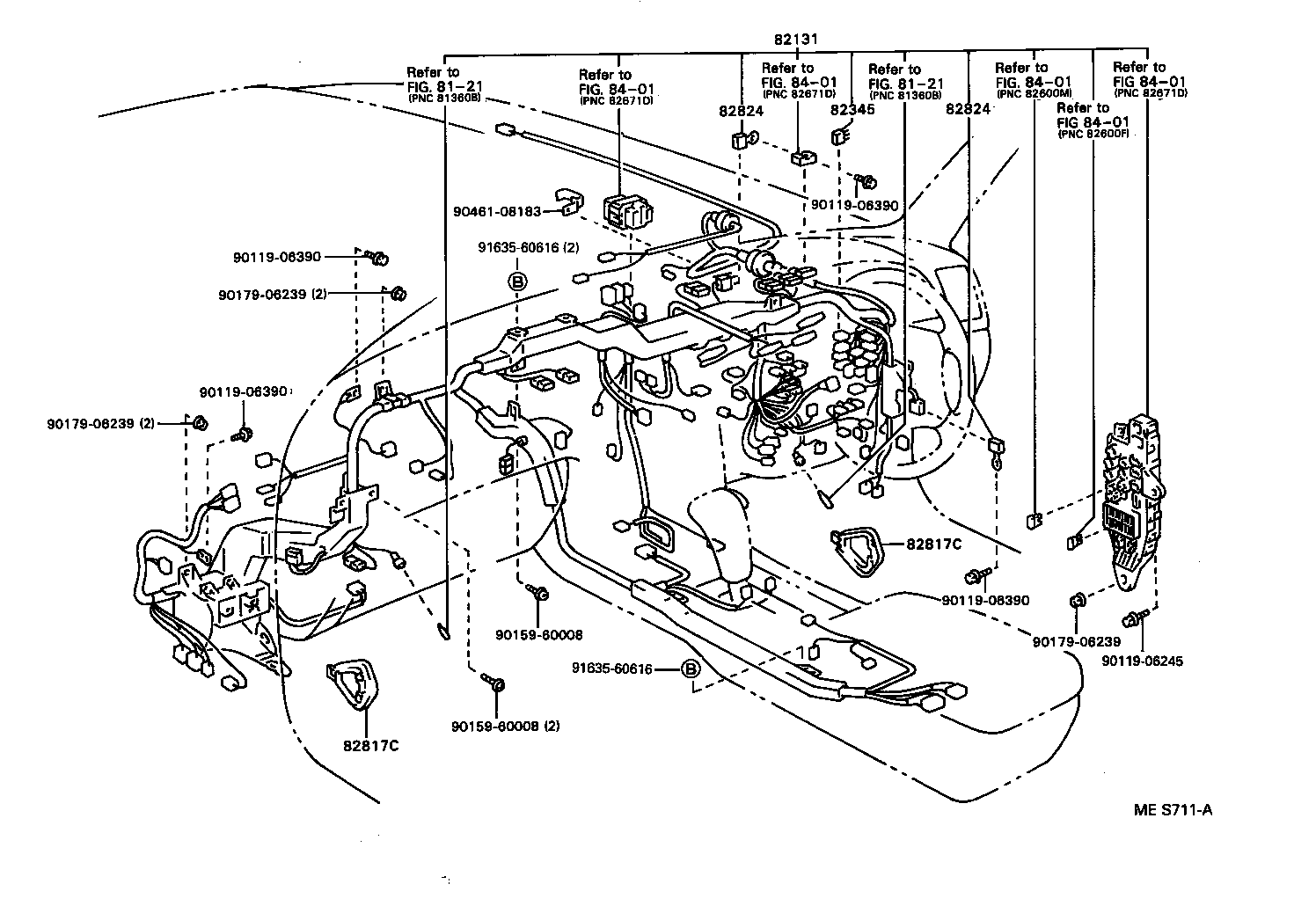

| 82131 | Wire, Cowl |

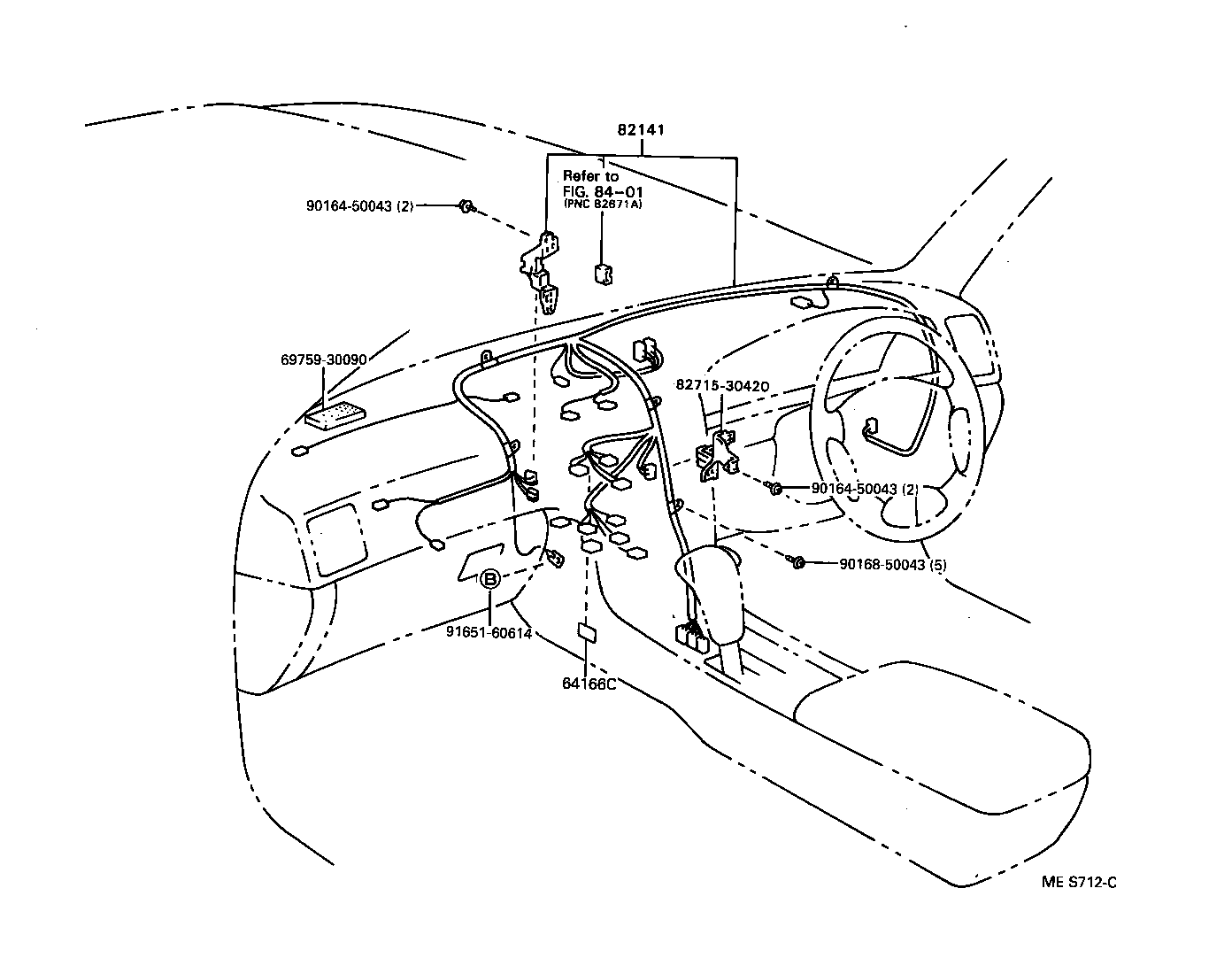

| 82141 | Wire, Instrument Panel |

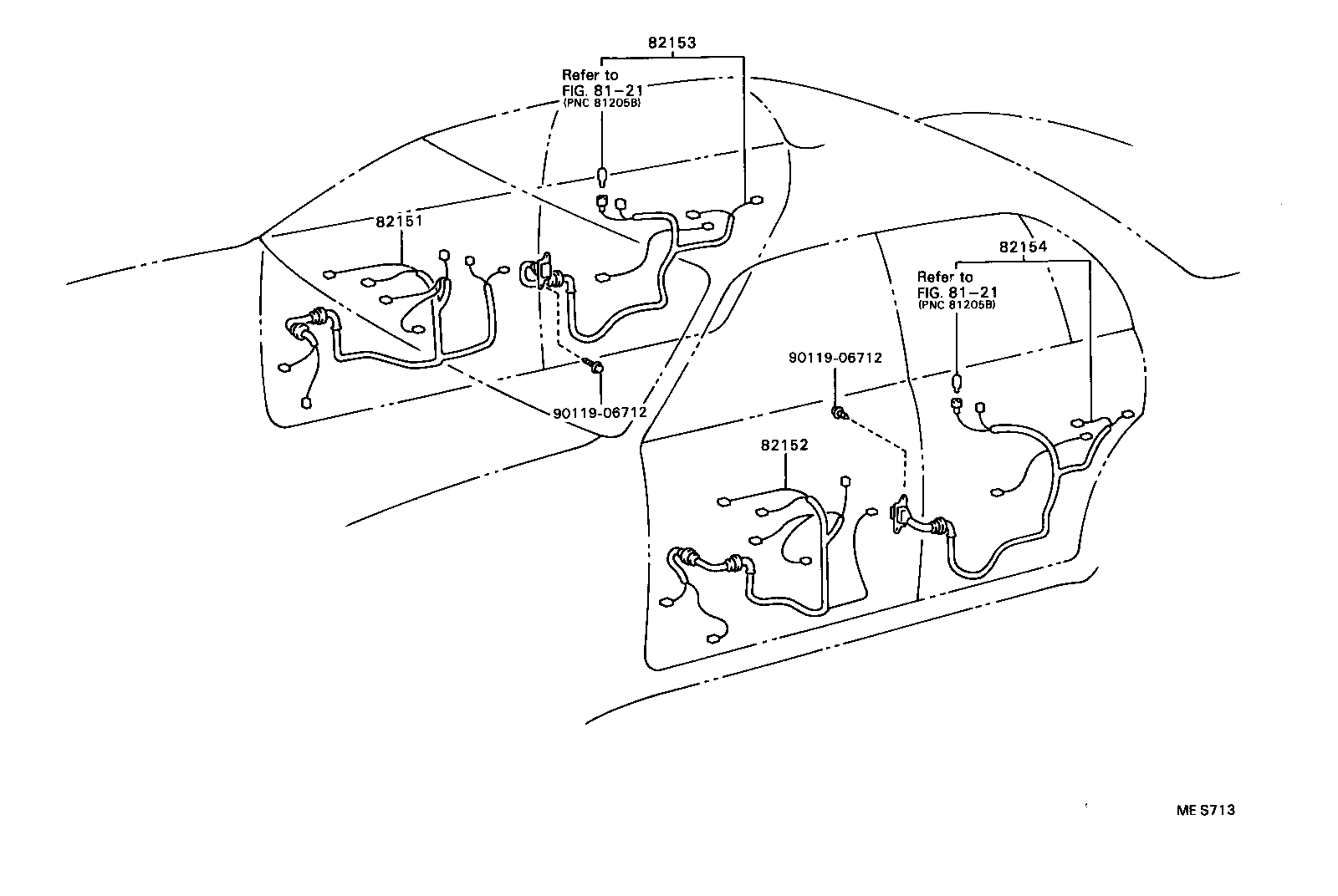

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

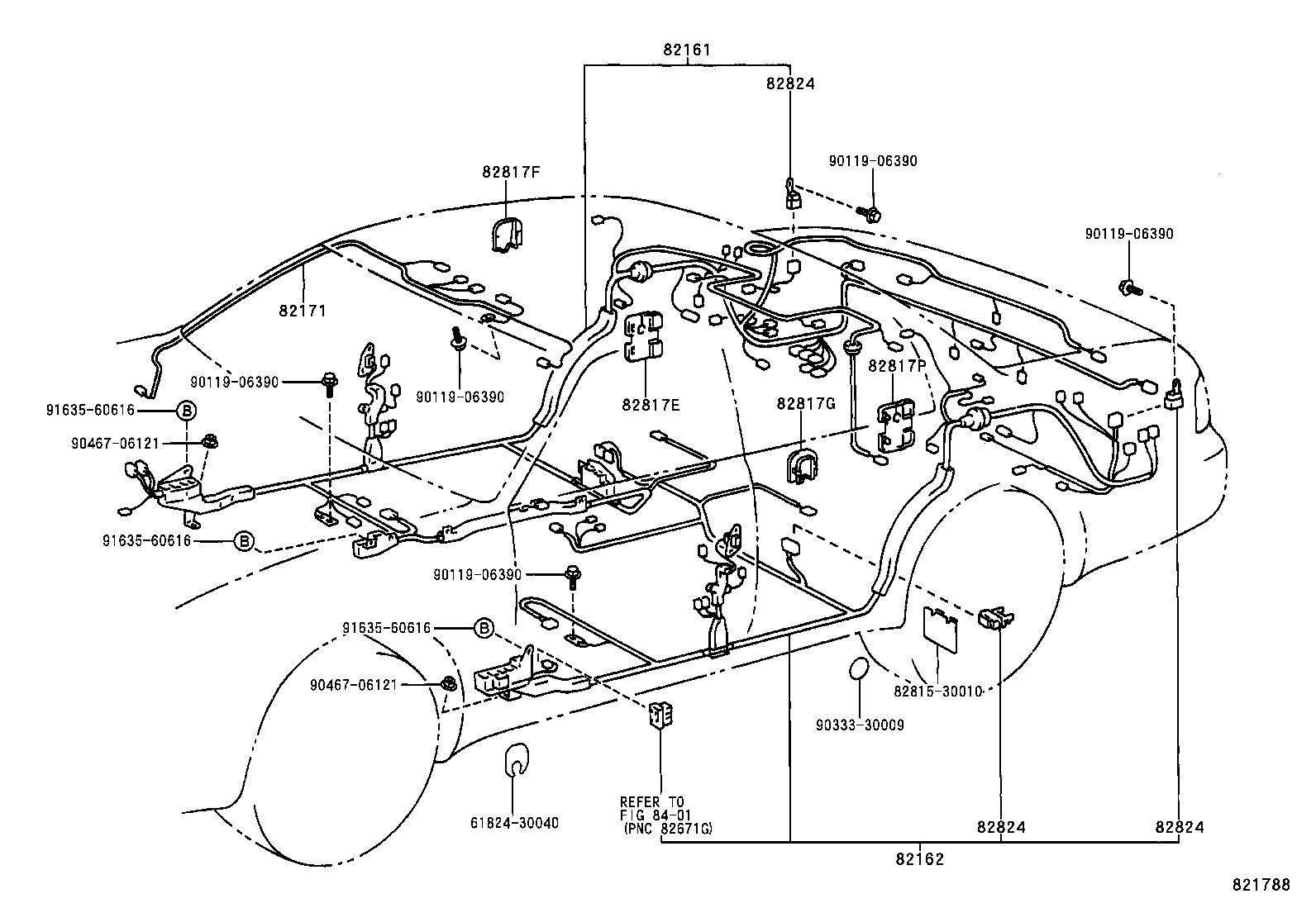

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82167 | Wire, Seat, NO.1 |
| 82171 | Wire, Roof, NO.1 |
| 82210C | Fusible Link |
| 82345 | Diode |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82821A | Cover, Connector |
| 82823A | Cap, Terminal, NO.2 |
| 82824 | Connector, Wiring Harness |
| 82988 | Wire, Airbag Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
