Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

12 part groups · 2 illustrations

Illustrations

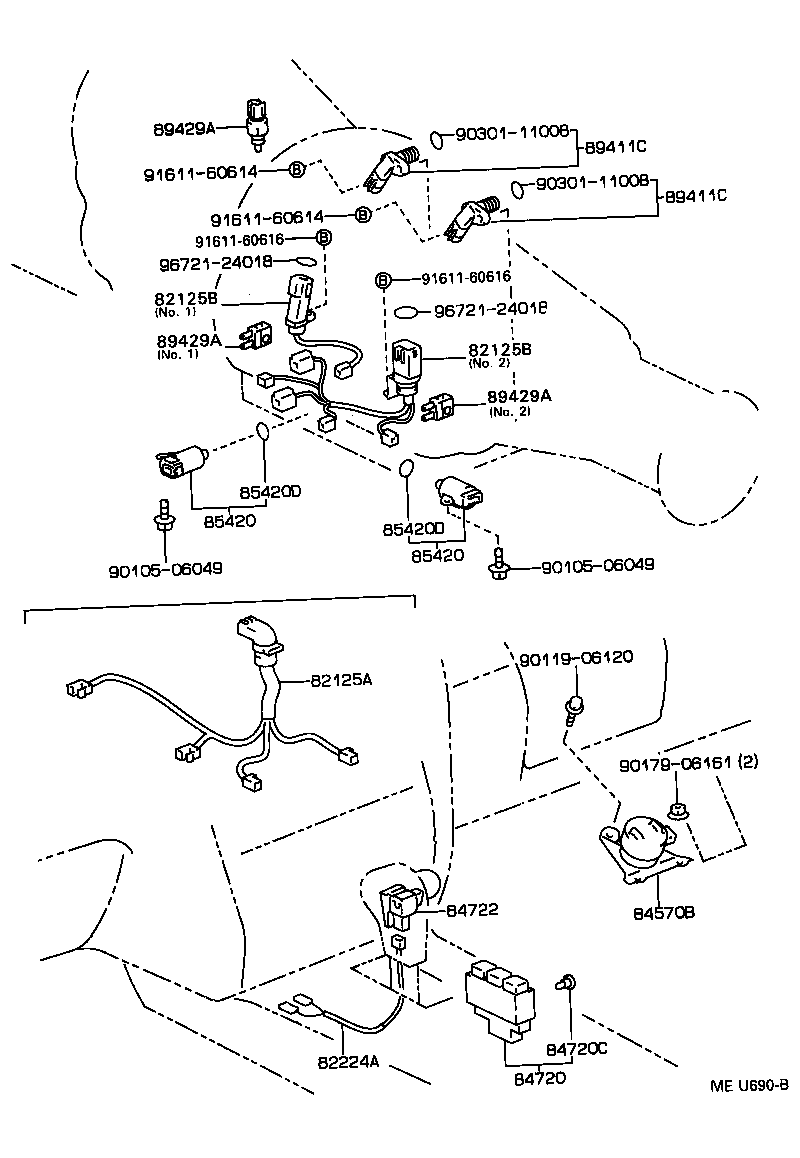

Figure MES501B MES501B 1991-10 → 1997-08 Figure MEU690B MEU690B 1992-10 → 1997-08

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125A Wire, Transmission
82125B Wire, Transmission
82224A Wire, Overdrive
84570B Switch Assy, Kick Down
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89429A Sensor, Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
