Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

Figure MES519F

MES519F 1991-10 → 1997-08

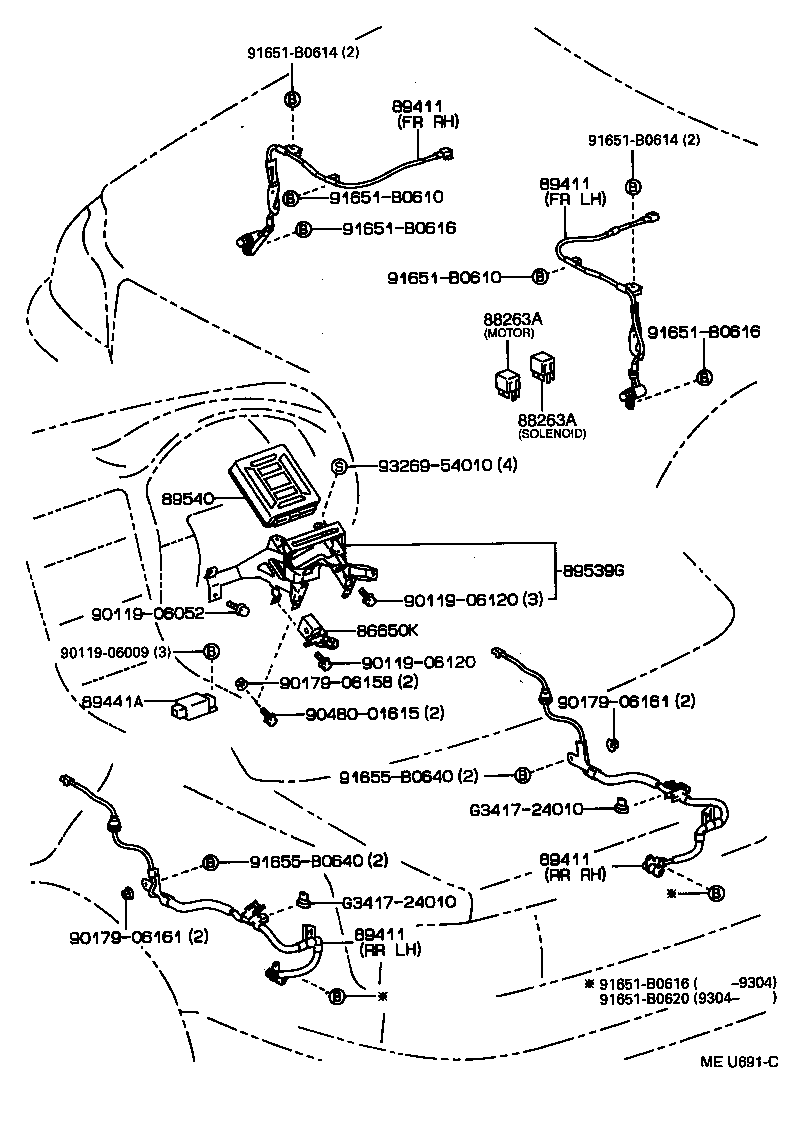

Figure MEU691C

MEU691C 1992-10 → 1997-08

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
89411	Sensor, Speed
89441A	Sensor, Deceleration
89539G	Bracket, Computer
89540	Computer Assy, Skid Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
