Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

12 part groups · 2 illustrations

Illustrations

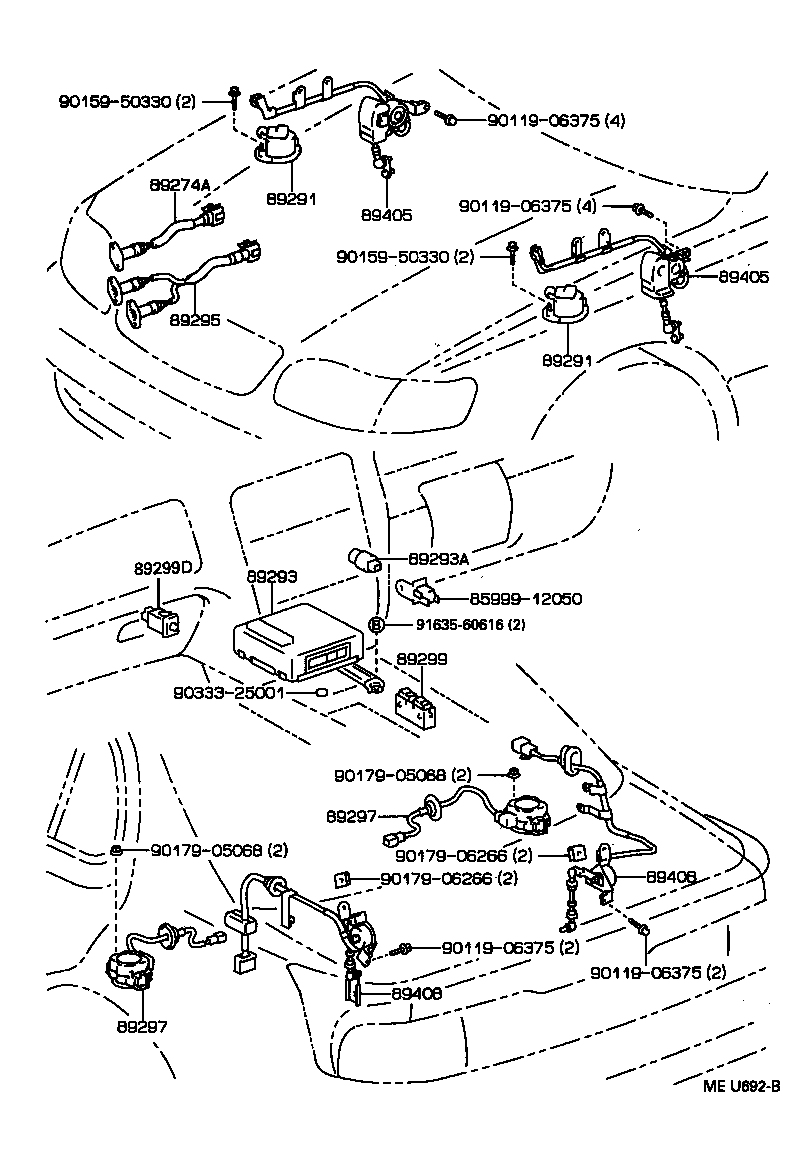

Figure MES528A MES528A 1991-10 → 1997-08 Figure MEU692B MEU692B 1992-10 → 1997-08

Part groups

PNCDescription
89243 Computer, Absorber Control
89268 Rod, Shock Absorber Piston W/Sensor, Rear
89274A Solenoid, Air Valve
89291 Actuator, Suspension Control, Front
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89295 Solenoid, Suspension Control, Front
89297 Actuator, Suspension Control, Rear
89299 Switch, Suspension Control
89299D Switch, Suspension Control, NO.2
89405 Sensor Sub-assy, Height Control, Front
89408 Sensor Sub-assy, Height Control, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
