Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 2 illustrations

Illustrations

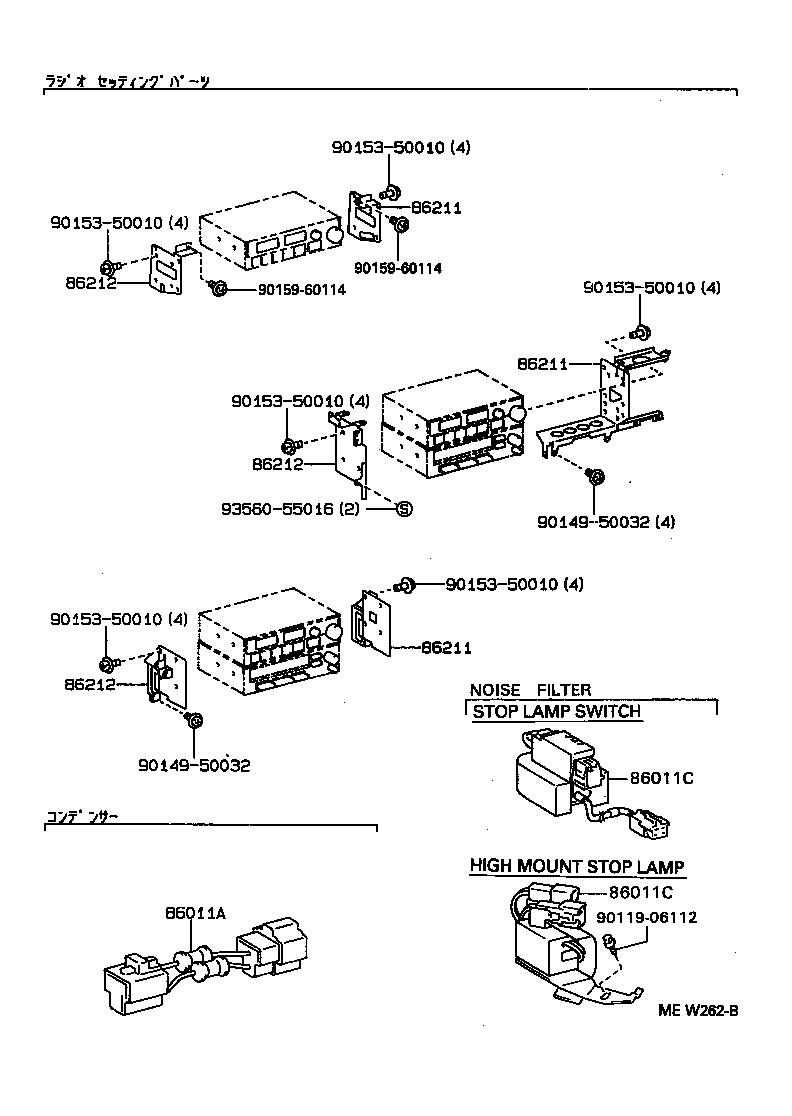

Figure MES877B MES877B 1991-10 → 1997-08 Figure MEW262B MEW262B 1991-10 → 1997-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86270A Disc Player Assy
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
