Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

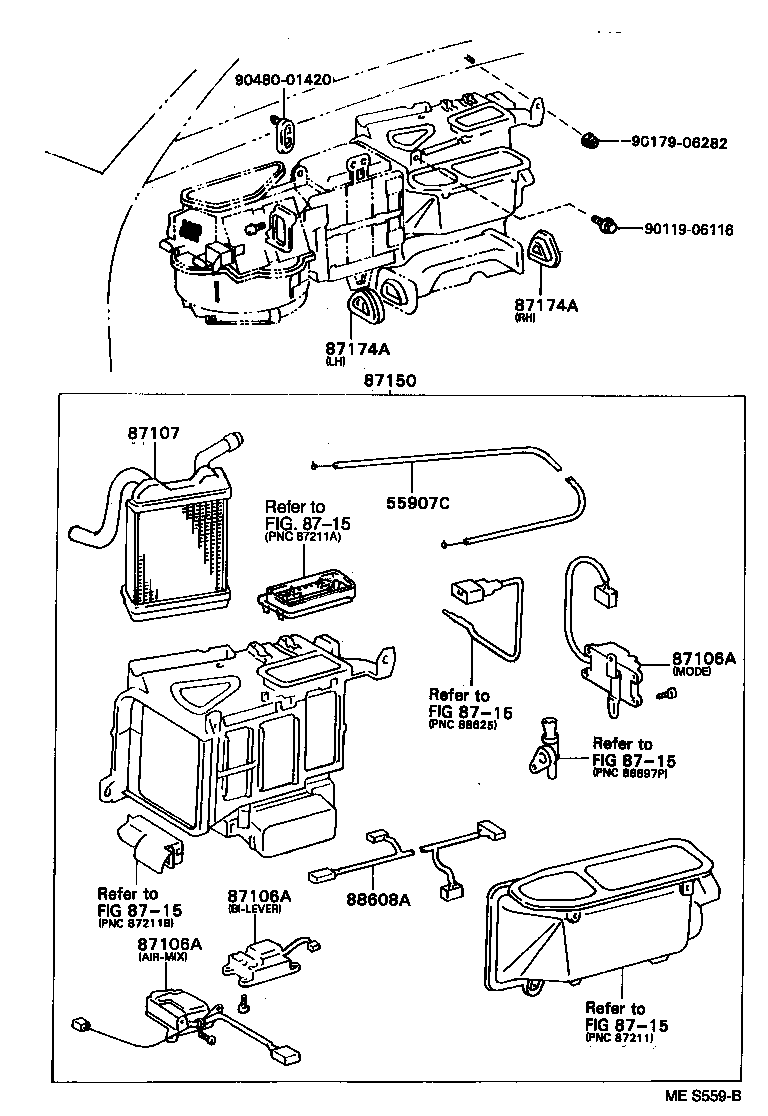

Figure MES557B MES557B 1991-10 → 1997-08 Figure MES559B MES559B 1991-10 → 1997-08

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87121A Bracket, Heater
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87165 Control, Blower Motor, NO.1
87165A Control, Blower Motor, NO.2
87165B Control, Blower Motor, NO.3
87174A Guide, Air Heater
88608A Harness Sub-assy, Wiring Air Conditioner, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
