Toyota Aristo

1991-10 → 1997-08 · chassis JZS147,UZS143 · catalogue 332180 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 3 illustrations

Illustrations

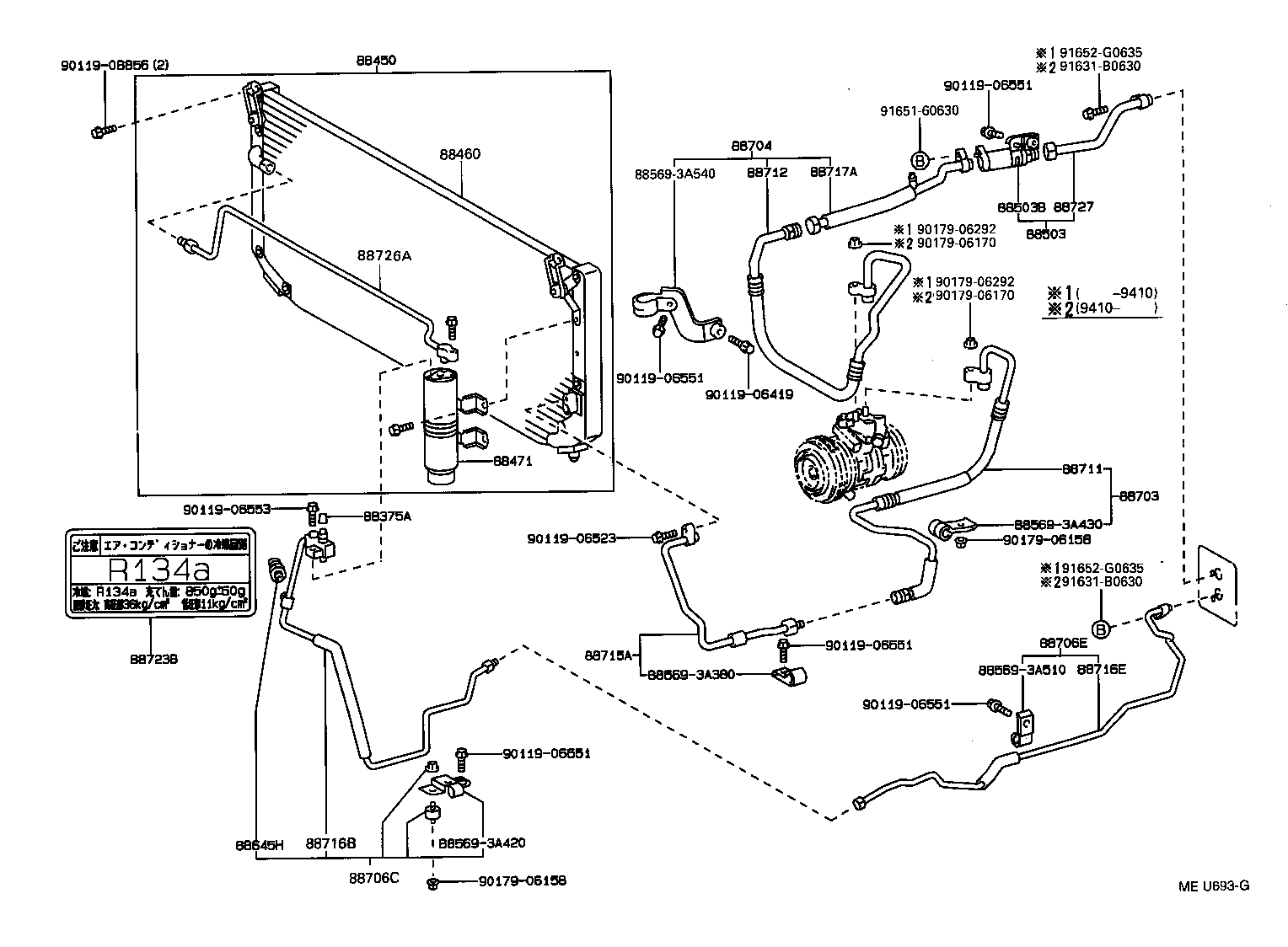

Figure MES447F MES447F 1991-10 → 1997-08 Figure MEU693G MEU693G 1992-10 → 1997-08 Figure 870152 870152 1993-01 → 1997-08

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88503 Regulator Assy, Pressure
88503B Regulator Sub-assy, Pressure
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88727 Tube, Suction, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
