Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07

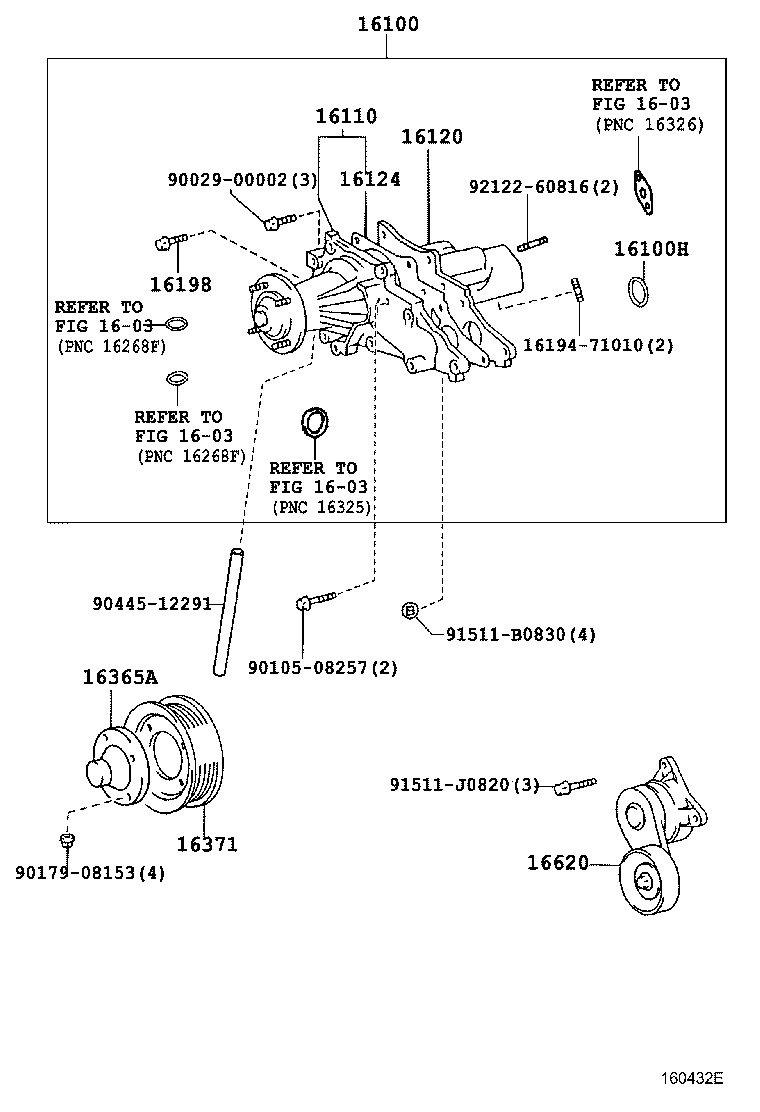

Water Pump
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16104 | Seal Set, Water Pump |
| 16110 | Pump Assy, Water, W/O Coupling |
| 16120 | Cover Assy, Water Pump |
| 16124 | Gasket, Water Pump Cover |
| 16193 | Bolt, Stud(FOR WATER PUMP COVER) |
| 16198 | Bolt, Stud(FOR WATER PUMP PULLEY SEAT) |
| 16365A | Spacer, Fan |
| 16371 | Pulley, Fan |
| 16620 | Tensioner Assy, V-ribbed Belt |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
