Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07

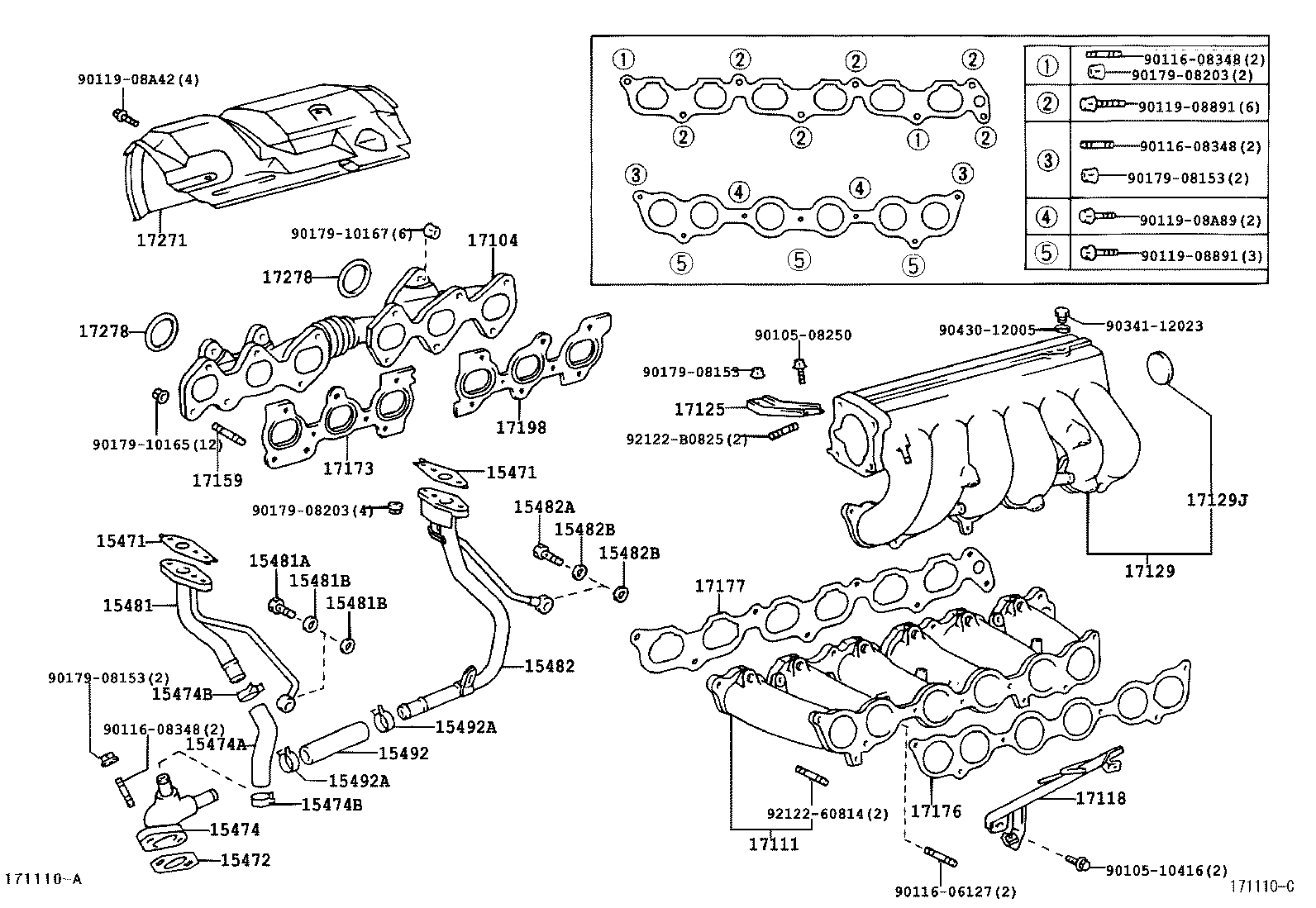

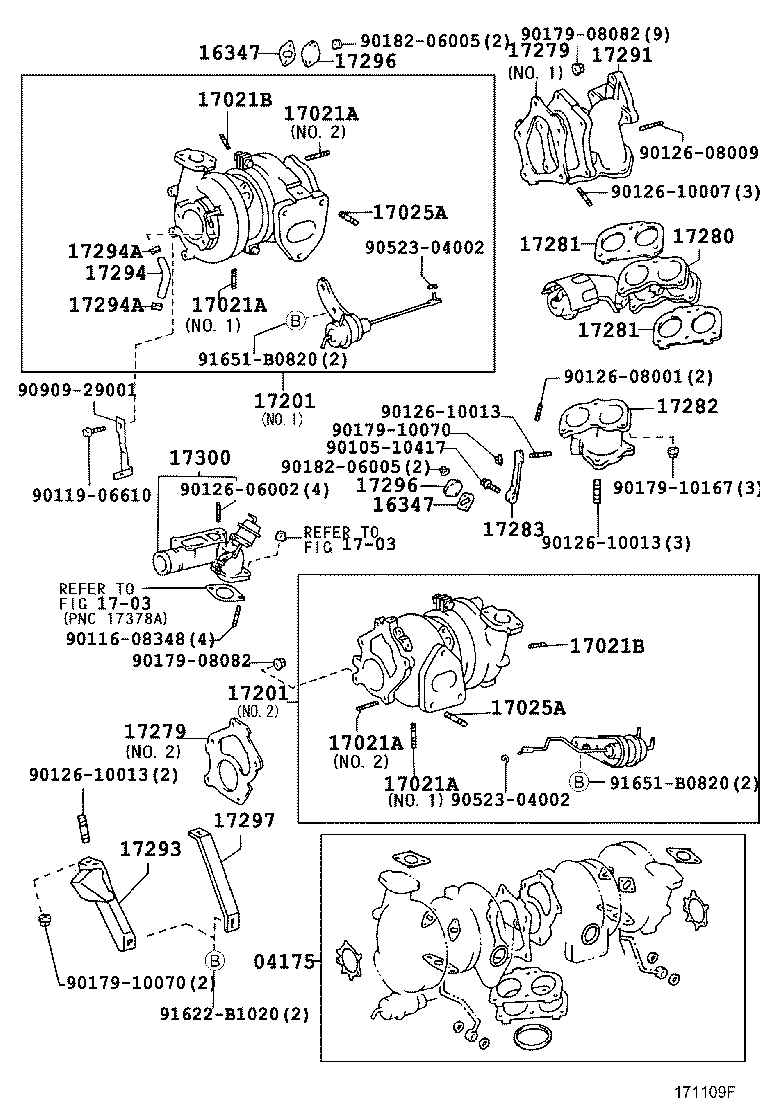

Manifold
47 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 15471 | Gasket, Turbo Oil Inlet |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15474A | Hose, Turbo Oil Outlet |
| 15474B | Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) |
| 15481 | Pipe, Turbo Oil, NO.1 |
| 15481A | Bolt, Union, NO.1 |
| 15481B | Gasket(FOR UNION BOLT NO.1) |
| 15482 | Pipe, Turbo Oil, NO.2 |
| 15482A | Bolt, Union, NO.2 |
| 15482B | Gasket(FOR UNION BOLT NO.2) |
| 15492 | Hose, Turbo Oil Outlet, NO.2 |
| 15492A | Clip(FOR TURBO OIL OUTLET HOSE NO.2) |
| 16347 | Gasket, Water By-pass |
| 17021A | Bolt, Stud(FOR BEARING HOUSING) |
| 17021B | Bolt, Stud |
| 17025A | Bolt, Stud(FOR TURBINE HOUSING) |
| 17061A | Diaphragm Sub-assy |
| 17104 | Manifold Sub-assy, Exhaust, RH |
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129J | Plug, Tight(FOR INTAKE AIR SURGE TANK) |
| 17141 | Manifold, Exhaust |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17176 | Gasket, Air Surge Tank TO Intake Manifold |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17198 | Gasket, Exhaust Manifold, NO.2 |
| 17201 | Turbocharger Sub-assy |
| 17271 | Insulator, Turbo, NO.1 |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17280 | Valve Assy, Exhaust Gas Control |
| 17281 | Gasket, Exhaust Gas Control Valve |
| 17282 | Outlet, Exhaust Gas Control Valve |
| 17283 | Stay, Exhaust Gas Control Valve Outlet |
| 17291 | Elbow, Turbine Outlet |
| 17293 | Stay, Turbocharger |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17296 | Plate, Bearing Housing, Side |
| 17297 | Stay, Turbocharger, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17307B | Lever Sub-assy, Intake Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
