Toyota Aristo

1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

43 part groups · 3 illustrations

Illustrations

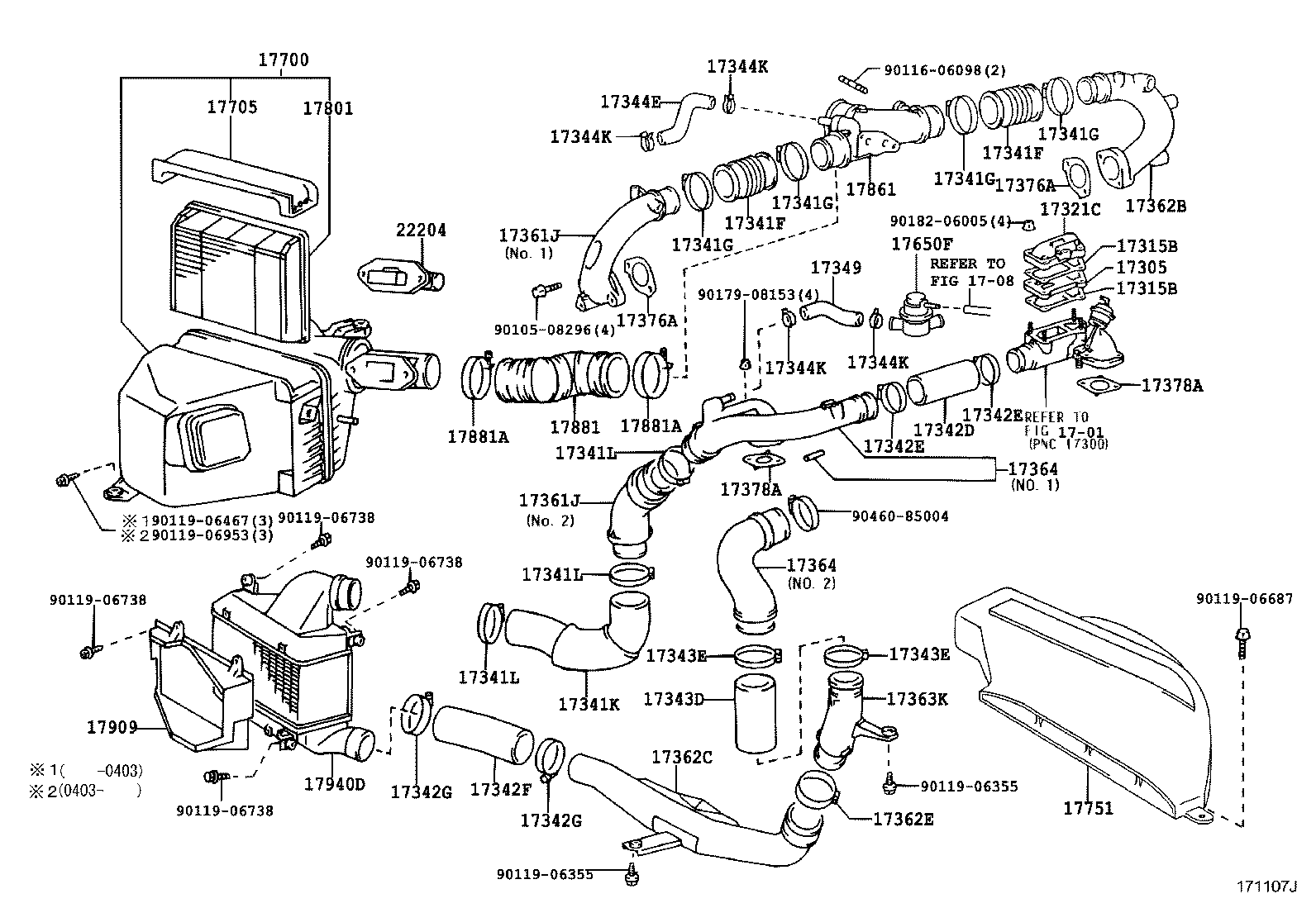

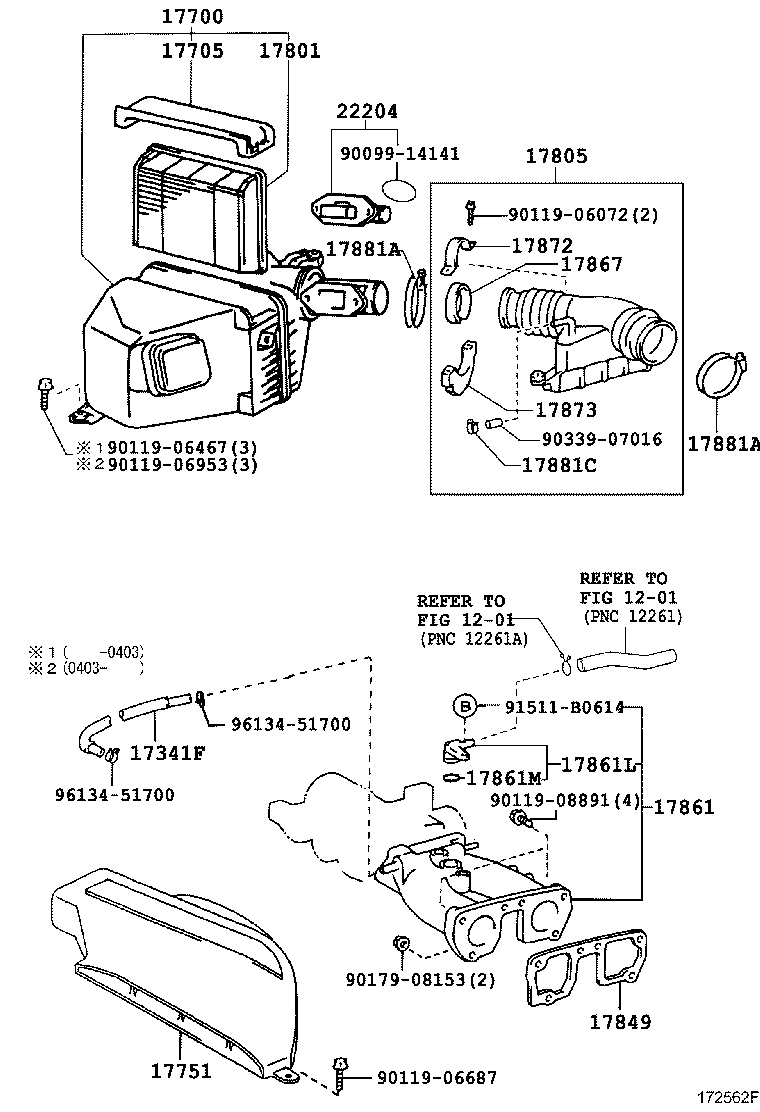

Figure 171106K 171106K 1997-08 → 2000-07 Figure 172562F 172562F 2000-07 → — Figure 171107J 171107J 1997-08 → —

Part groups

PNCDescription
17305 Valve Sub-assy, Reed
17315B Gasket, Intake Air Control Valve
17321C Duct, Air Outlet, NO.1
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344K Clip(FOR AIR HOSE, NO.4)
17349 Hose, Intake Pipe
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362C Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17363K Tube, Air, NO.3(FOR INTERCOOLER)
17364 Tube, Air, NO.4
17376A Gasket, Air Tube
17378A Gasket, Air Tube, NO.3
17650F Valve Assy, Air By-pass, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17861L Elbow(FOR INTAKE AIR CONNECTOR)
17861M Ring, O(FOR INTAKE AIR CONNECTOR)
17867 Patch, Intake Air Connector
17872 Bracket, Intake Air Connector
17873 Bracket, Intake Air Connector, NO.2
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
