Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07

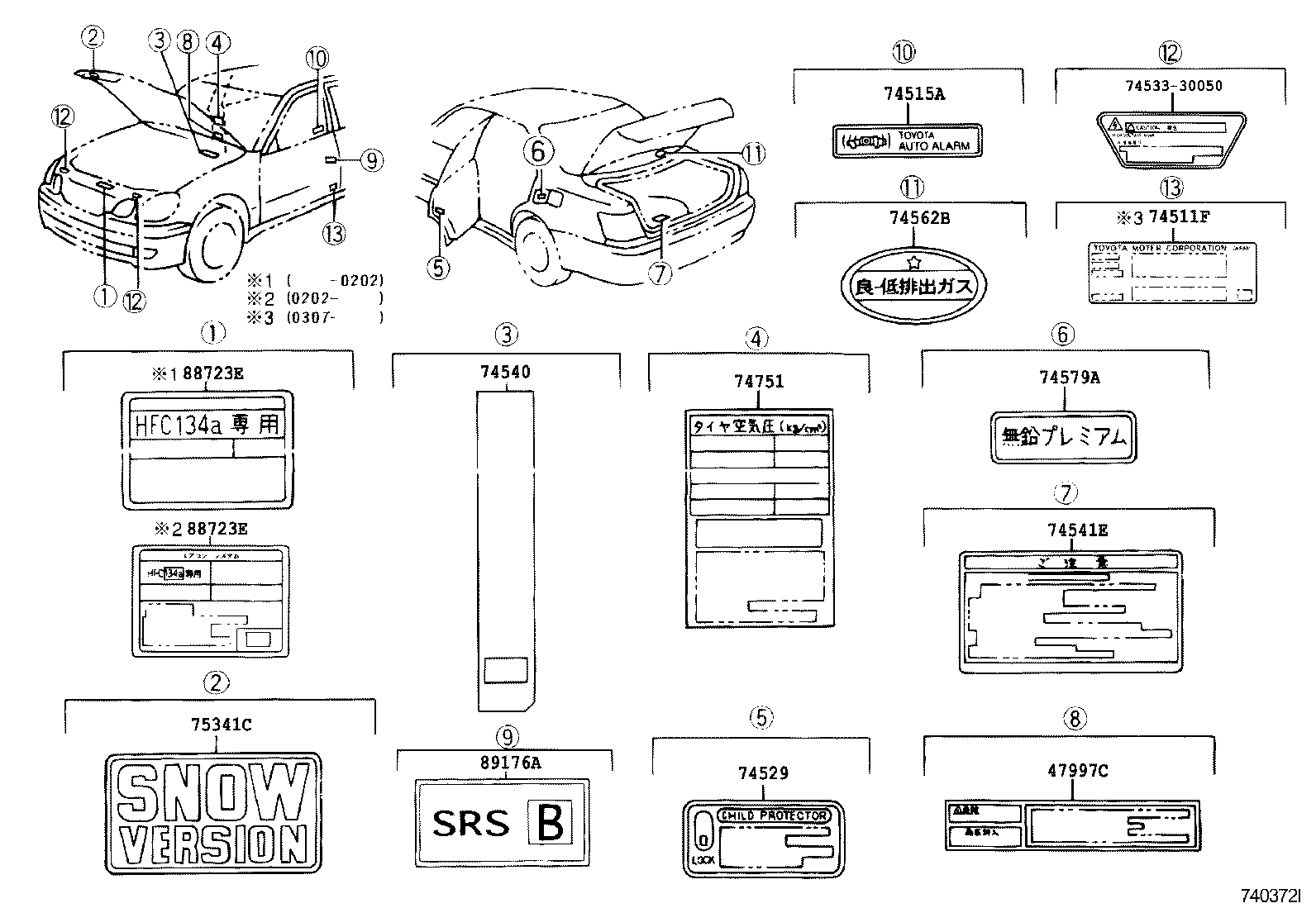

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11277A | Plate, Engine Specification, NO.2 |
| 11294A | Label, Turbocharger Information |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 13564 | Label, Timing Belt Replacement Information |
| 17791A | Label, Maintenance Information |
| 47997C | Label, Accumulator Caution, NO.1 |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74540 | Plate, Fuse Block Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74562B | Label, Emission Information |
| 74579A | Label, Unleaded Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 75341C | Plate, Hood Name |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
