Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07
Rear Combination Lamp

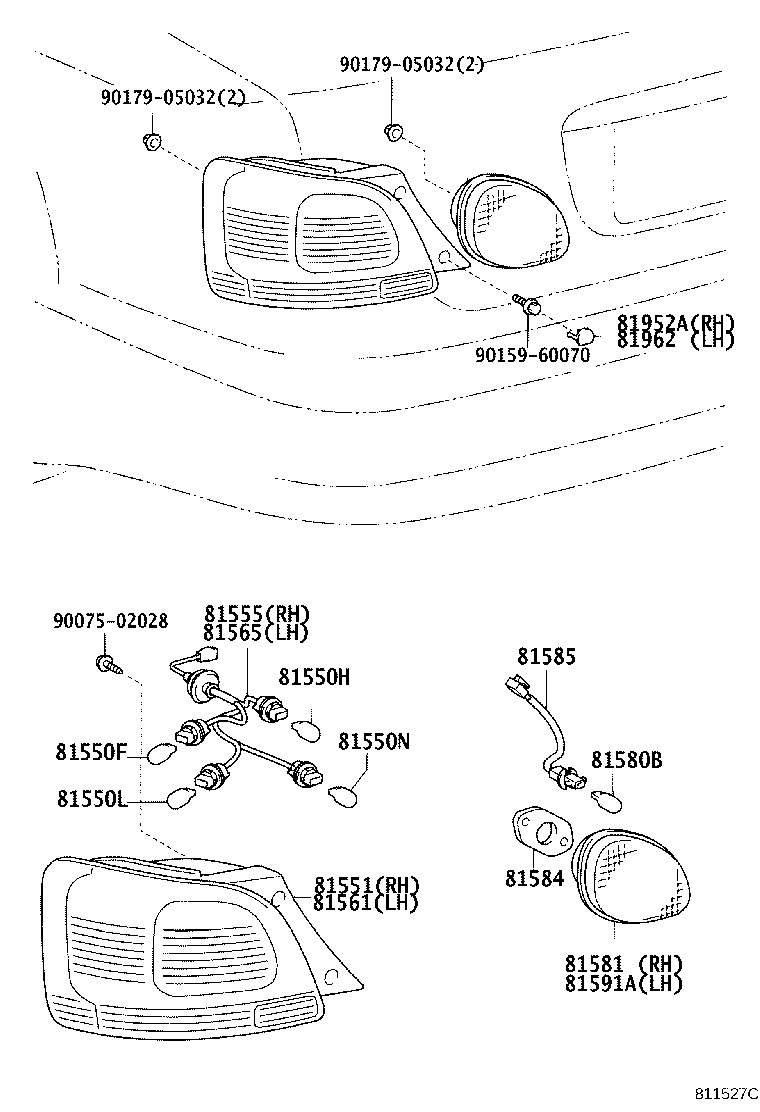

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81550F | Bulb, Taillamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81551 | Lens, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561 | Lens, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81581 | Lens, Rear Lamp |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591A | Lens Rear Lamp |
| 81952A | Cover, Rear Lamp, RH |
| 81962 | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
