Toyota Aristo

1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

36 part groups · 9 illustrations

Illustrations

Figure 820989E

820989E 1997-08 → —

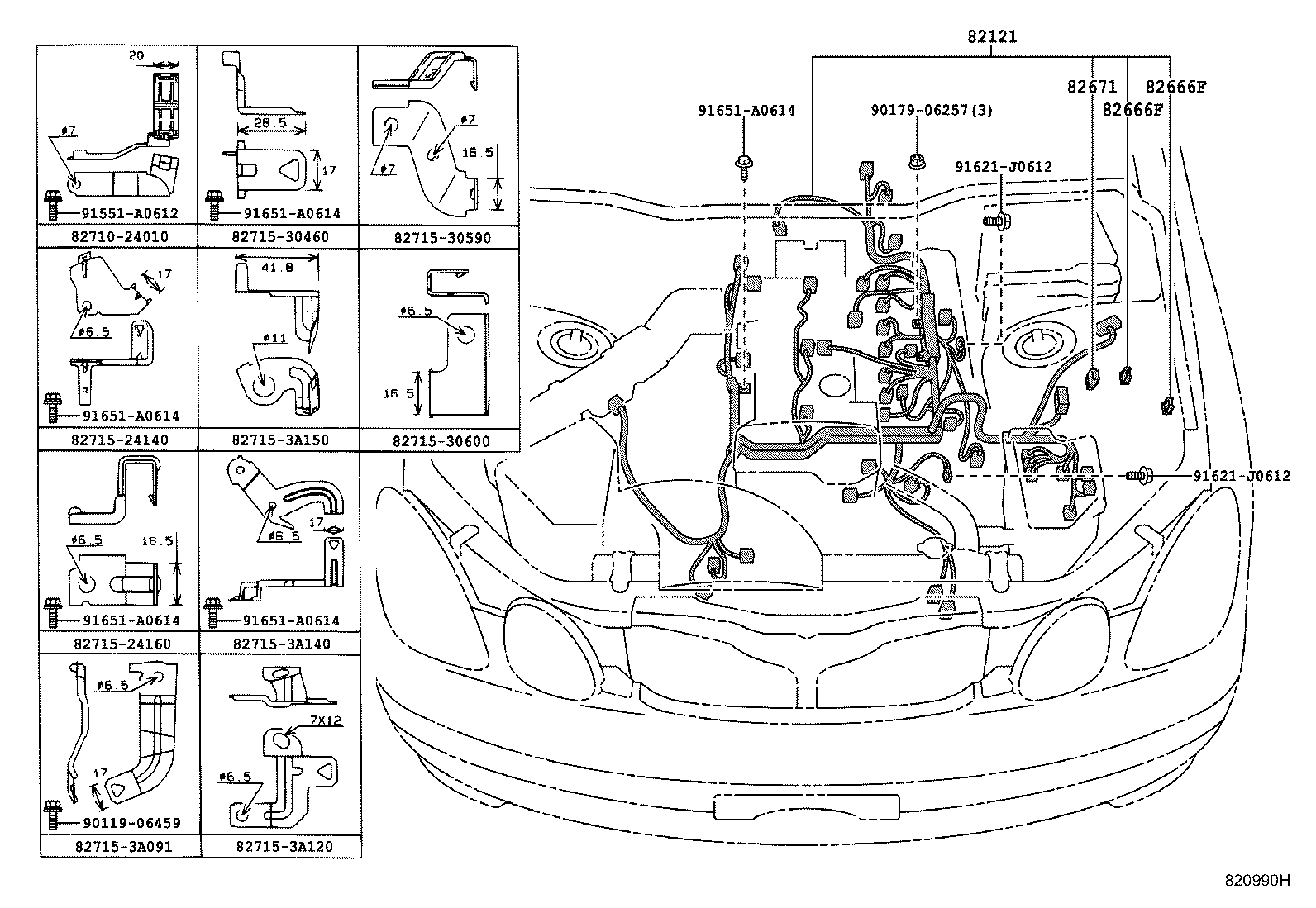

Figure 820990H

820990H 1997-08 → —

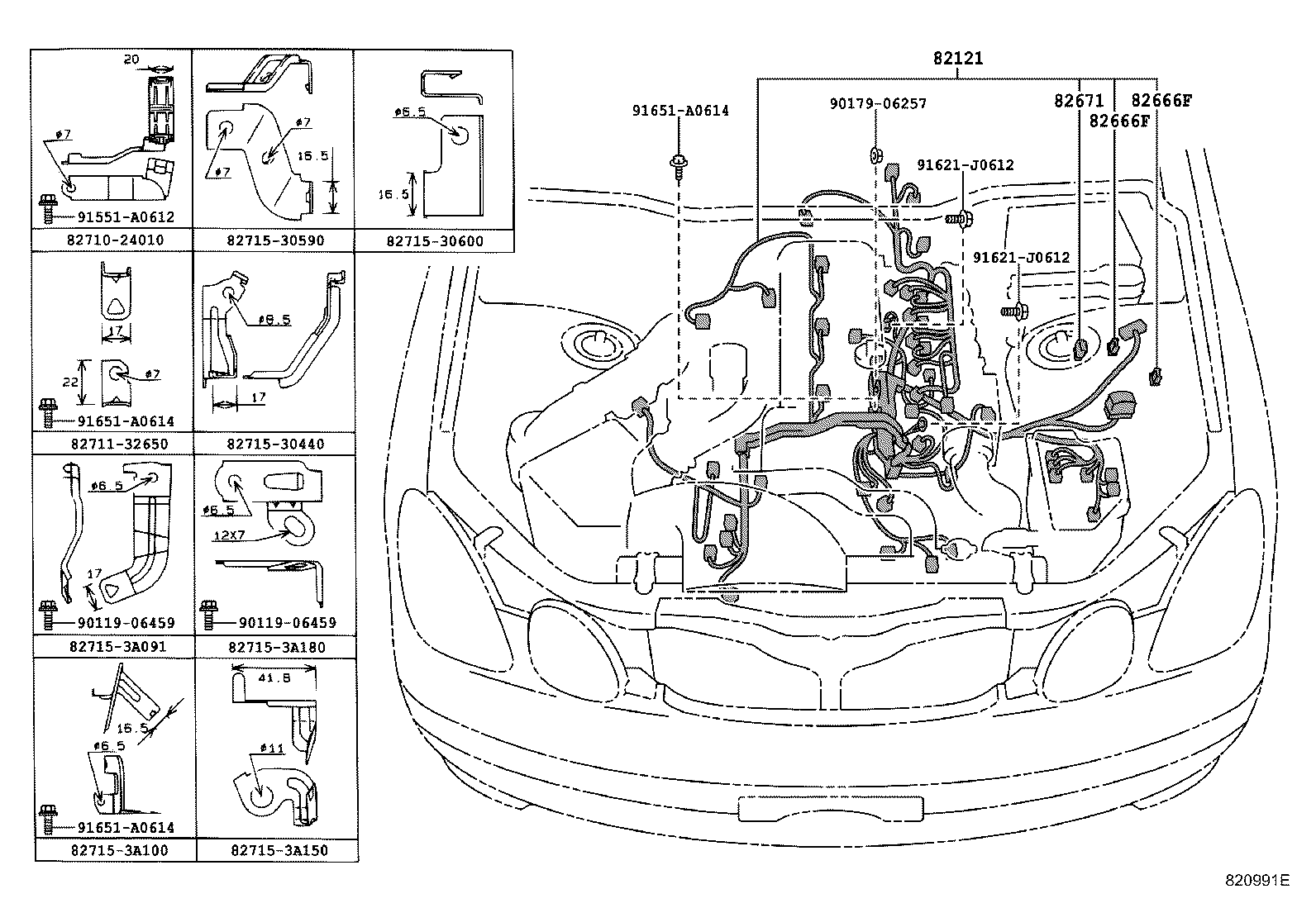

Figure 820991E

820991E 1997-08 → —

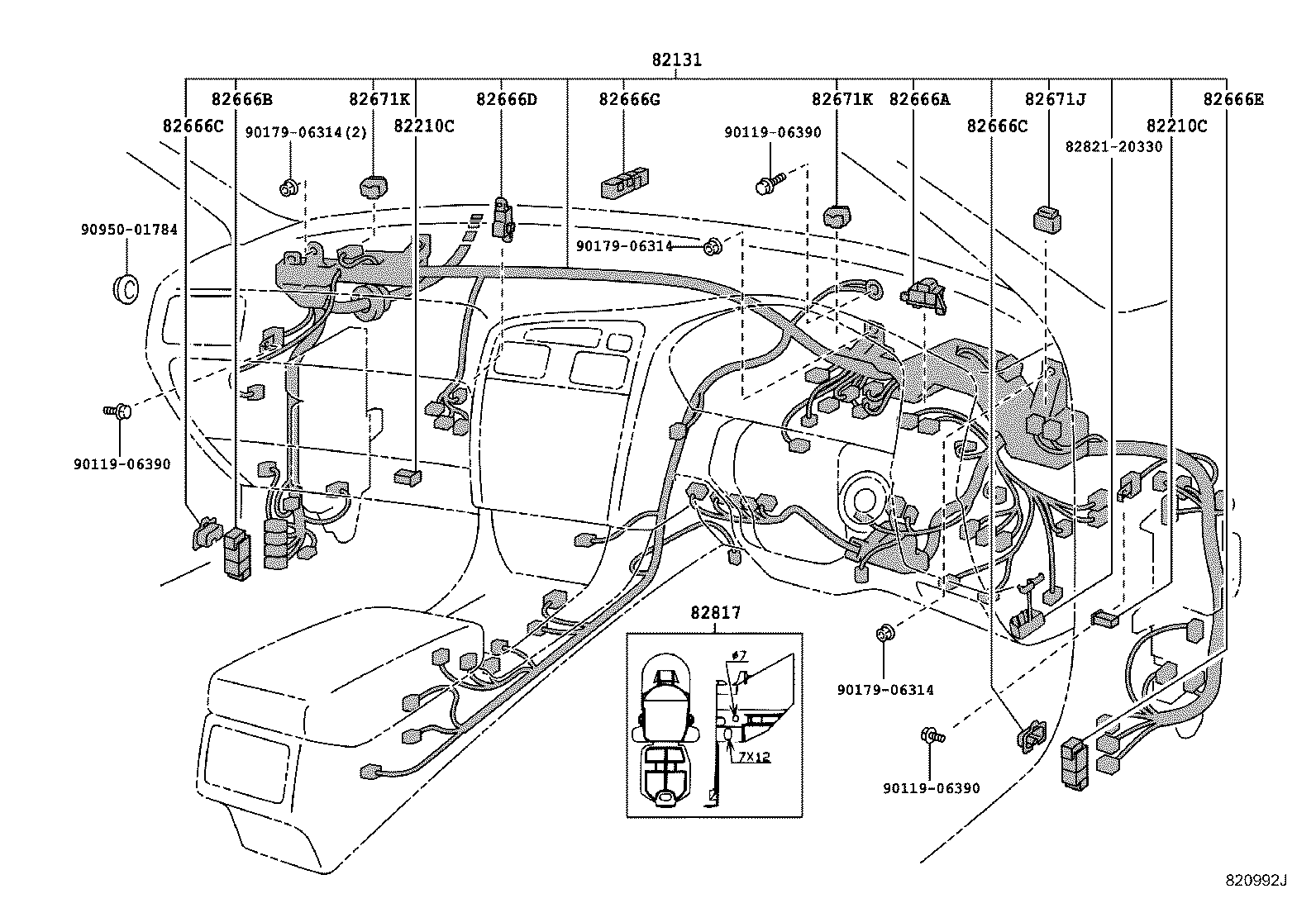

Figure 820992J

820992J 1997-08 → —

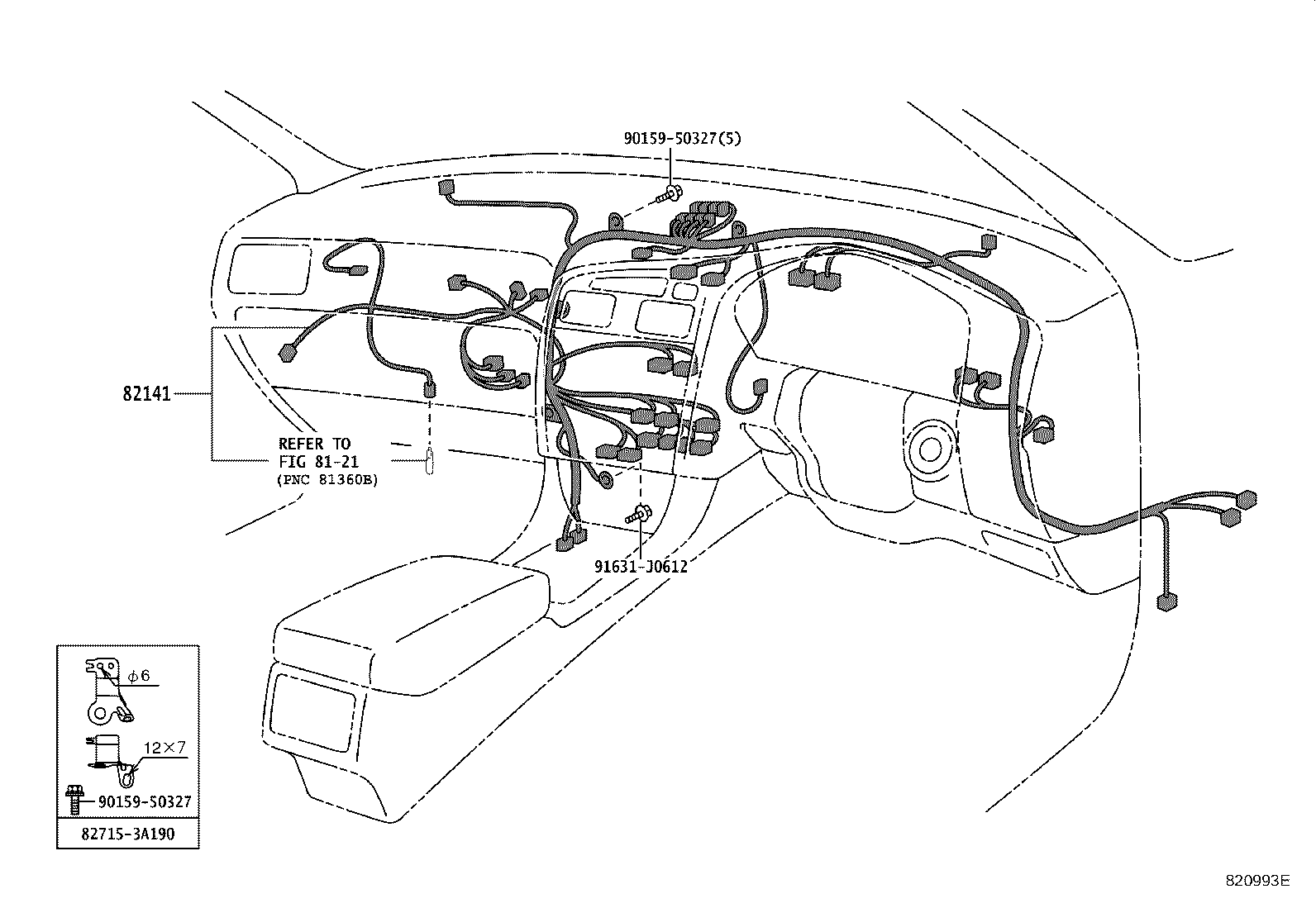

Figure 820993E

820993E 1997-08 → —

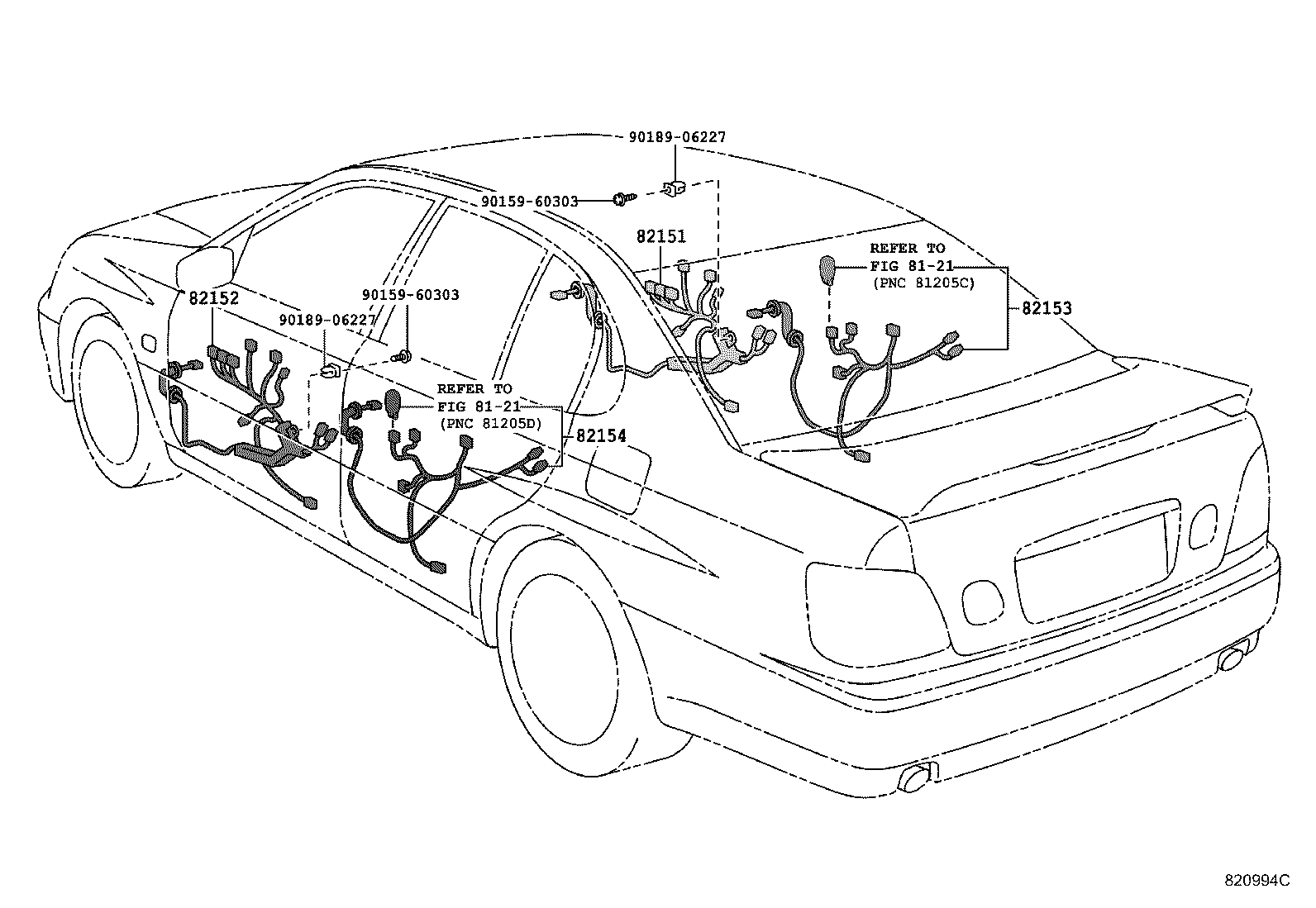

Figure 820994C

820994C 1997-08 → —

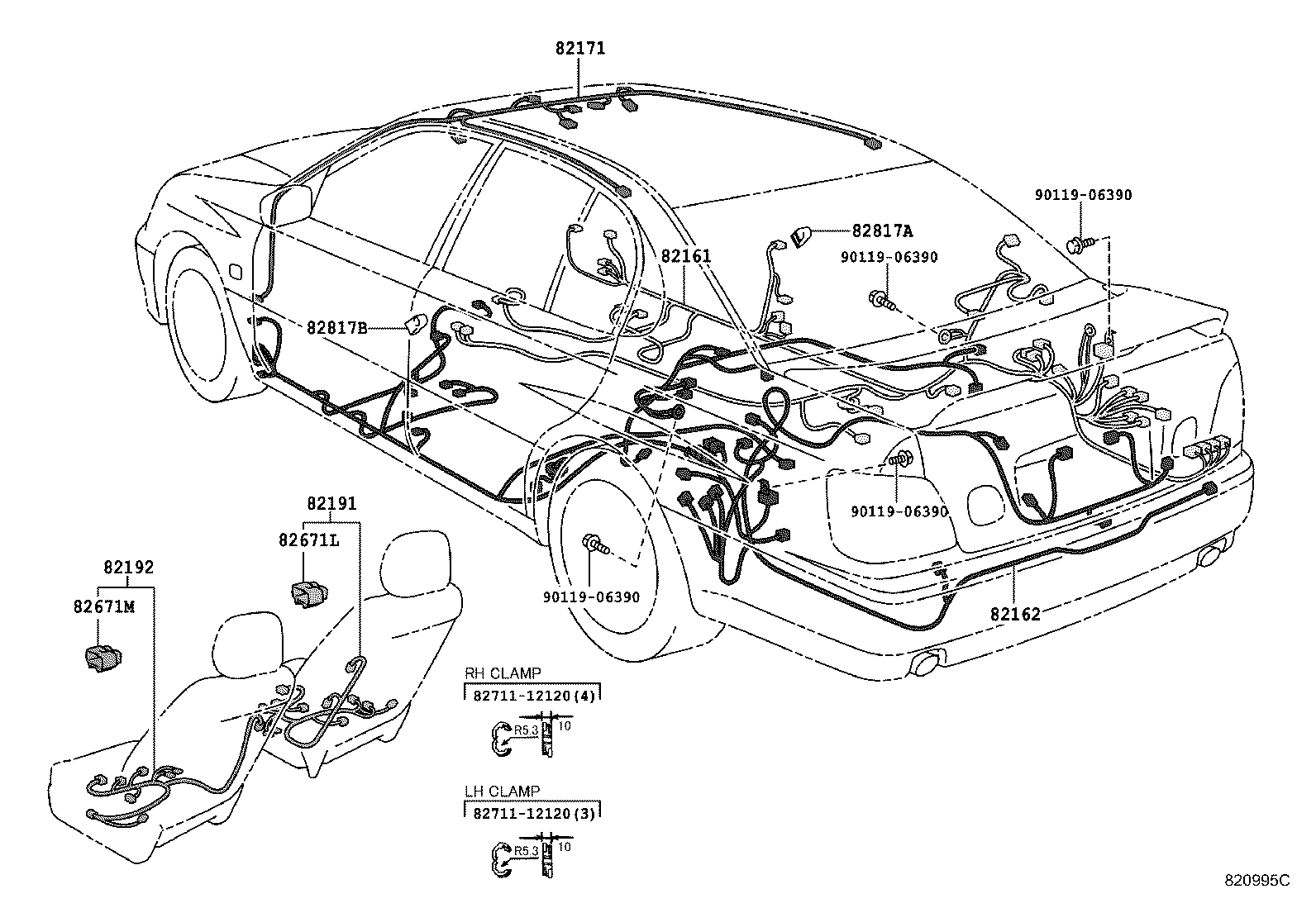

Figure 820995C

820995C 1997-08 → —

Figure 821036B

821036B 1997-08 → —

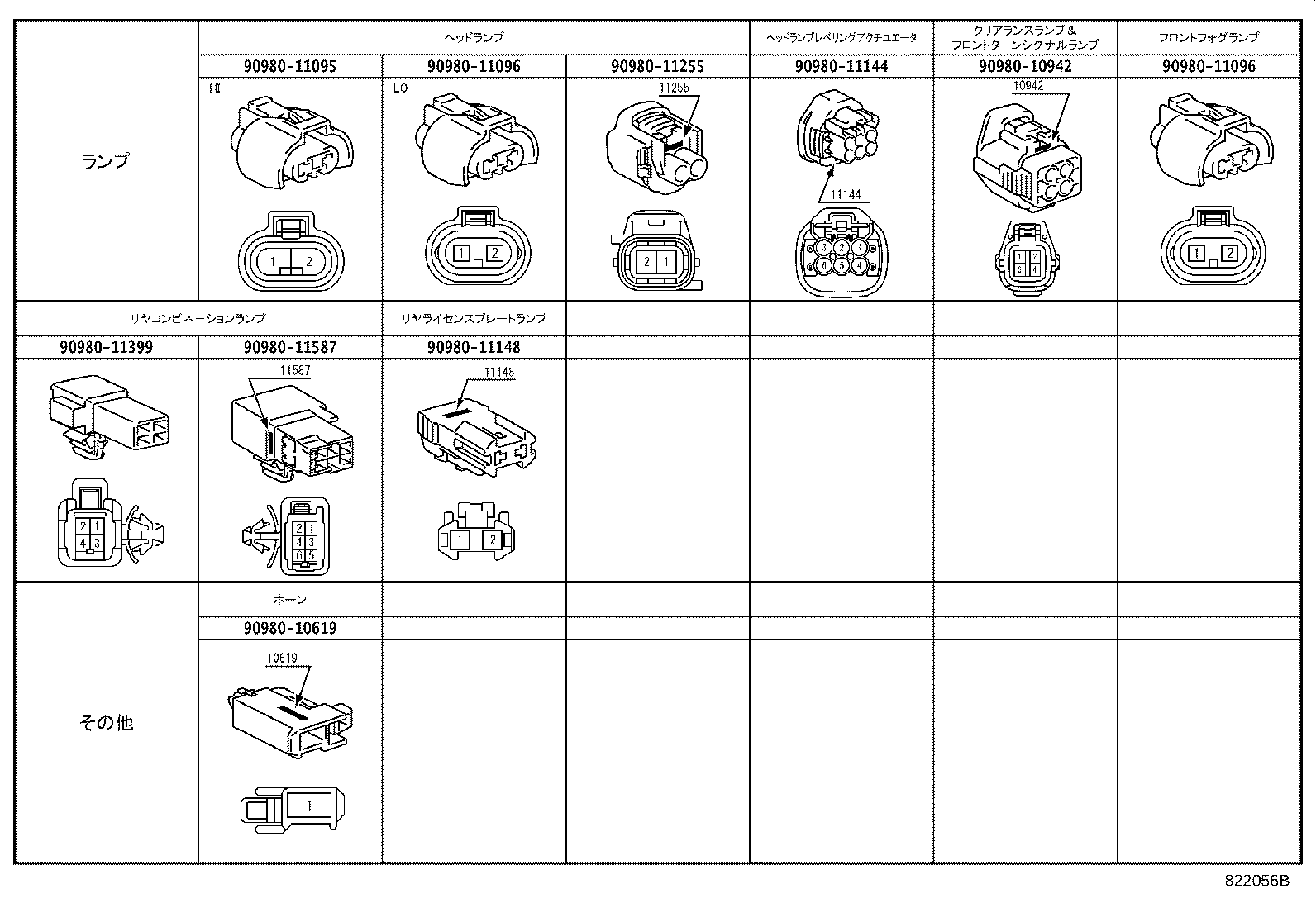

Figure 822056B

822056B 1997-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001C	Cable, Bond, NO.2
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82124	Wire, Engine, NO.4
82131	Wire, Cowl
82141	Wire, Instrument Panel
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82171	Wire, Roof, NO.1
82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82210C	Fusible Link
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82671	Block, Junction
82671J	Block, Junction, NO.2
82671K	Block, Junction, NO.3
82671L	Block, Junction, NO.4
82671M	Block, Junction, NO.5
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
