Toyota Aristo

1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

14 part groups · 3 illustrations

Illustrations

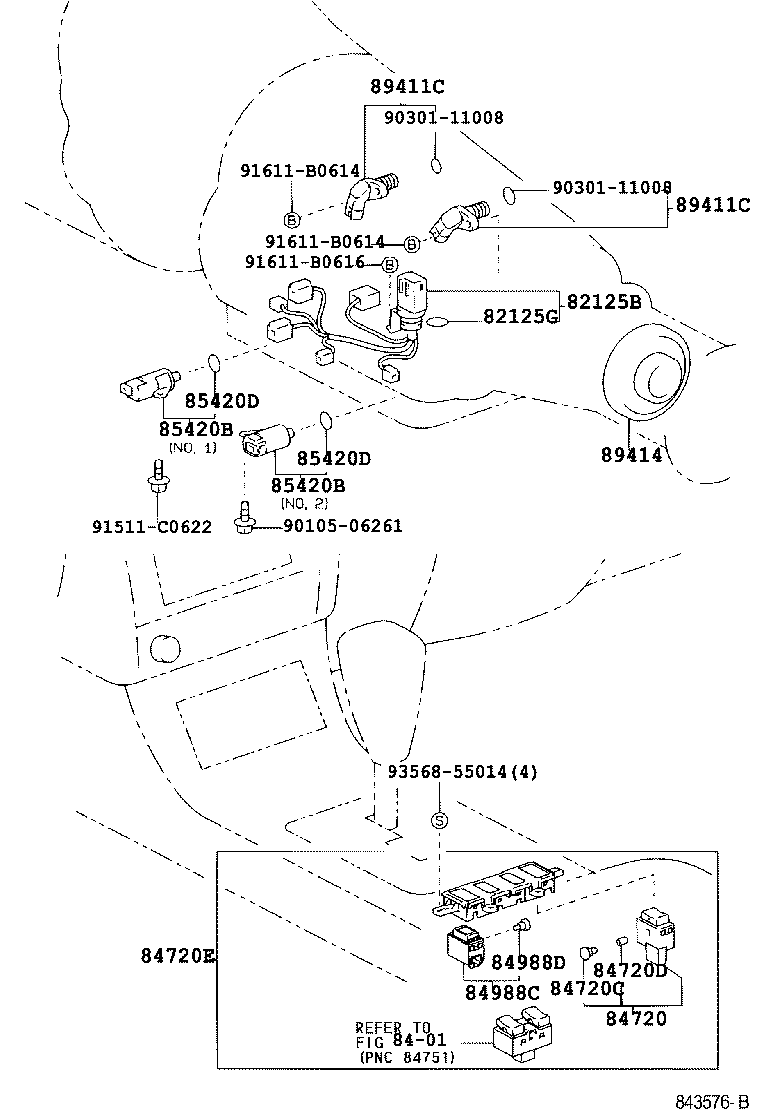

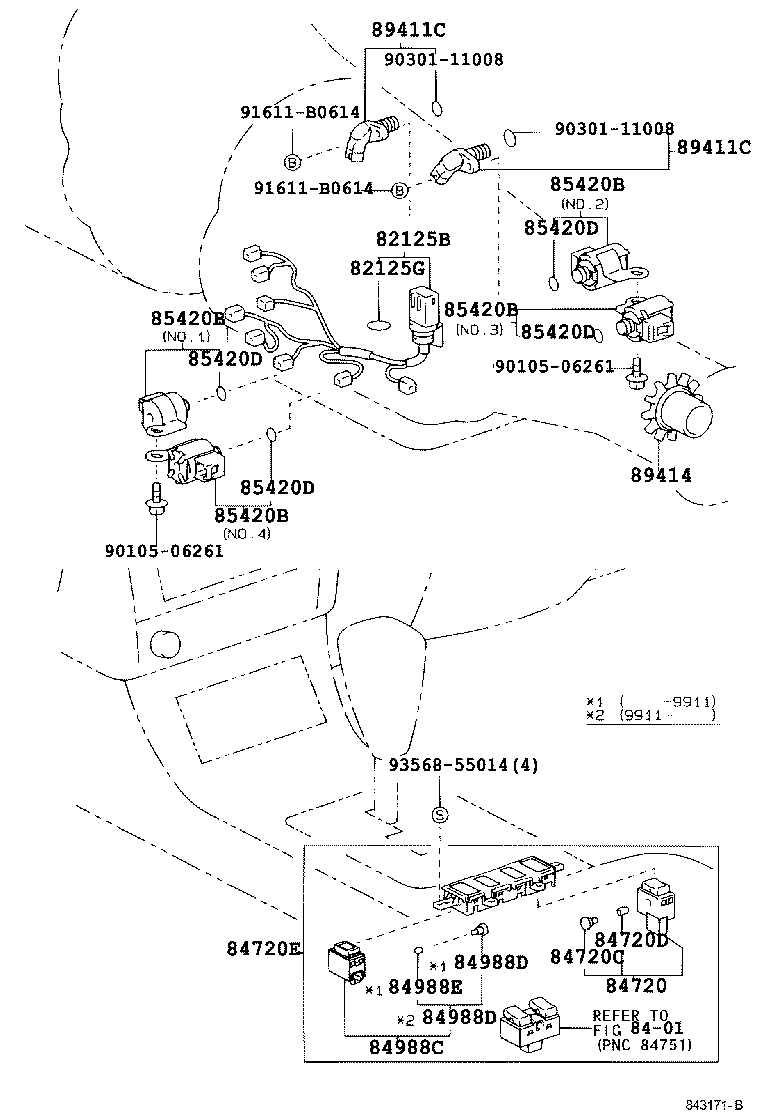

Figure 841219F 841219F 1997-08 → 2000-07 Figure 843576B 843576B 2000-07 → — Figure 843171B 843171B 1997-08 → —

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84720D Cap, Pattern Select Switch
84720E Switch Assy, Pattern Select
84988C Switch, Traction Control
84988D Blub, Traction Control Switch
84988E Cap, Traction Control Switch Bulb
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
