Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07
Wireless Door Lock

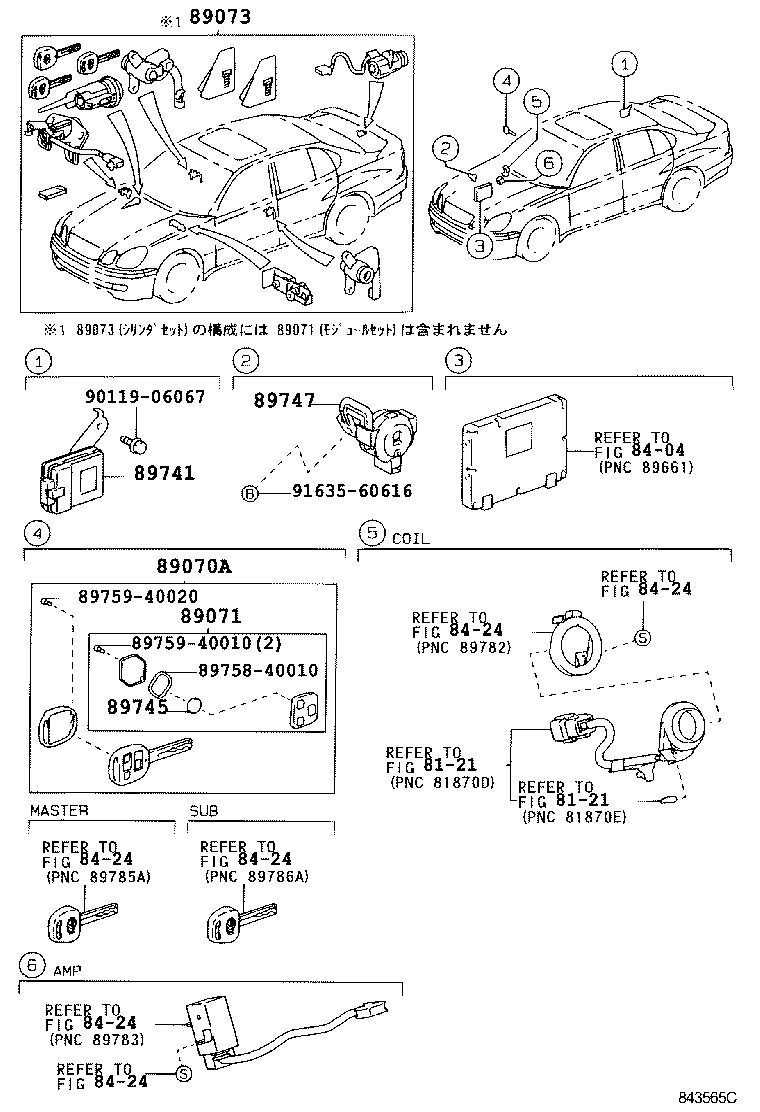

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89070A | Transmitter, Door Control (CUT KEY) |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89741 | Receiver, Door Control |
| 89745 | Battery, Transmitter |
| 89747 | Buzzer, Wireless Door Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
