Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07

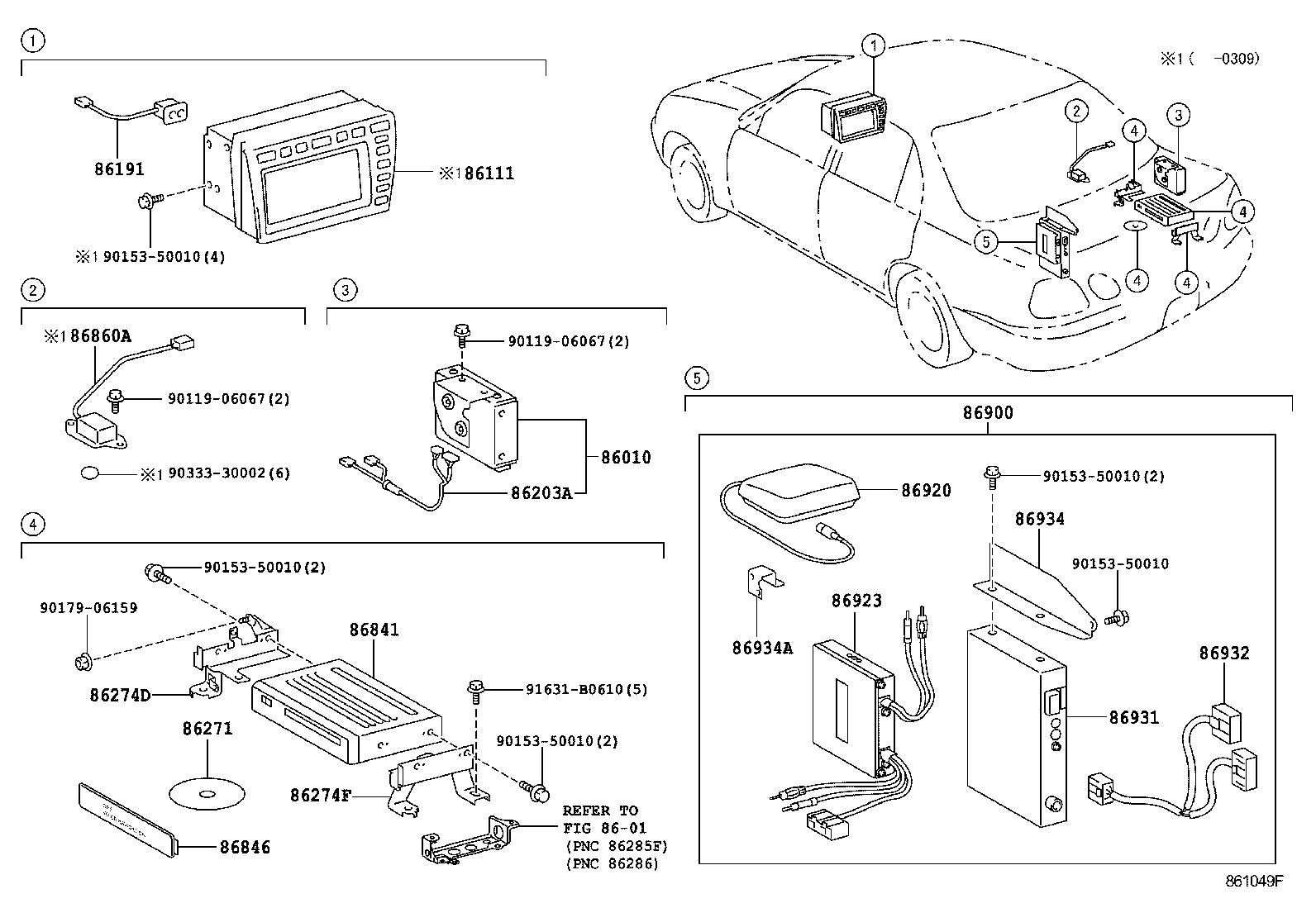

Navigation & Front Monitor Display
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86111 | Multi-display |
| 86191 | Terminal, Video(VIDEO ADAPTER) |
| 86203A | Wiring Sub-assy, Television |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86841 | Computer, Navigation |
| 86846 | Plate, Navigation Computer |
| 86860A | Antenna, Navigation |
| 86900 | Computer Assy, Traffic Information |
| 86920 | Antenna Assy, Traffic Information |
| 86923 | Detector, Traffic Information |
| 86931 | Computer, Traffic Information |
| 86932 | Wire, Traffic Information |
| 86934 | Bracket, Traffic Information, NO.1 |
| 86934A | Bracket, Traffic Information, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
