Toyota Aristo
1997-08 → 2005-01 · chassis JZS16# · catalogue 332190 · Japan
Discontinued model
Data version 2005-07
Telephone & Mayday

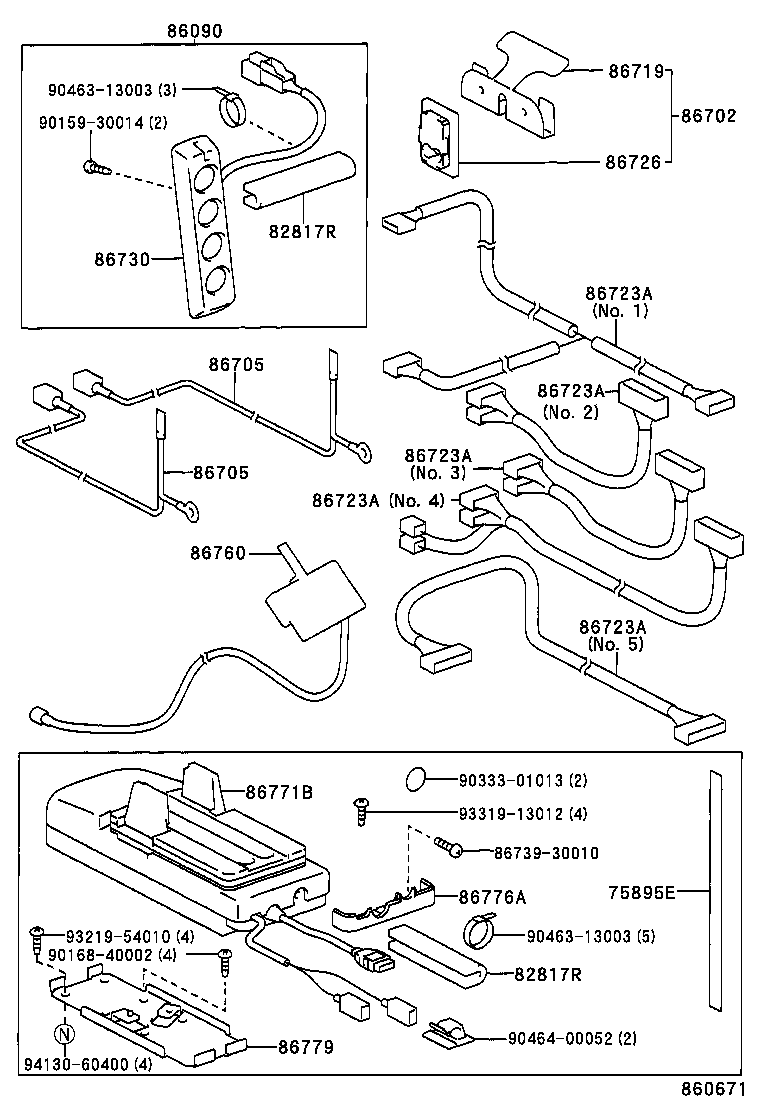

18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75895E | Tape, Moulding, NO.1 |
| 82817R | Protector, Wiring Harness, NO.16 |
| 86070 | Mobilephone & Accessory Assy |
| 86090 | Telephone Assy |
| 86702 | Bracket Set, Telephone |
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86710 | Computer Assy, Telephone |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86722 | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86723A | Wire, Mobilephone |
| 86726 | Cover, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
| 86771B | Charger, Portablephone Battery |
| 86776A | Cover, Telephone Wire |
| 86779 | Strap, Portablephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
