Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

2 part groups · 3 illustrations

Illustrations

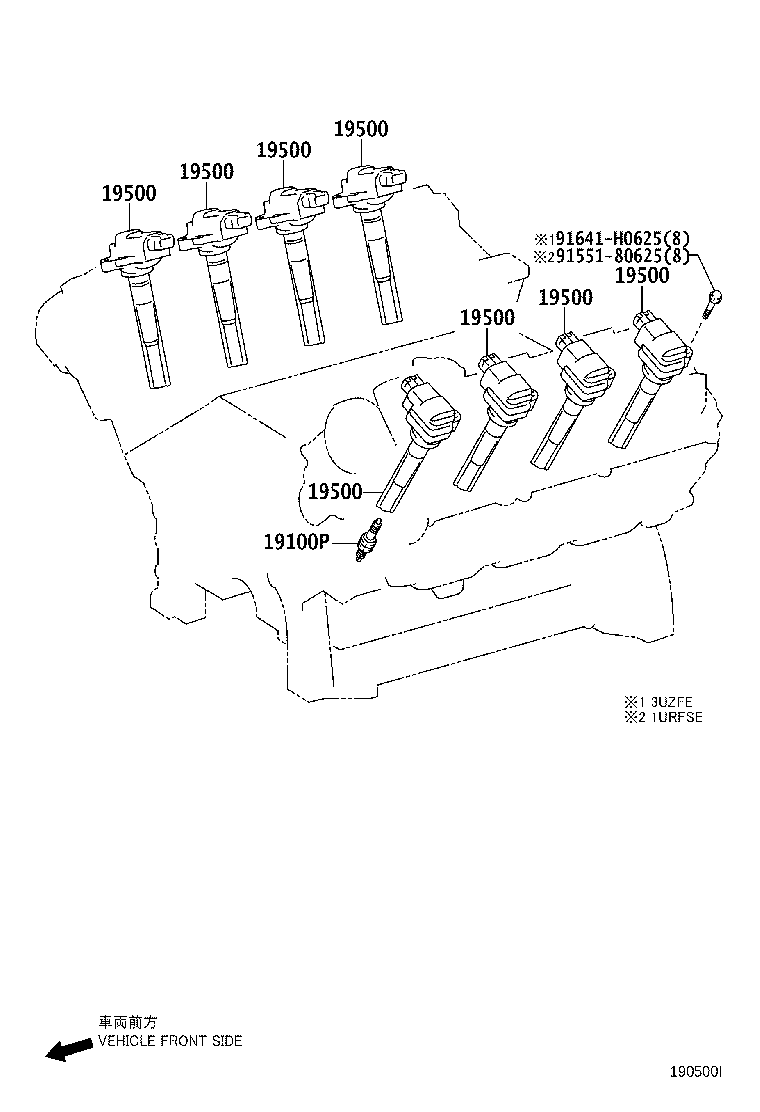

Figure 193264I 193264I 2005-08 → — Figure 190500I 190500I 2005-08 → 2007-09 Figure 190500I 190500I 2007-09 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
