Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 1 illustrations

Illustrations

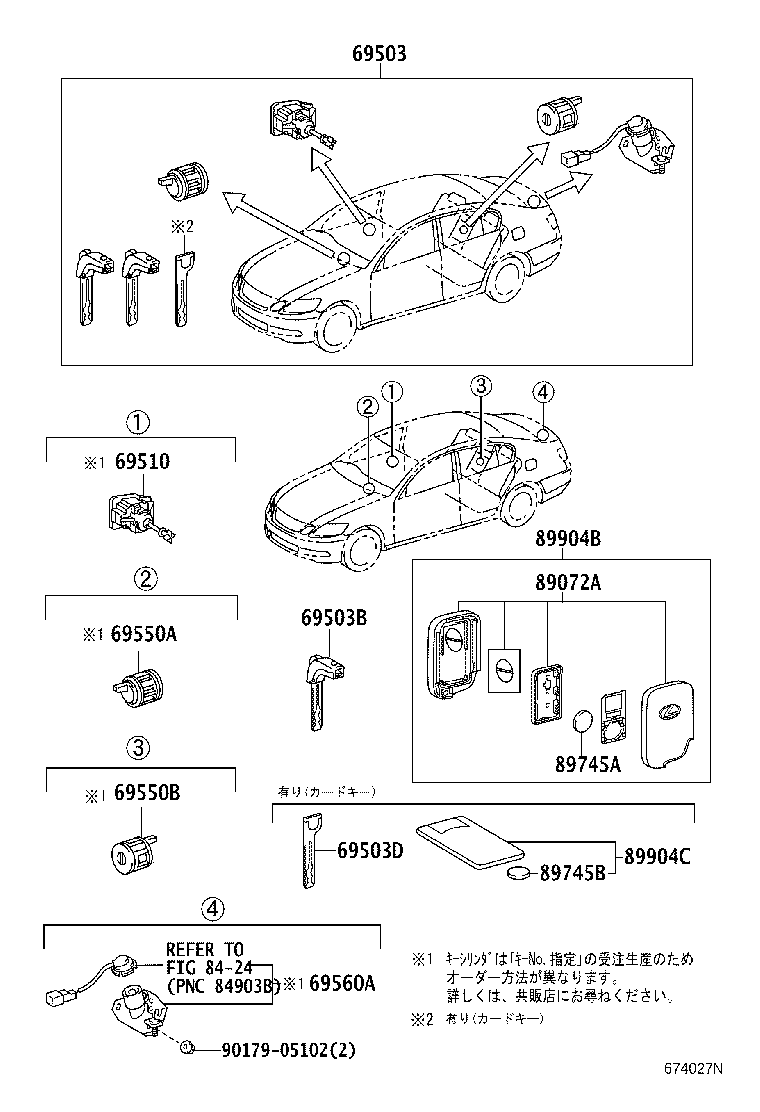

Figure 674027N 674027N 2005-08 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503B Key, Cut
69503D Key, Cut(CARD KEY)
69510 Cylinder Assy, Front Door Lock, RH
69550A Cylinder Assy, Glove Compartment Door Lock
69550B Cylinder Assy, Rear Seat Center Armrest Door Lock
69560A Cylinder Assy, Luggage Compartment Door Lock
89072A Housing Set, Door Control Transmitter
89745A Battery, Transmitter
89745B Battery, Transmitter(CARD KEY)
89904B Transmitter Sub-assy, Electrical Key
89904C Transmitter Sub-assy, Electrical Key(CARD KEY)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
