Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

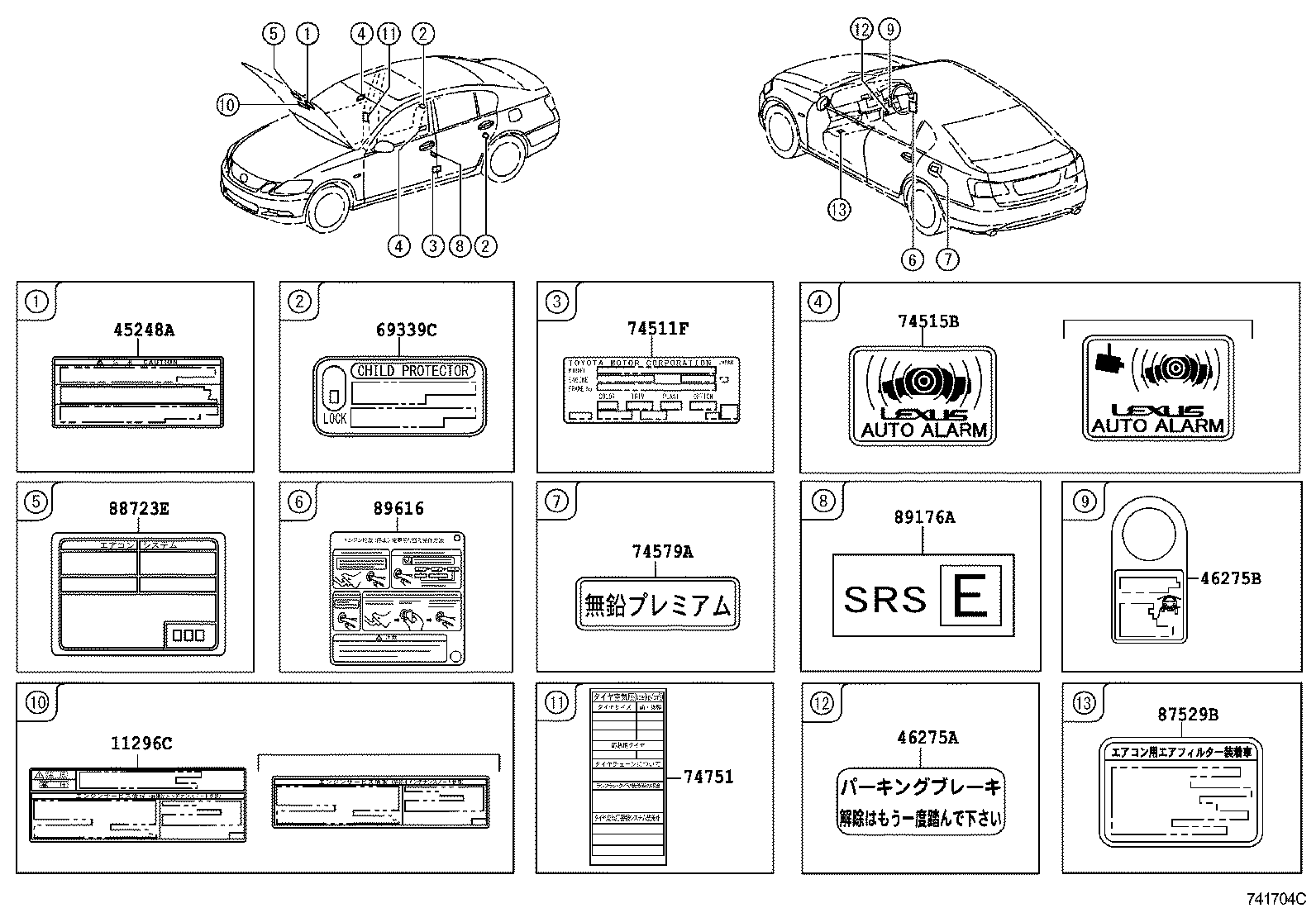

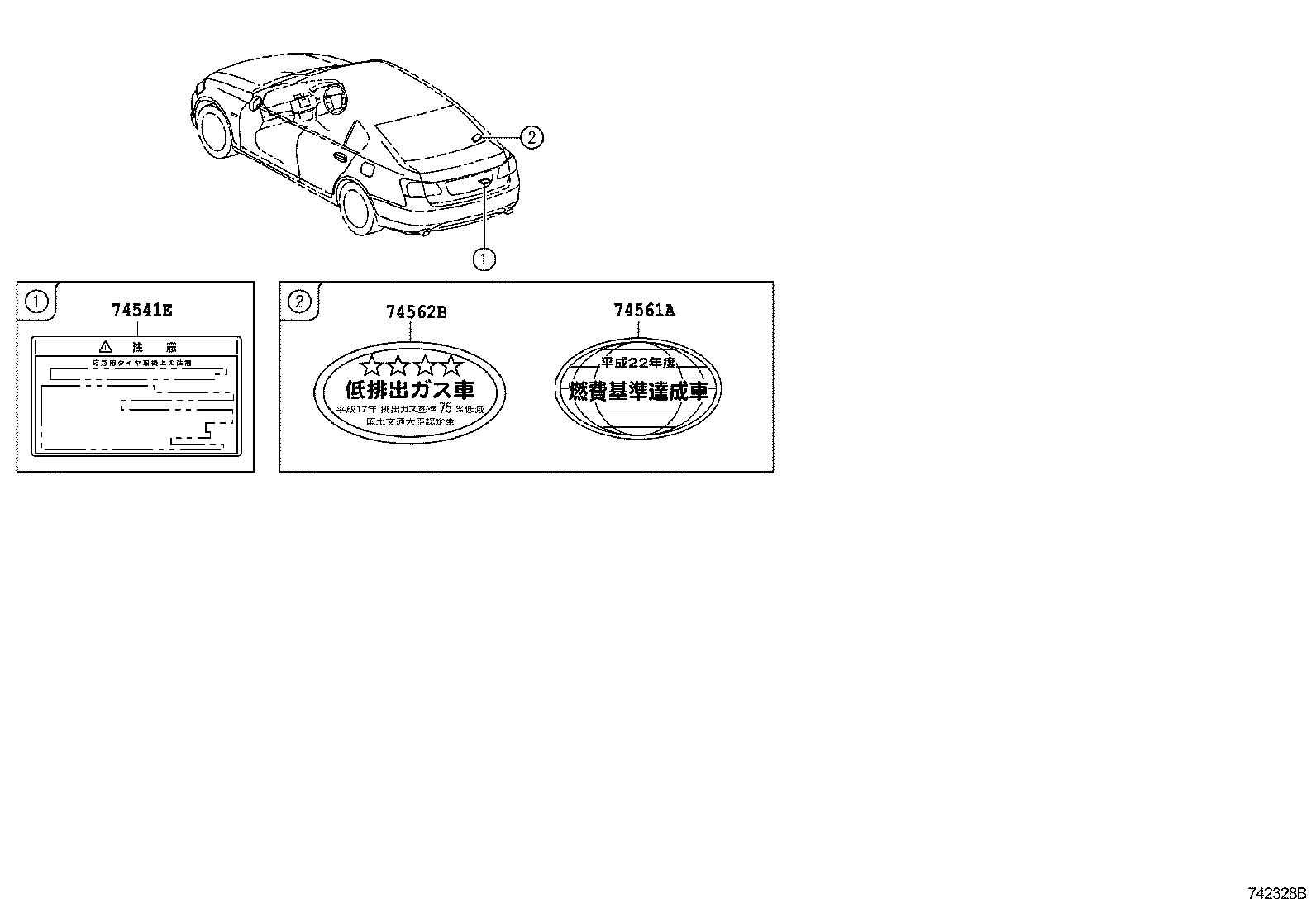

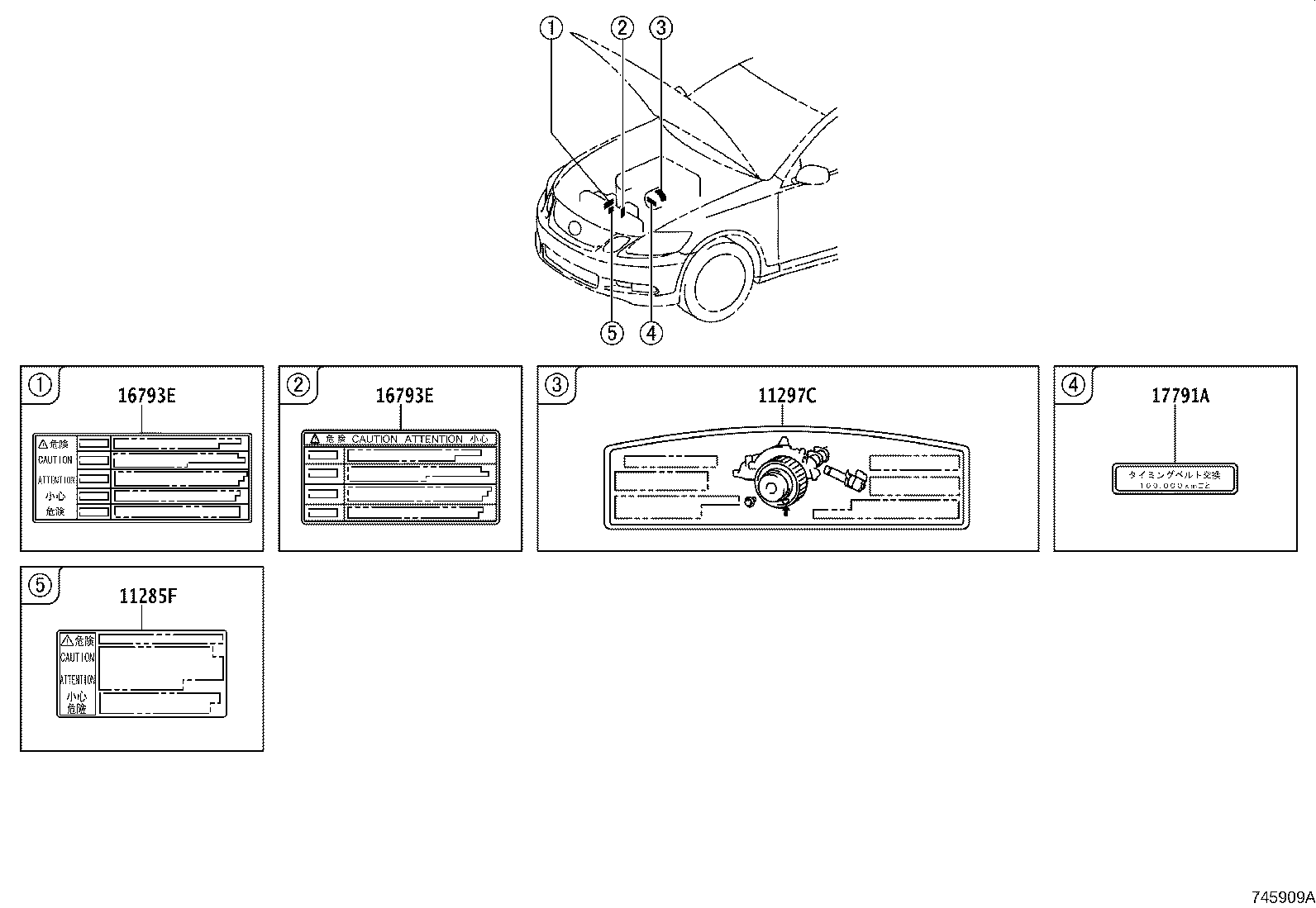

Figure 745909A 745909A 2005-08 → — Figure 741704C 741704C 2005-08 → — Figure 742328B 742328B 2005-08 → —

Part groups

PNCDescription
11285F Label, Coolant System Caution
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
16793E Label, Cooling Fan Caution
17791A Label, Maintenance Information
45248A Label, Steering Actuator Caution
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
