Toyota Lexus GS460/430/350
2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan
Supported model
Data version 2012-01
Battery & Battery Cable
11 part groups · 1 illustrations

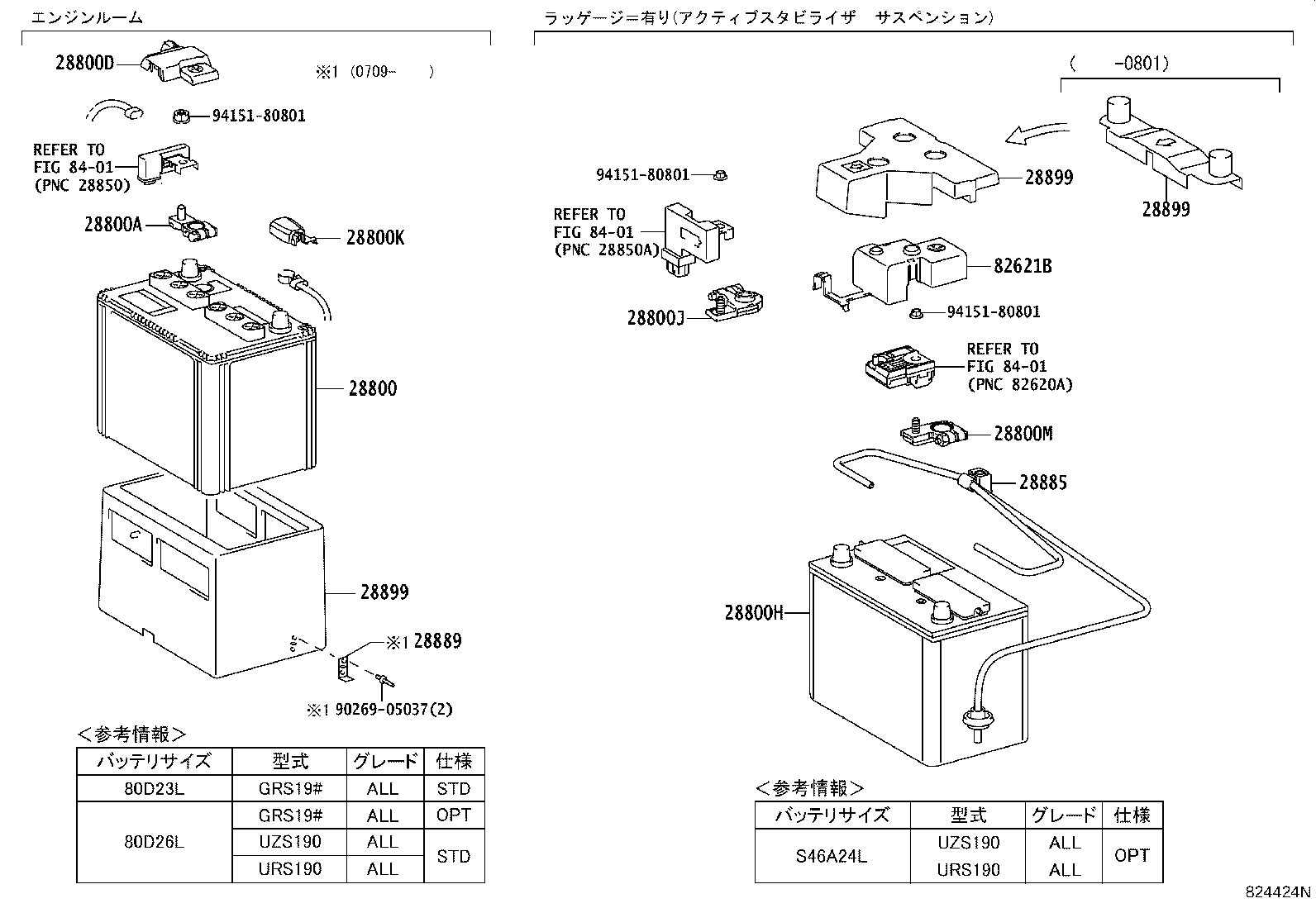

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800H | Battery, NO.2 |
| 28800J | Terminal, Battery Negative |
| 28800K | Cover, Connector(FOR BATTERY TERMINAL NEGATIVE) |
| 28800M | Terminal, Battery Positive |
| 28885 | Hose, Battery Room Ventilation |
| 28889 | Bracket, Battery Wire Clamp |
| 28899 | Insulator, Battery |
| 82621B | Cover, Fusible Link |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
