Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

3 part groups · 1 illustrations

Illustrations

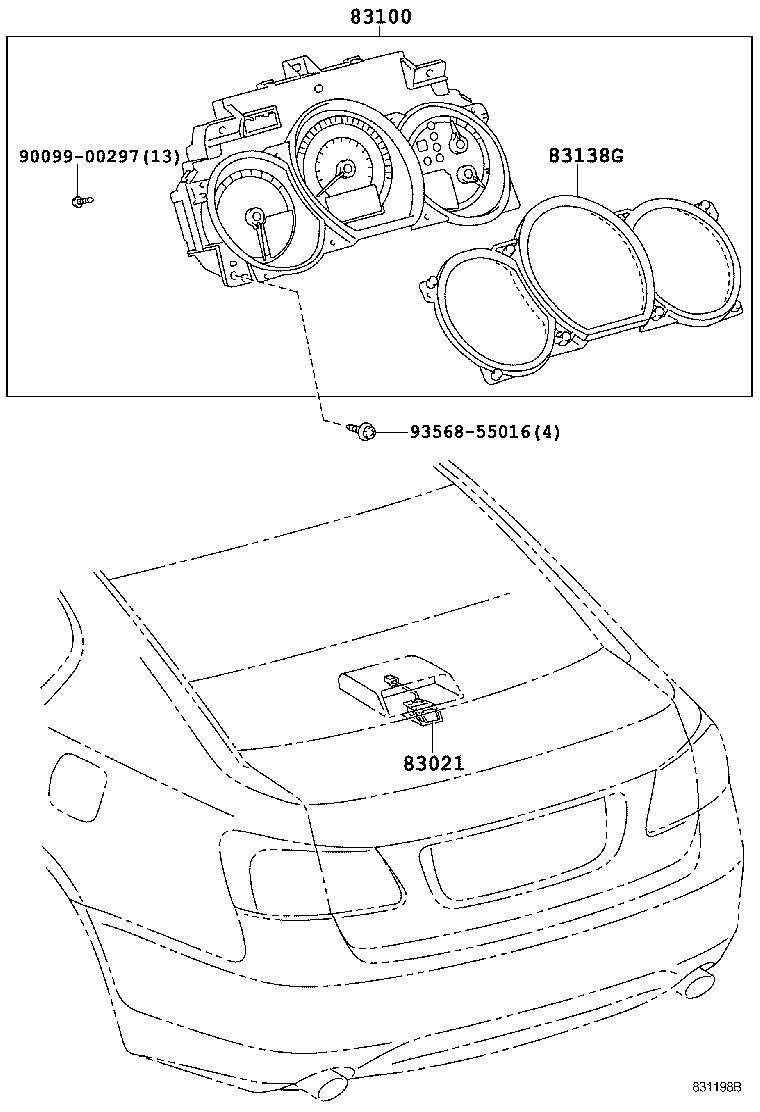

Figure 831119B 831119B 2005-08 → —

Part groups

PNCDescription
83021 Meter Set, Computer Combination
83100 Meter Assy, Combination
83138G Glass, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
