Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tire Pressure Warning System

6 part groups · 1 illustrations

Illustrations

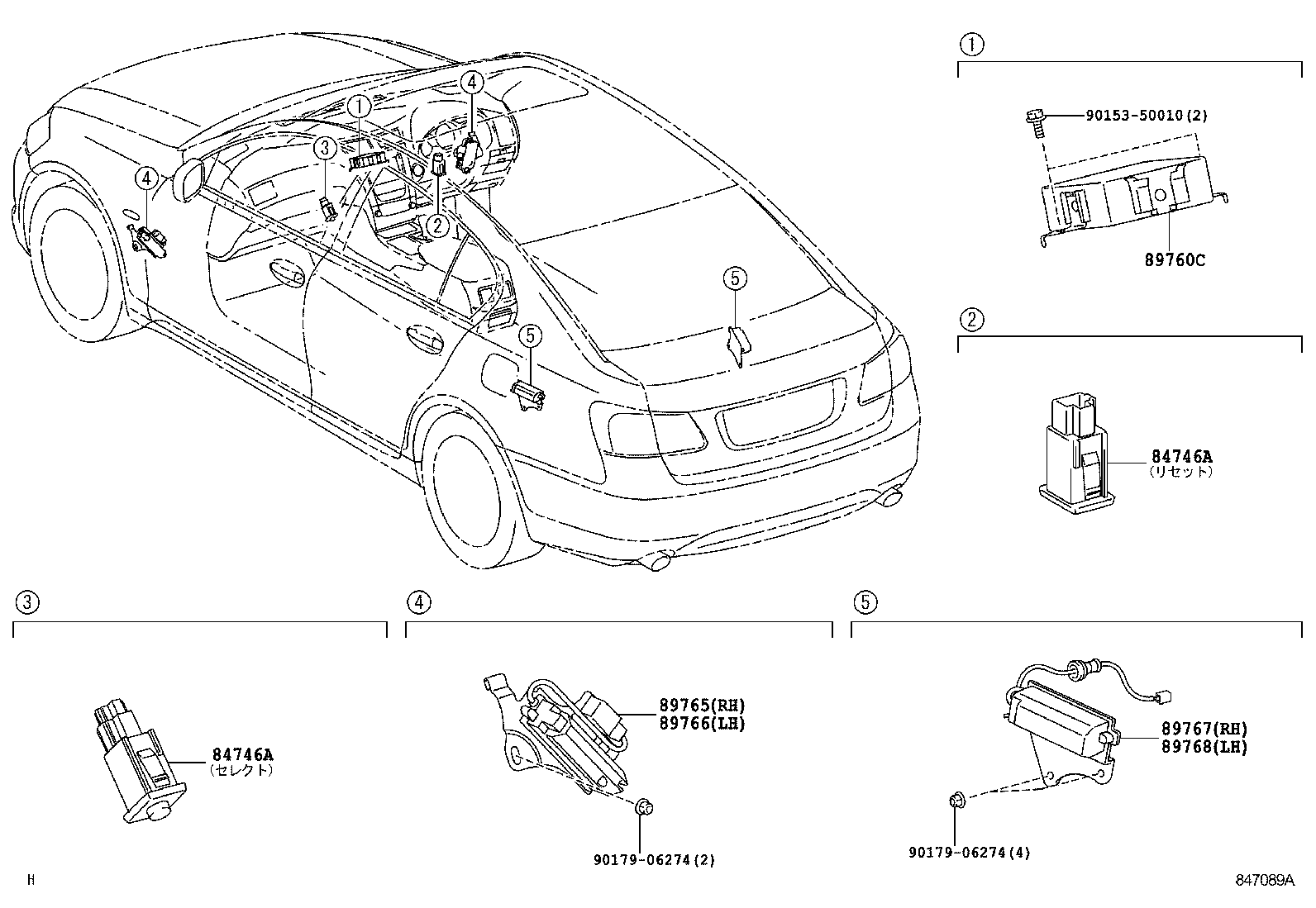

Figure 847089A 847089A 2005-08 → —

Part groups

PNCDescription
84746A Switch, Tire Pressure Warning, NO.1
89760C Receiver Assy, Tire Pressure Monitor
89765 Antenna, Tire Pressure, Front RH
89766 Antenna, Tire Pressure, Front LH
89767 Antenna, Tire Pressure, Rear RH
89768 Antenna, Tire Pressure, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
