Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 2 illustrations

Illustrations

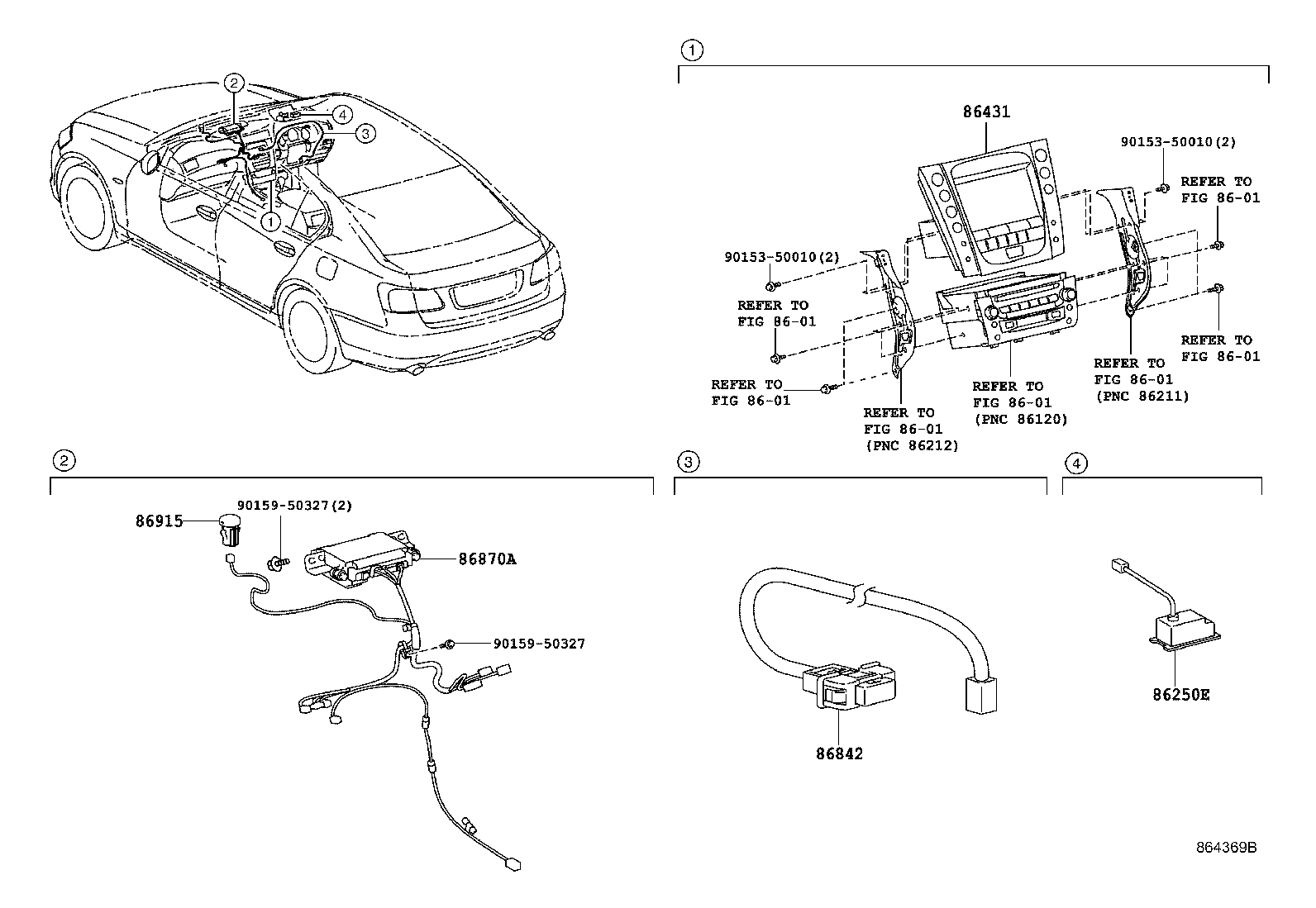

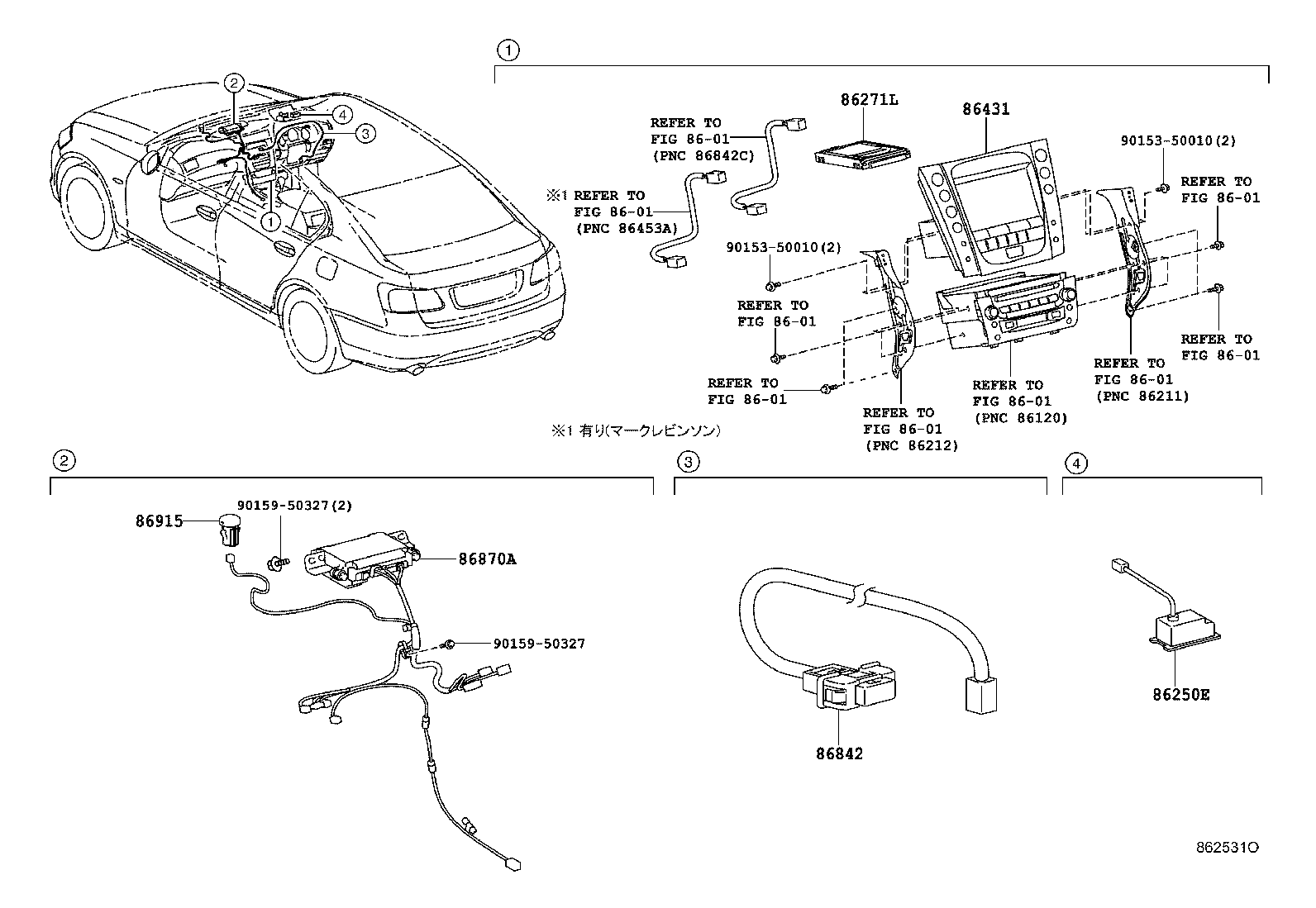

Figure 862531O 862531O 2005-08 → 2009-09 Figure 864369B 864369B 2009-09 → —

Part groups

PNCDescription
86250E Microphone Assy, Amplifier
86271L Hard Disc
86431 Display, Display & Navigation Module
86842 Wire, Navigation, NO.1
86870A Antenna Assy, Gps & Vics
86915 Transceiver, Optical Beacon
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
