Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 3 illustrations

Illustrations

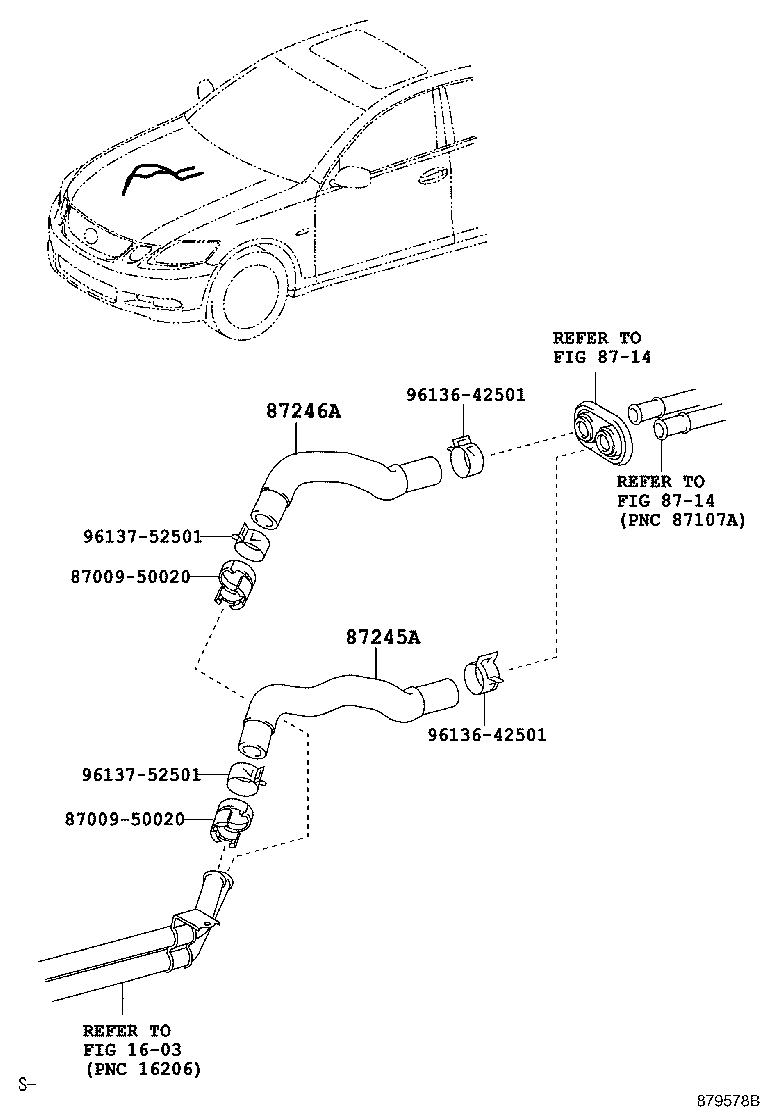

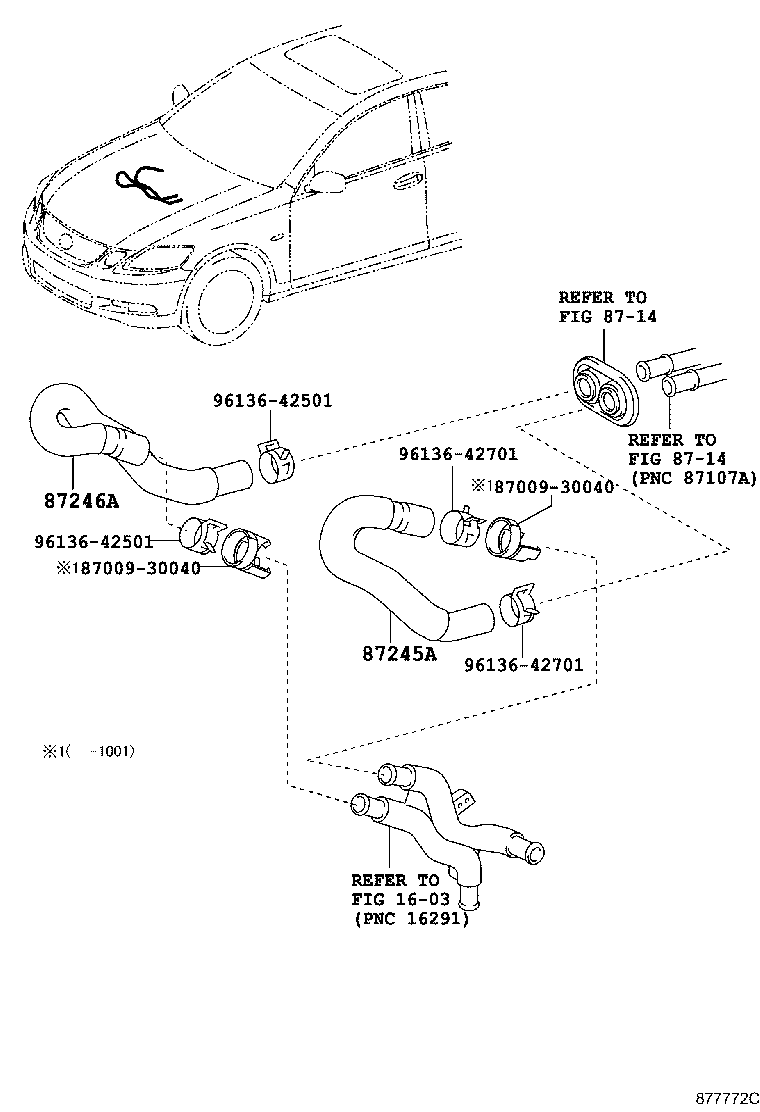

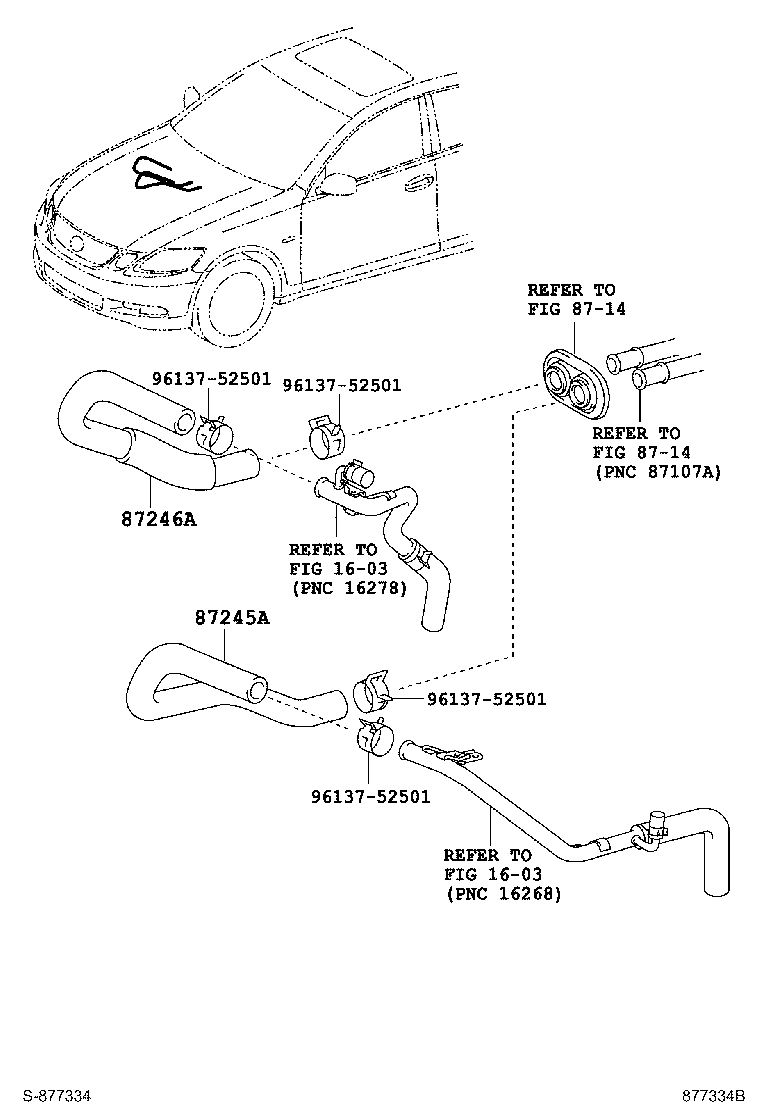

Figure 877334B 877334B 2005-08 → 2007-09 Figure 879578B 879578B 2007-09 → — Figure 877772C 877772C 2005-08 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
