Toyota Lexus GS460/430/350

2005-08 → 2011-12 · chassis GRS19#,UZS190,URS190 · catalogue 3321A0 · Japan

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

9 part groups · 3 illustrations

Illustrations

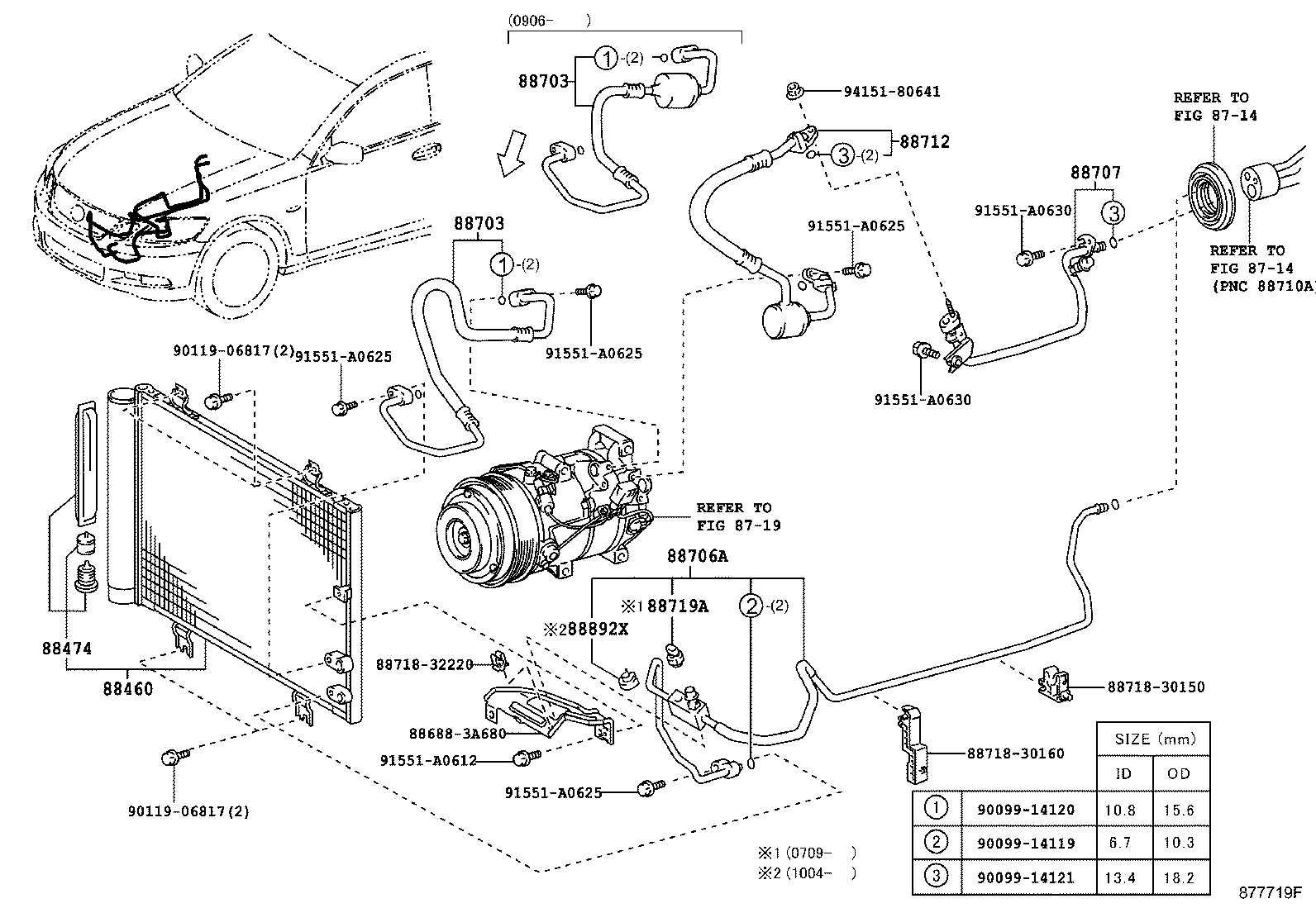

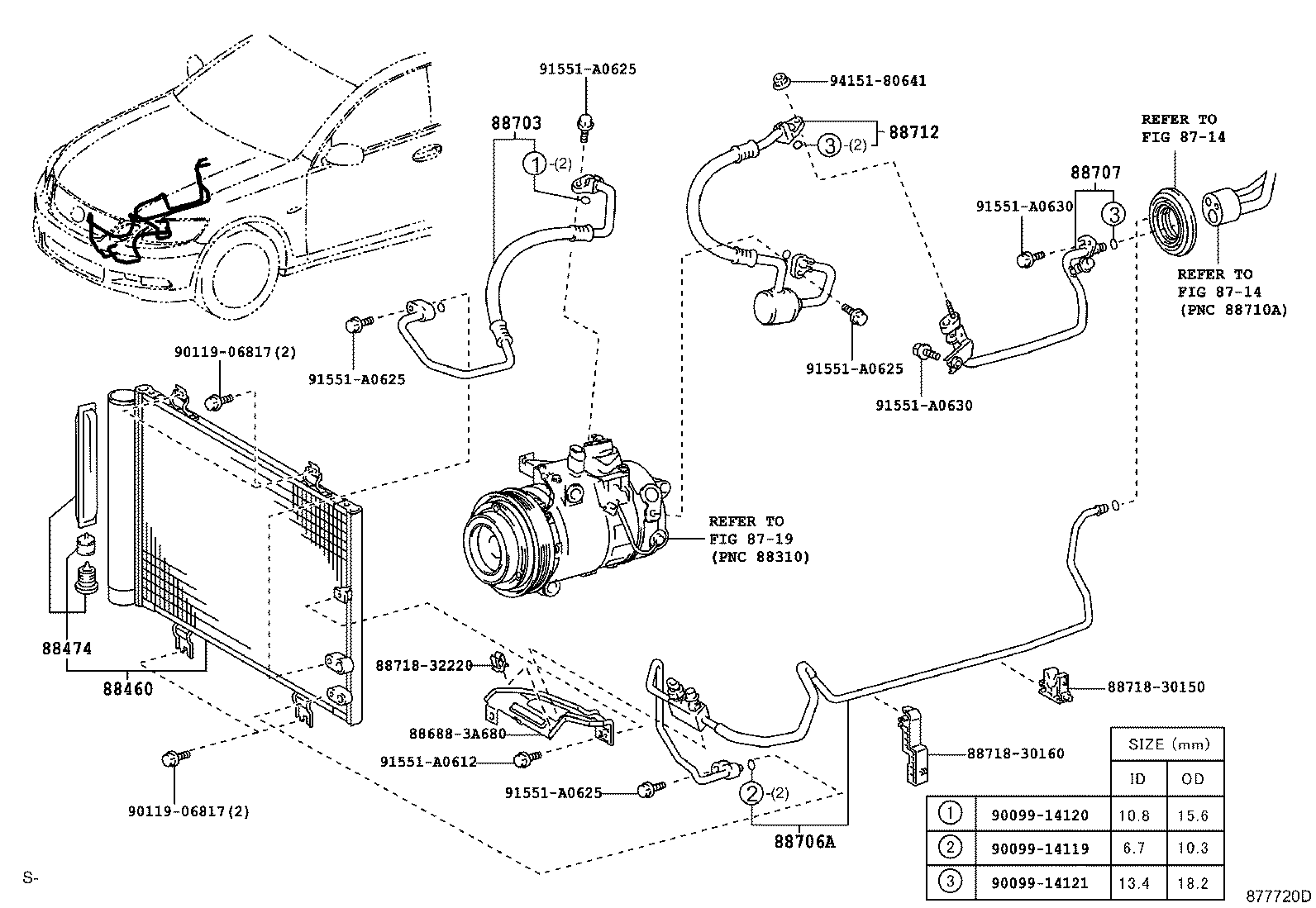

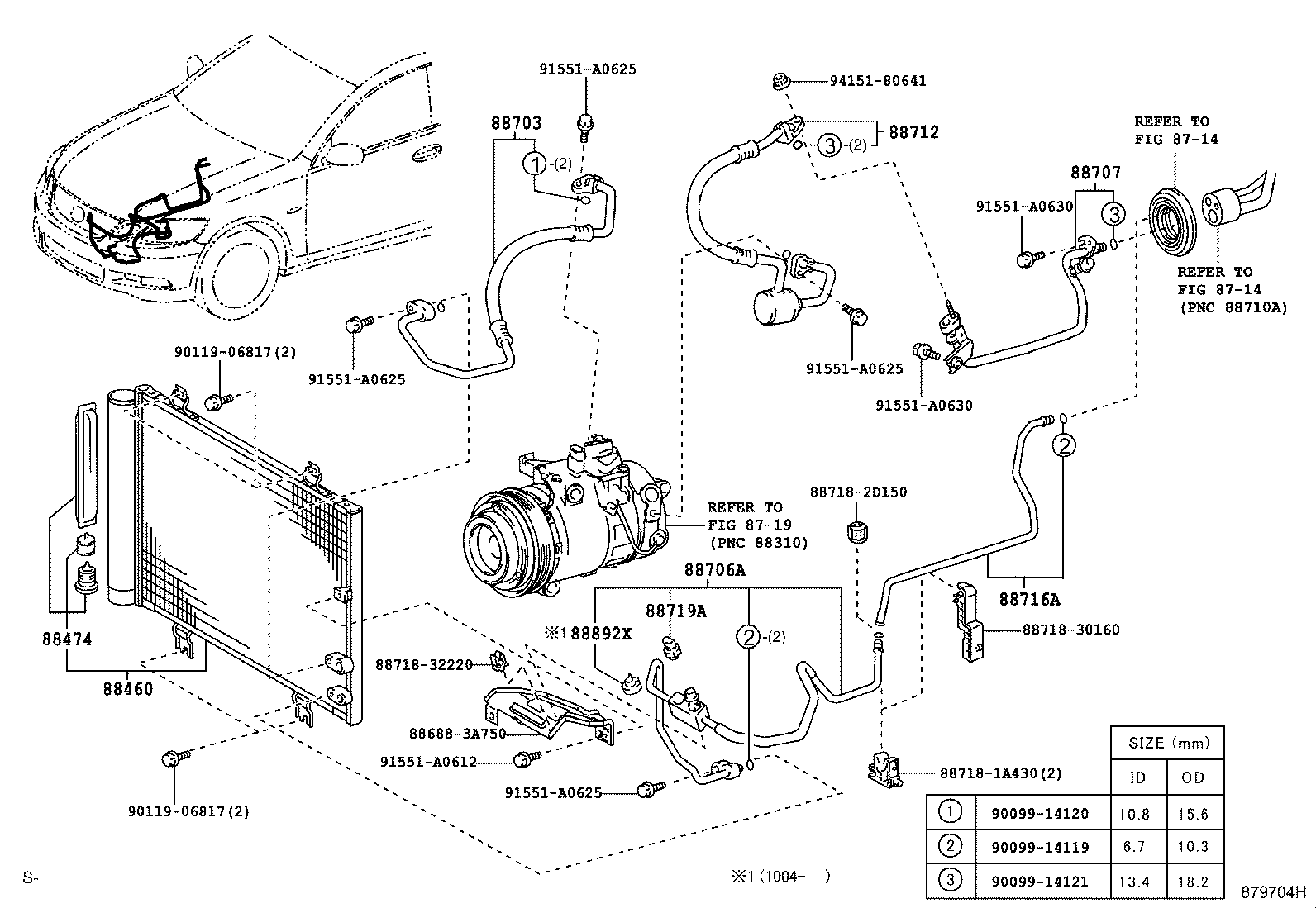

Figure 877719F 877719F 2005-08 → — Figure 877720D 877720D 2005-08 → 2007-09 Figure 879704H 879704H 2007-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
