Toyota Lexus GS Series

2011-12 → 2020-07 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3321B0 · Japan

Supported model Data version 2021-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

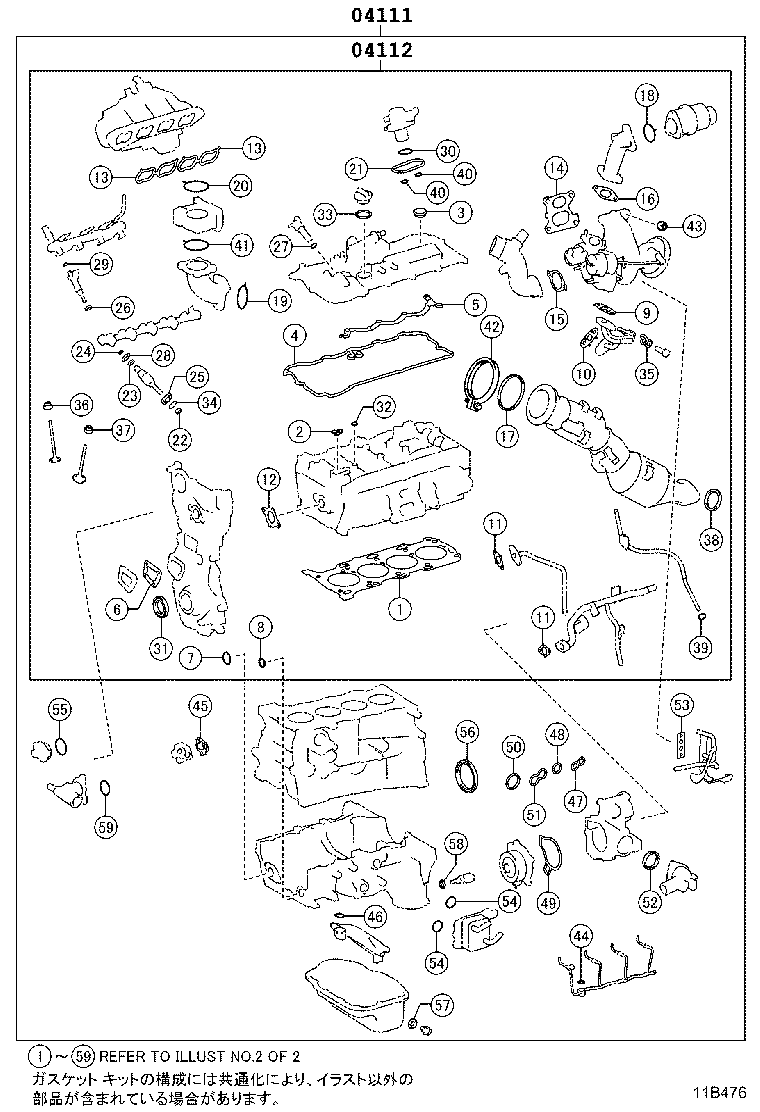

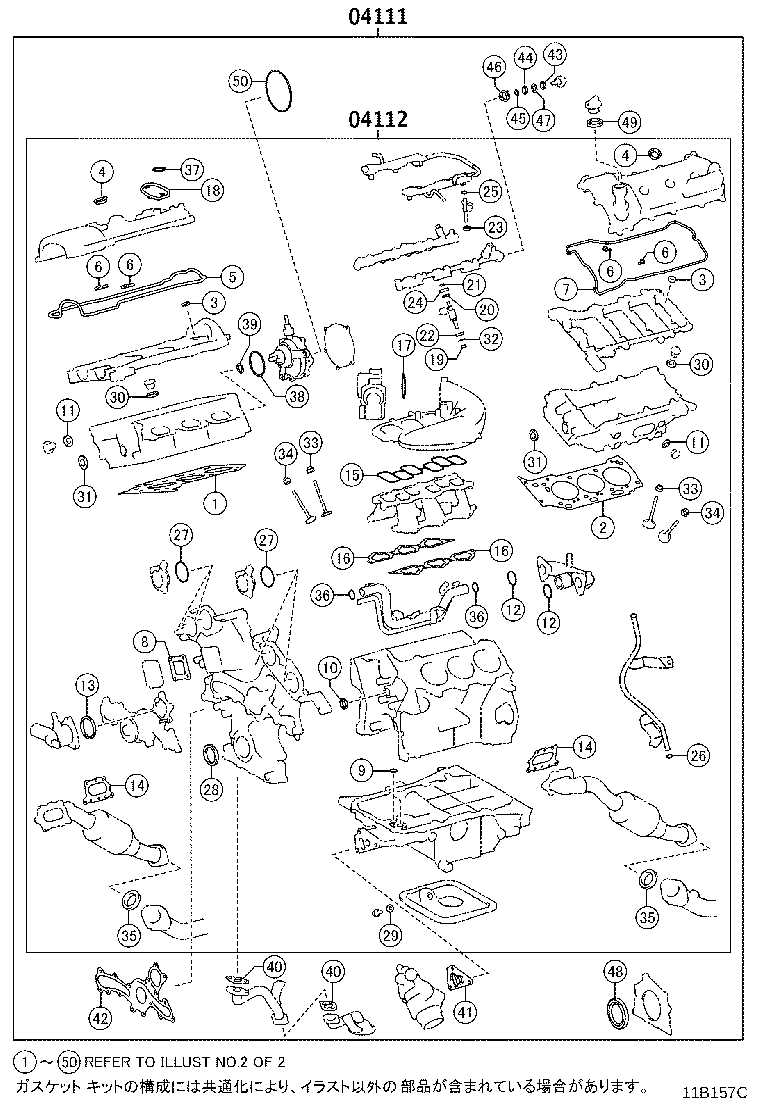

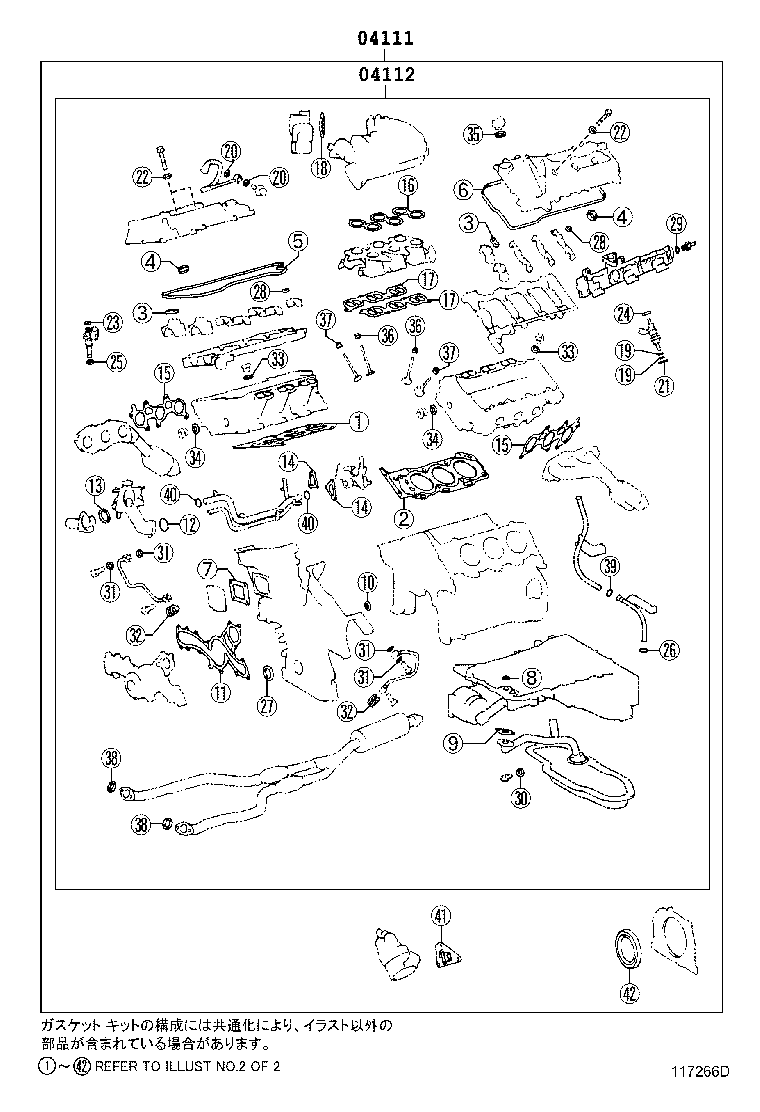

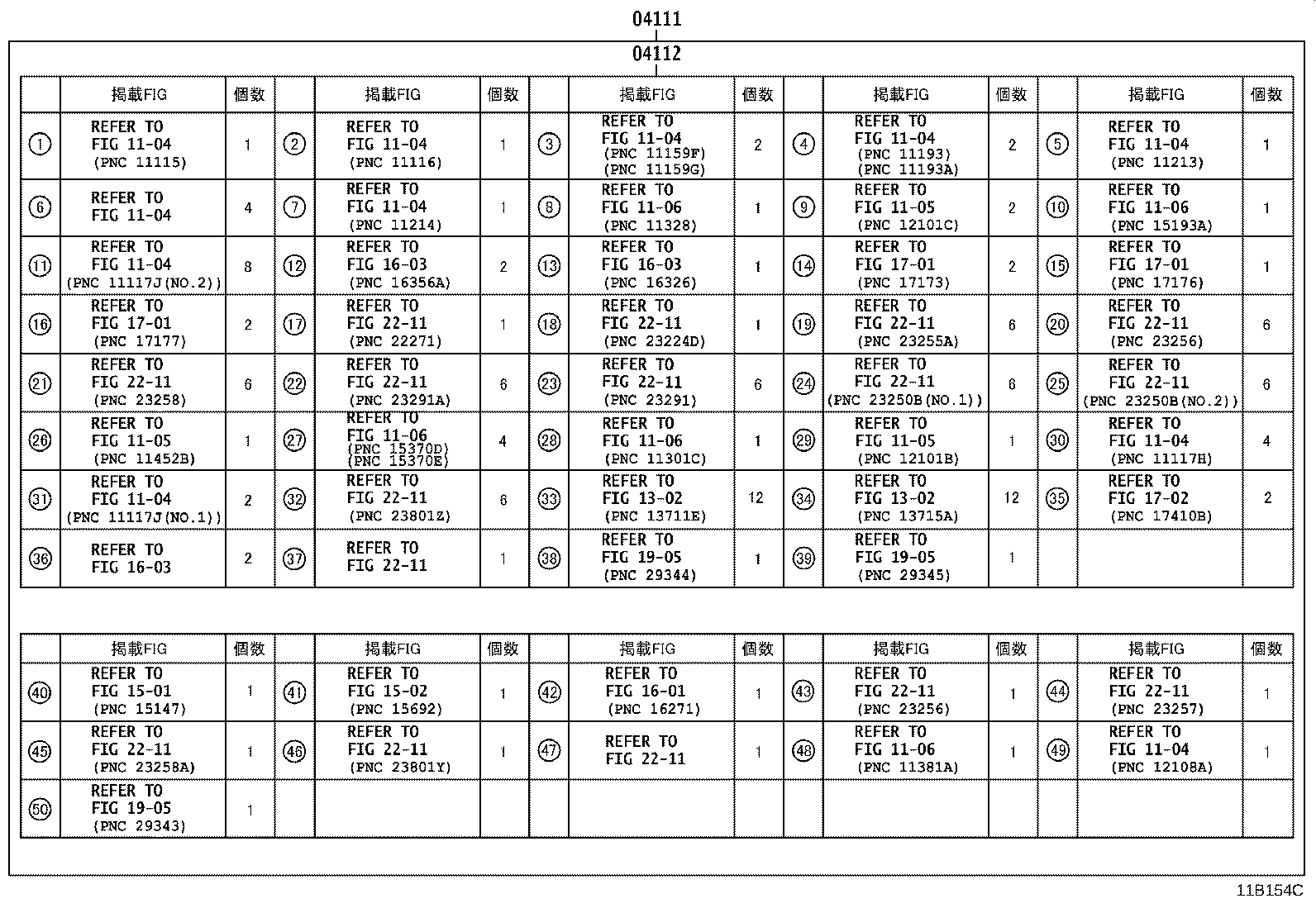

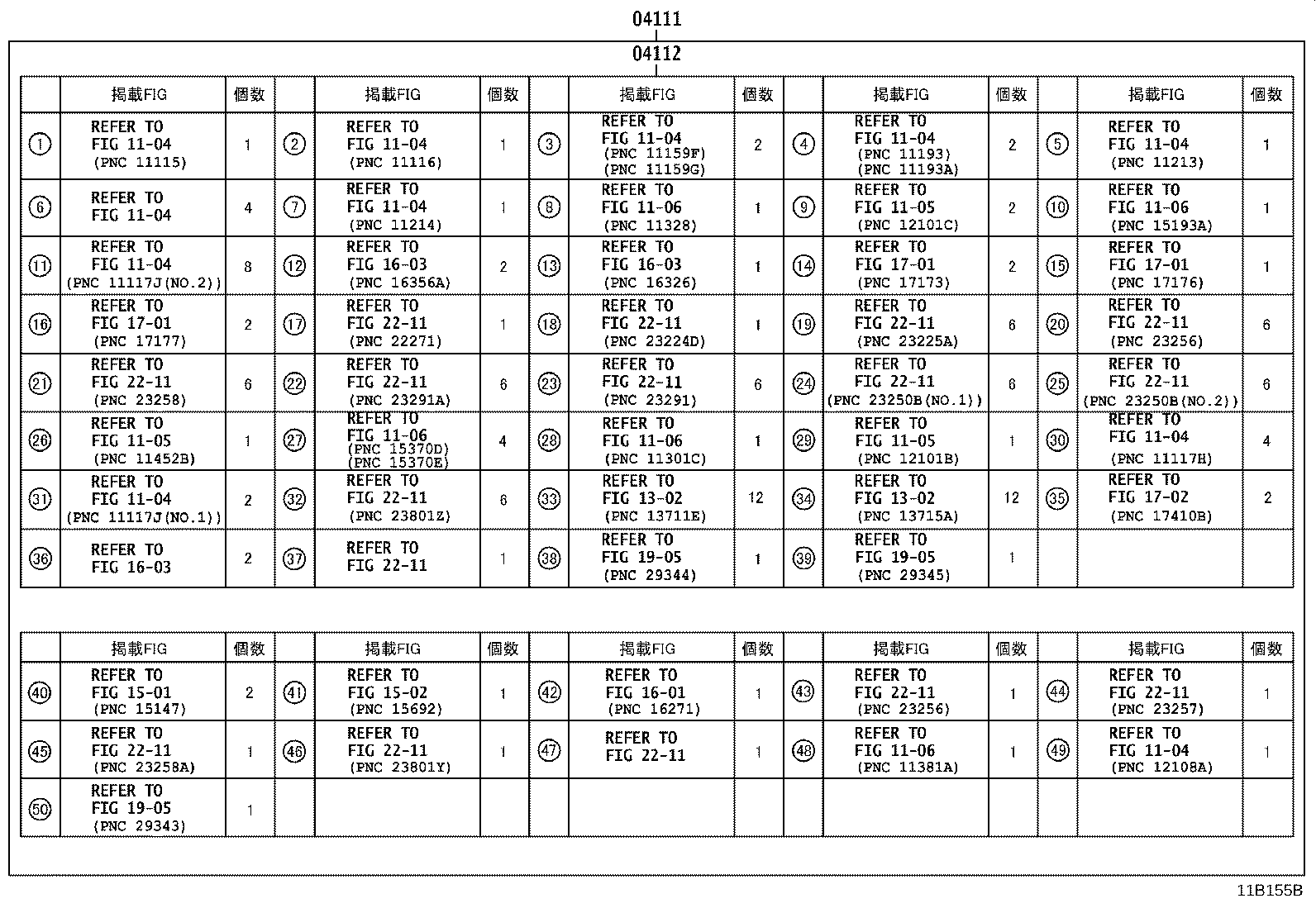

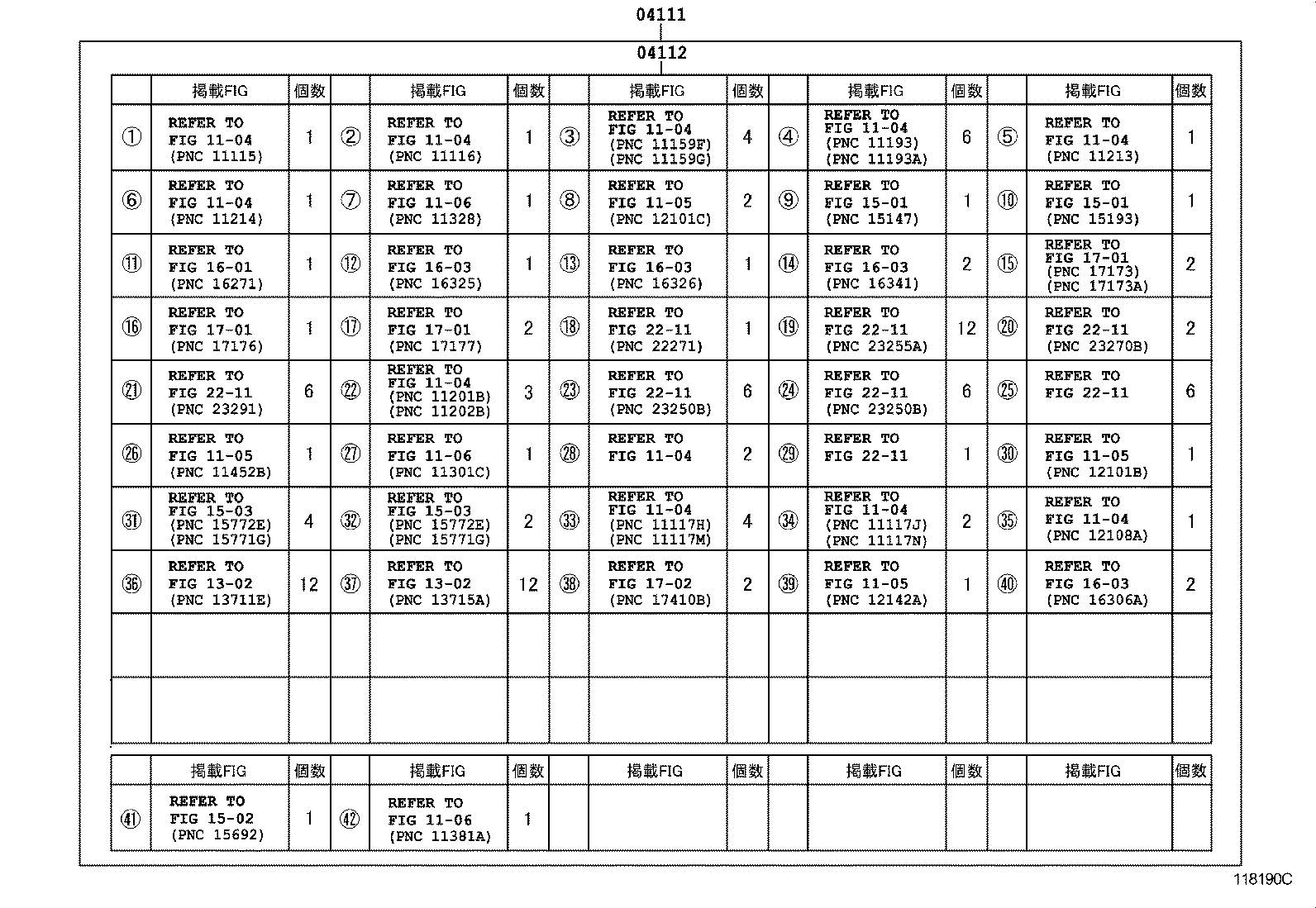

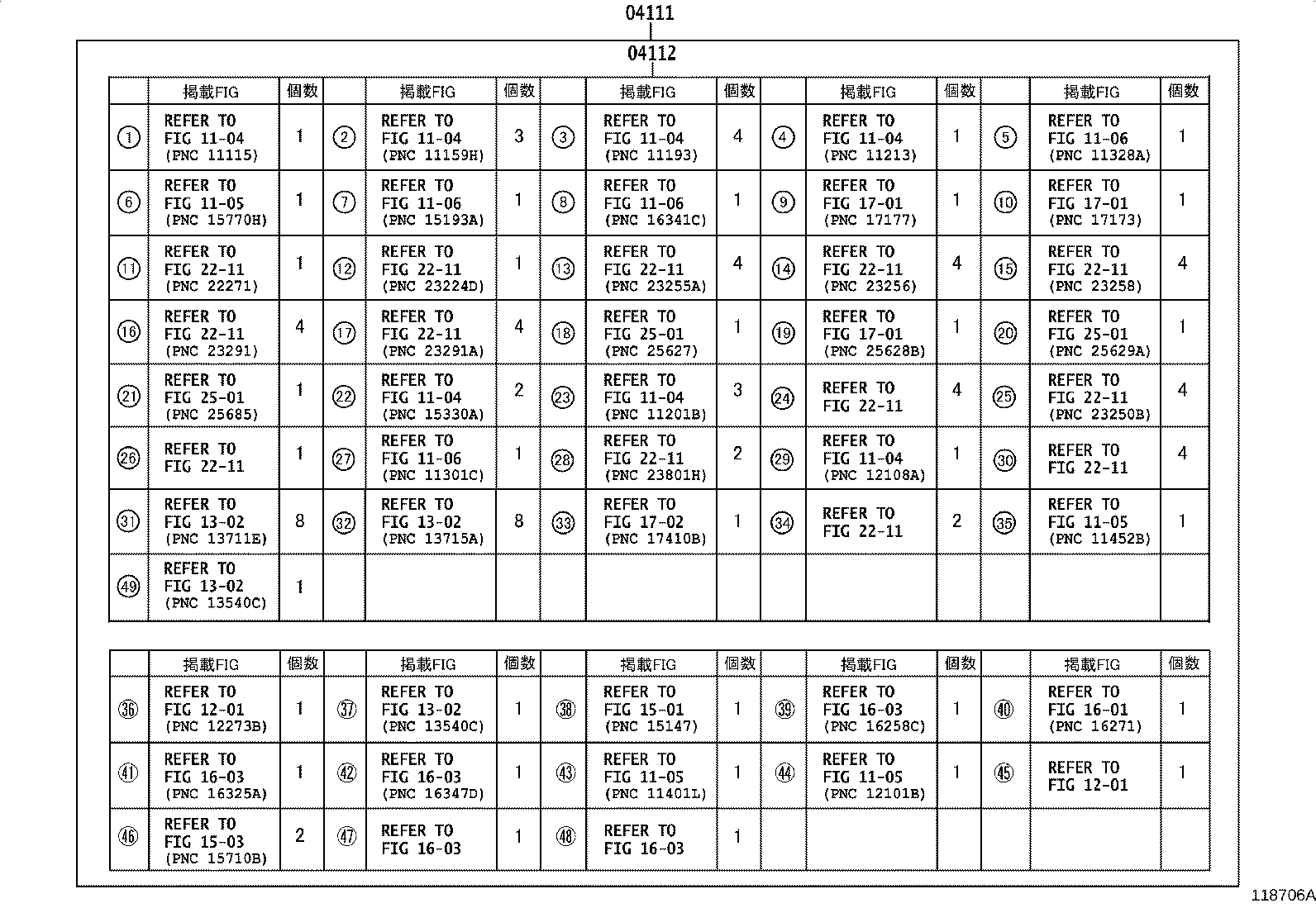

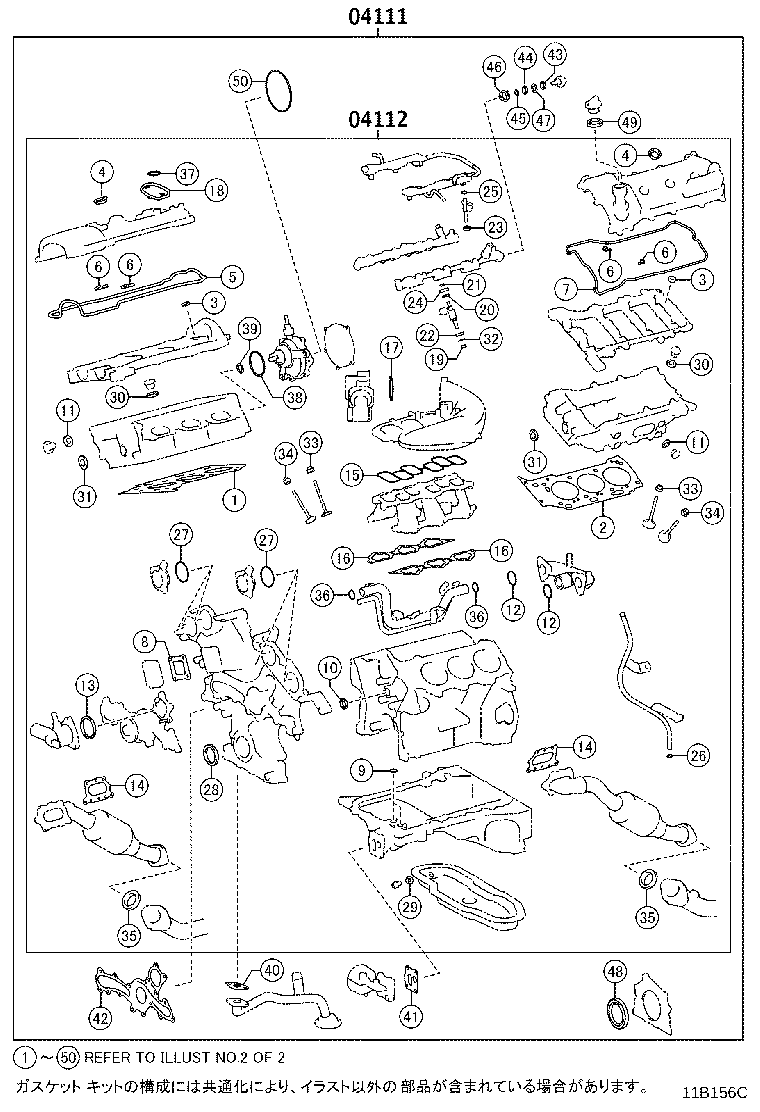

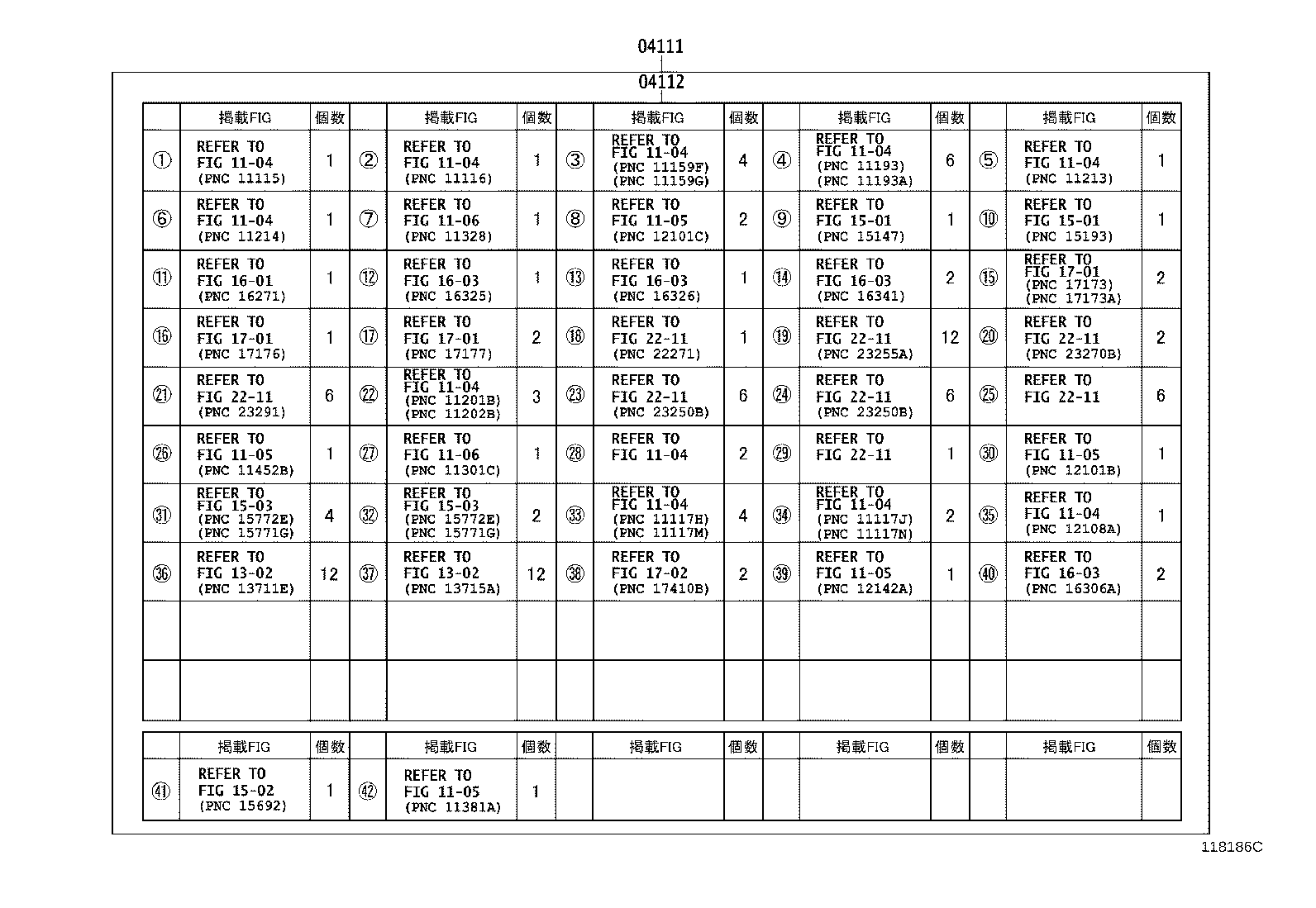

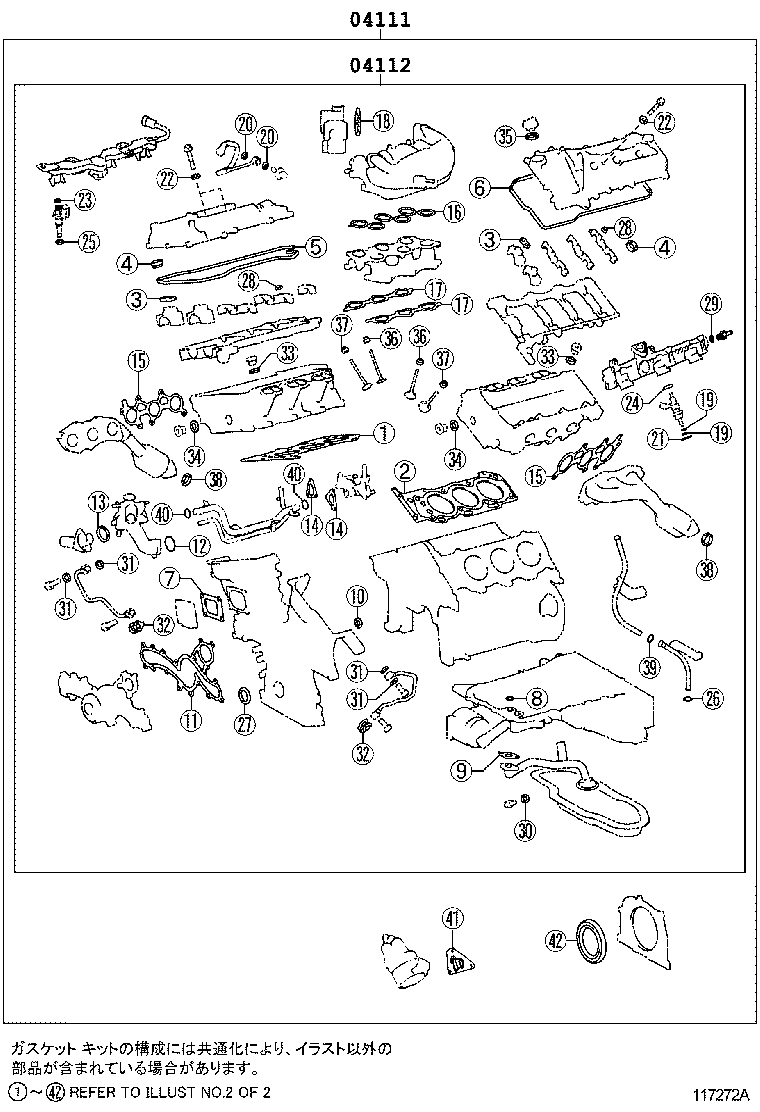

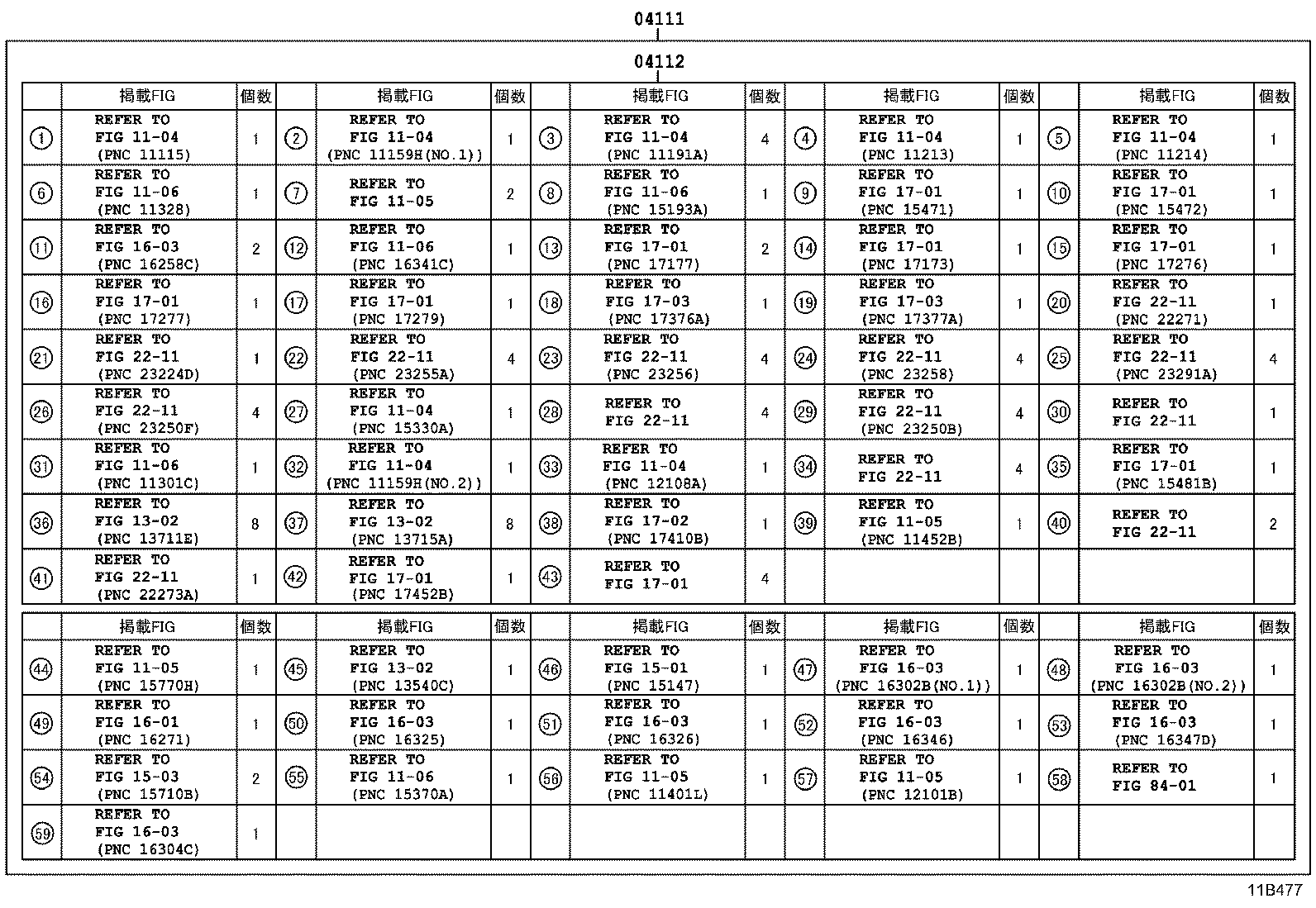

Figure 118705C 118705C 2013-09 → — Figure 11B476 11B476 2016-09 → — Figure 118706A 118706A 2013-09 → — Figure 11B477 11B477 2016-09 → — Figure 117272A 117272A 2011-12 → 2015-10 Figure 117272A 117272A 2011-12 → — Figure 118186C 118186C 2011-12 → 2015-10 Figure 118186C 118186C 2011-12 → — Figure 117266D 117266D 2011-12 → 2015-10 Figure 118190C 118190C 2011-12 → 2015-10 Figure 11B156C 11B156C 2015-10 → — Figure 11B154C 11B154C 2015-10 → — Figure 11B157C 11B157C 2015-10 → — Figure 11B155B 11B155B 2015-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
